Brand: Maretron

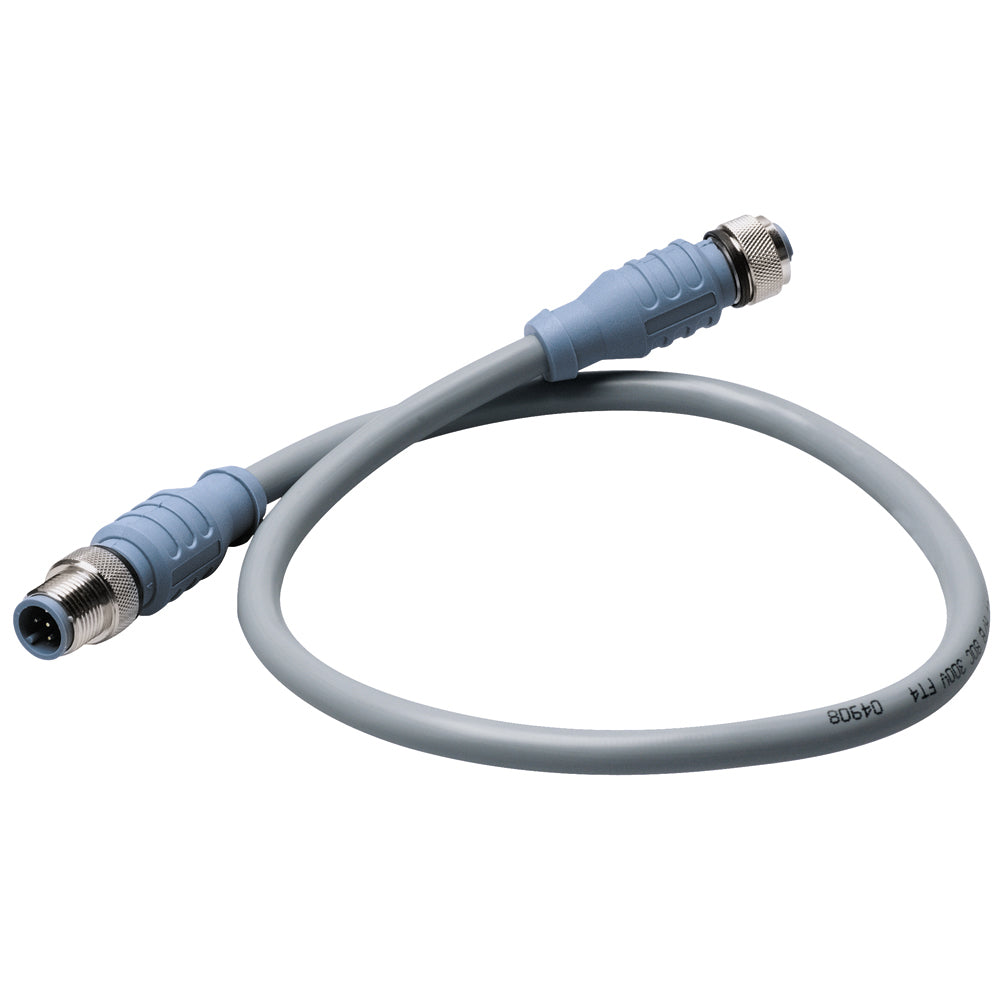

Maretron NMEA 2000 Micro Double-Ended Cordset, 3 Meter
Maretron NMEA 2000 Micro Double-Ended Cordset, 3 Meter
8 available
About this product
This Maretron Micro double-ended cordset is designed for NMEA 2000 backbone and drop cable applications, providing a reliable 3-meter connection. Built for demanding marine environments, it features 4-conductor construction with triple-layer foil shielding to ensure signal integrity.
- Length: 3 meters
- Connectors: NMEA 2000 Micro
- Electrical Rating: 4.0 Amps, 250 Volts
- Construction: Brass connectors with gold plating and nickel-plated coupling nuts
- Cable Material: PVC outer jacket with HDPE and SRPVC insulation
- Environmental Protection: IEC IP68, NEMA 1, 3, 4, and 6P rated
- Operating Temperature: -40°F to 176°F (-40°C to 80°C)
- Certifications: NMEA 2000 approved, UL PLTC 75°C sunlight resistant, and CSA CMX-OUTDOOR-CMG certified
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-100952
- Model / MPN
- CM-CG1-CF-03.0
- UPC / GTIN
- 873804001531
- Package dimensions (H × W × L)
- 1" X 7" X 8"
- Package weight
- 0.48 lb
- Country of origin
- MEXICO
Specifications
- Data Interface
- NMEA 2000
- Cable Length (Meters)
- 3m
- NMEA 2000 Connectors
- Backbone/Drop Cables
