Brand: Maretron

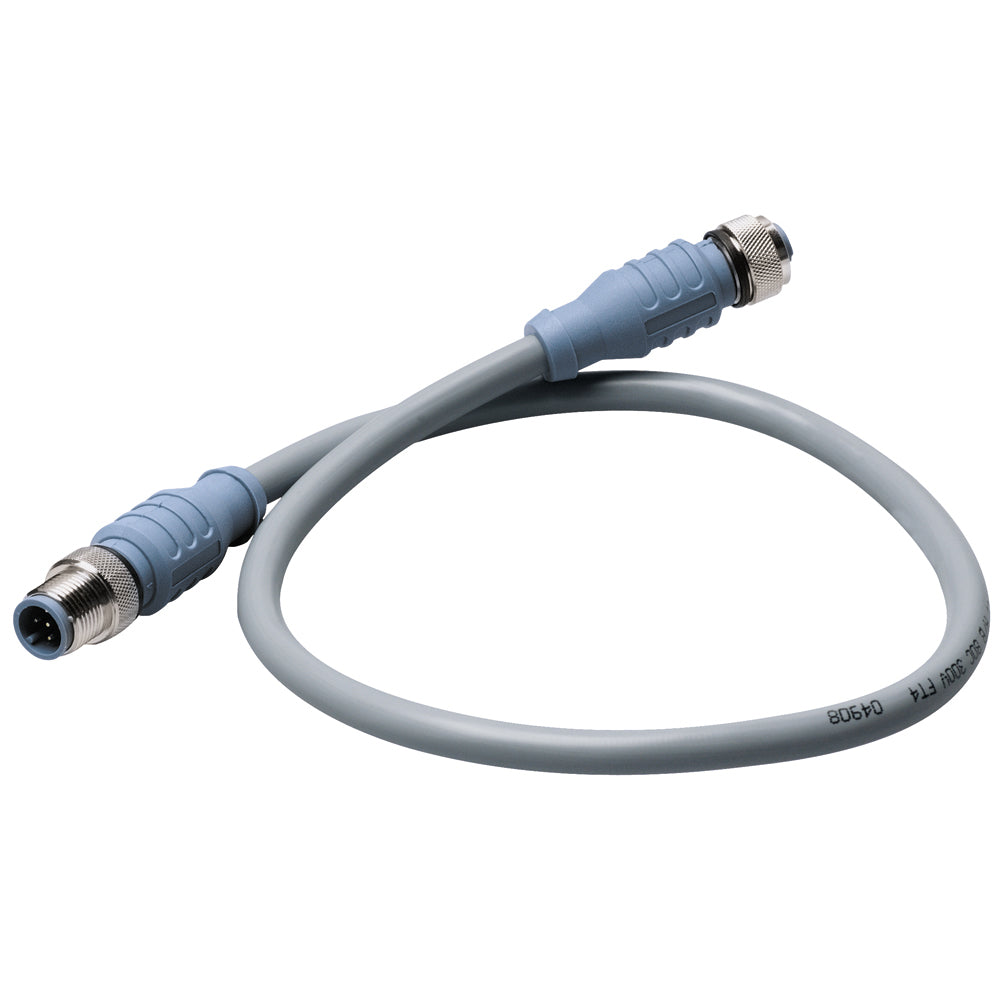

Maretron Micro Double-Ended NMEA 2000 Cordset, 6 Meter
Maretron Micro Double-Ended NMEA 2000 Cordset, 6 Meter
Sold out
About this product
This Maretron Micro double-ended cordset is designed for use as an NMEA 2000 backbone or drop cable. It features a male-to-female connection and measures 6 meters in length.
- Connectors: Male-to-female with brass/gold contacts and nickel-plated brass coupling nuts.
- Cable Construction: PVC gray jacket with 4x 22 AWG conductors and an additional 22 AWG drain wire.
- Shielding: 3-level shielding with overall, power pair, and data pair foil.
- Electrical Specs: 4.0 Amps current rating and 250V voltage rating.
- Environmental Protection: IEC IP68, NEMA 1, 3, 4, and 6P rated for marine conditions.
- Temperature Range: -40°F to 176°F (-40°C to 80°C).
- Approvals: NMEA 2000 approved; UL listed (PLTC 75°C sunlight resistant, AWM 80°C 300V); CSA certified (CMX-OUTDOOR-CMG, AWM I/II A/B 80°C 300V FT4).
- Dimensions: 0.59 in. connector outside diameter.
Manufacturer Part Number: CM-CG1-CF-06.0
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-100953
- Model / MPN
- CM-CG1-CF-06.0
- UPC / GTIN
- 873804001562
- Package dimensions (H × W × L)
- 2" X 8" X 8"
- Package weight
- 0.91 lb
- Country of origin
- MEXICO
Specifications
- Data Interface
- NMEA 2000
- Connection Gender
- Male-Female
- Cable Length (Meters)
- 6m
- NMEA 2000 Connectors
- Backbone/Drop Cables
