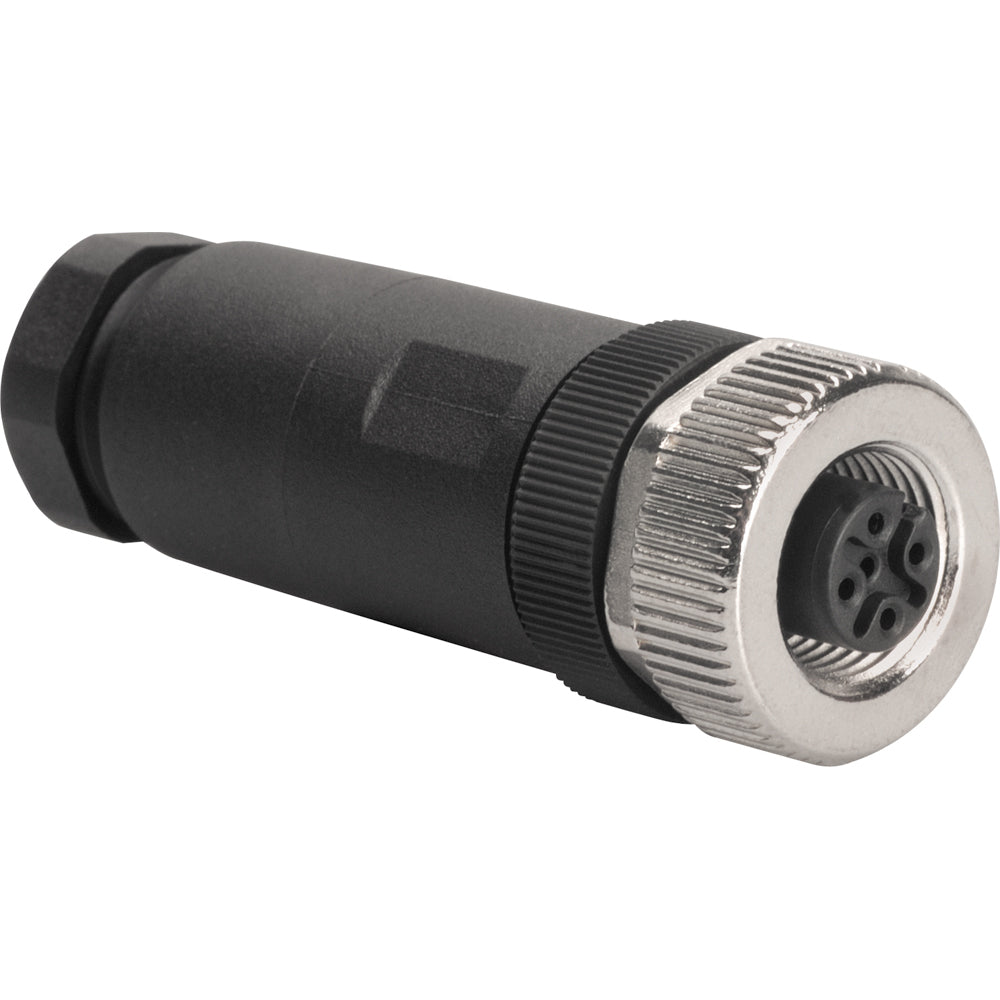

Maretron Micro Field-Attachable Female NMEA 2000 Connector, IP67 Rated

Build and customize your NMEA 2000 network with precision and reliability using the Maretron FA-CF-ST Micro Field-Attachable Female Connector. Designed for marine environments, this robust connector allows for on-site termination of bulk cable, offering unparalleled flexibility in system layout. Its intuitive design ensures a secure, error-free connection to keep your vessel's electronics communicating seamlessly. Enhance your marine network's integrity with Maretron's trusted solution today.

Key Benefits & Features:

• NMEA 2000 Approved: Guarantees full compatibility and reliable integration within your NMEA 2000 certified marine electronic systems.
• Field-Attachable Design: Enables custom cable lengths and on-site repairs, providing maximum versatility for any installation scenario.
• Color-Coded Screw Terminals: Simplifies wiring and reduces installation errors by matching standard NMEA 2000 cable color codes.
• Rugged Marine Construction: Features a durable nylon housing with brass/gold plated contacts and a nickel-plated brass coupling nut, engineered to withstand harsh marine conditions.
• IP67 Waterproof Rating: Ensures complete protection against dust and water immersion, maintaining performance even in challenging environments.
• Wide Operating Temperature: Functions reliably across extreme temperatures from -40°F to 185°F (-40°C to 85°C).
• High Power Capacity: Rated for 4.0 Amps and 30V AC/36V DC, suitable for powering various NMEA 2000 devices.

Specifications:

• Housing Material: Nylon (Black)
• Contact Material: Brass (Gold Plated)
• Coupling Nut Material: Brass (Nickel Plated)
• Max Wire Size: 18 AWG (1.02 mm)
• Cable Grip Range: 6-8 mm
• Approvals: NMEA 2000, IEC-61162-3
