Maretron

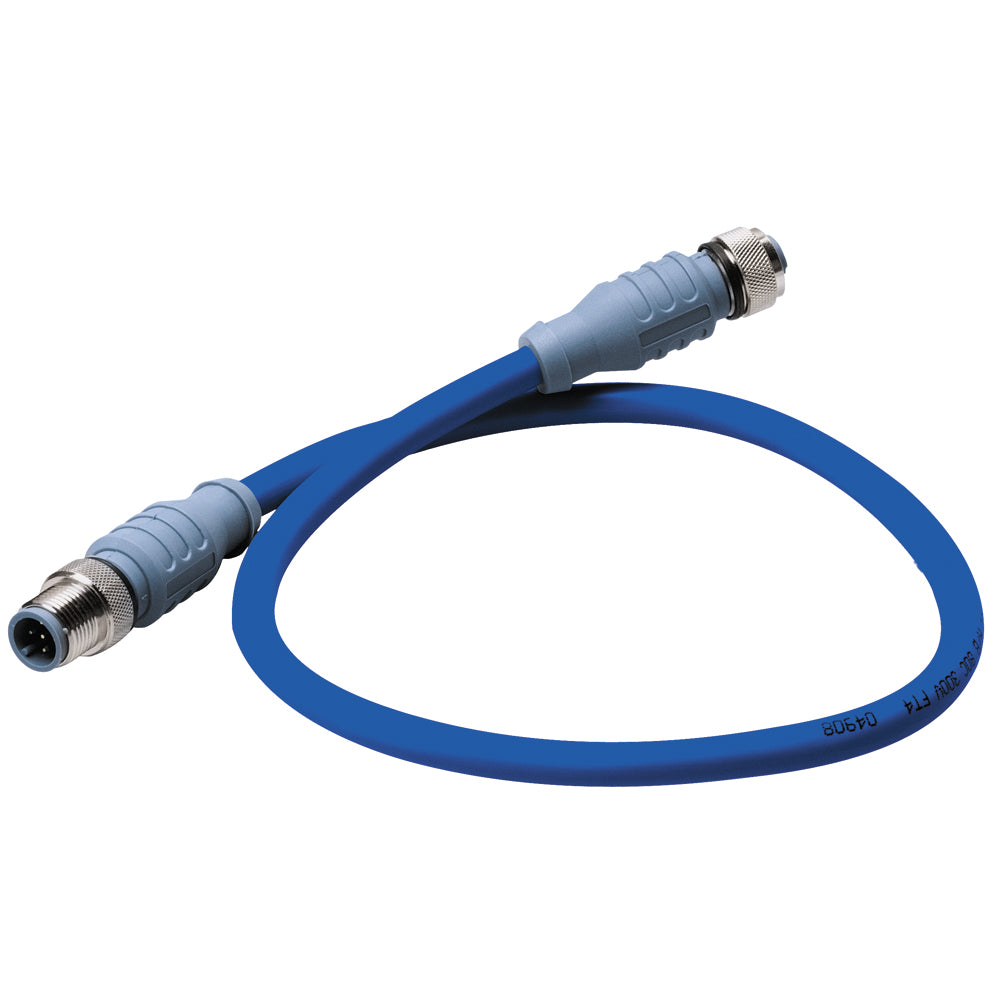

Maretron Mid Double-Ended Cordset - 2 Meter - Blue
Maretron Mid Double-Ended Cordset - 2 Meter - Blue
SKUCT-102546
Regular price
$46.78
Regular price
Sale price
$46.78
Shipping calculated at checkout.
Low stock
Quantity
Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question
Product details
Review the details before ordering.
Maretron Mid Double-Ended Cordset - 2 M Blue
Mechanical:
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59"
Electrical - Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable
- Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: PE (data pair), PVC (power pair)
- Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
- Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)
ENVIRONMENTAL - Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
APPROVALS - (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
- NMEA: NMEA 2000 Approved
- IEC: IEC 61162-3
