Brand: Maretron

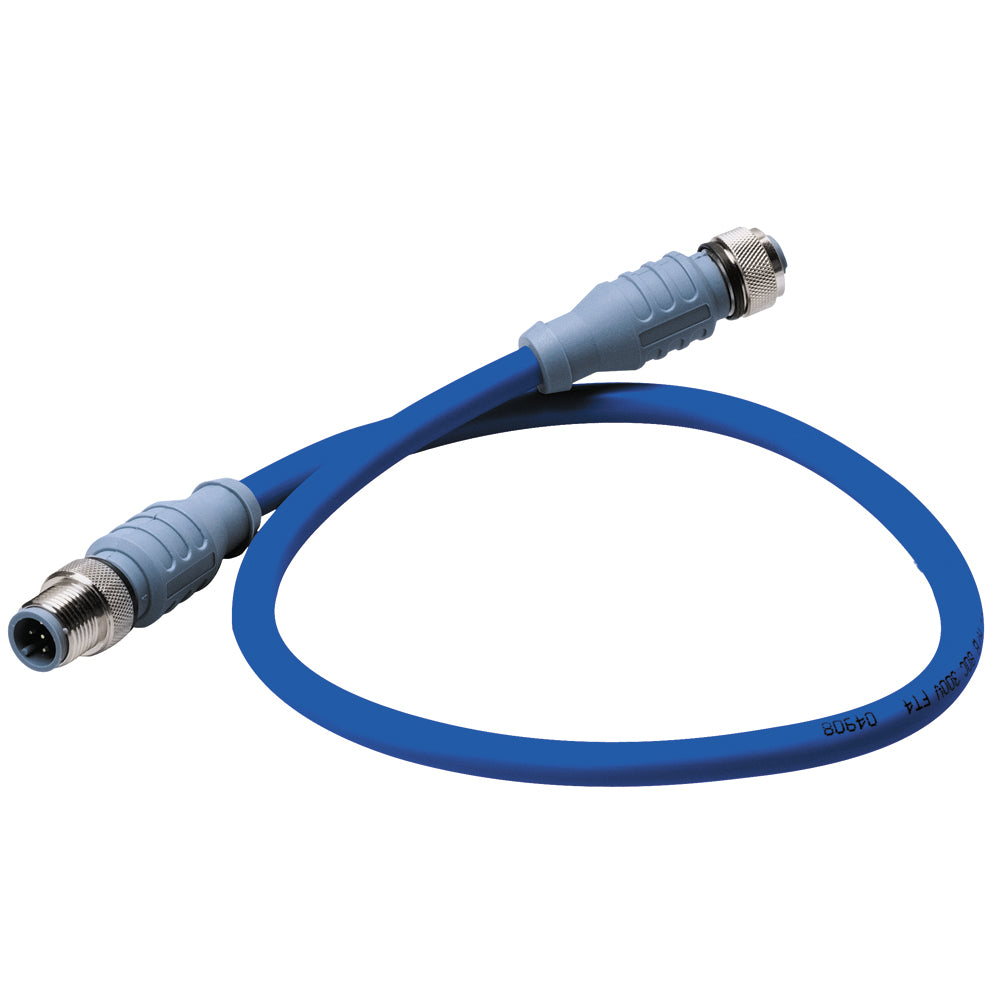

Maretron NMEA 2000 Mid Double-Ended Cordset, 3 Meter
Maretron NMEA 2000 Mid Double-Ended Cordset, 3 Meter
Last one
This Maretron Mid double-ended cordset is designed for reliable data and power transmission in NMEA 2000 marine networks. This 3-meter cable features high-durability construction suitable for demanding marine environments.
Key Specifications:
- Length: 3 meters (approx. 9.8')
- Interface: NMEA 2000
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V
- Connector Diameter: 0.59 in.
- Protection: IEC IP68, NEMA 1, 3, 4, 6P
- Temperature Rating: -40°F to 176°F (-40°C to 80°C)
- Conductors: 2x16 AWG power, 2x20 AWG data, 20 AWG drain wire
- Shielding: Triple-layer foil (overall, power pair, and data pair)
- Approvals: NMEA 2000 Approved, IEC 61162-3, UL (PLTC 75°C Sunlight Resistant), CSA (CMX-OUTDOOR-CMG)
Product facts
- CT SKU
- CT-102547
- Model / MPN
- DM-DB1-DF-03.0
- UPC / GTIN
- 873804001920
- Package dimensions
- 1" X 7" X 9"
- Package weight
- 0.7 lb
- Specifications
- Cable Length (Feet) = 10'
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
