• Maretron DM-DB1-DF-05.0 NMEA 2000 Mid Double-Ended Cordset, 5 Meter
1 1

Brand: Maretron

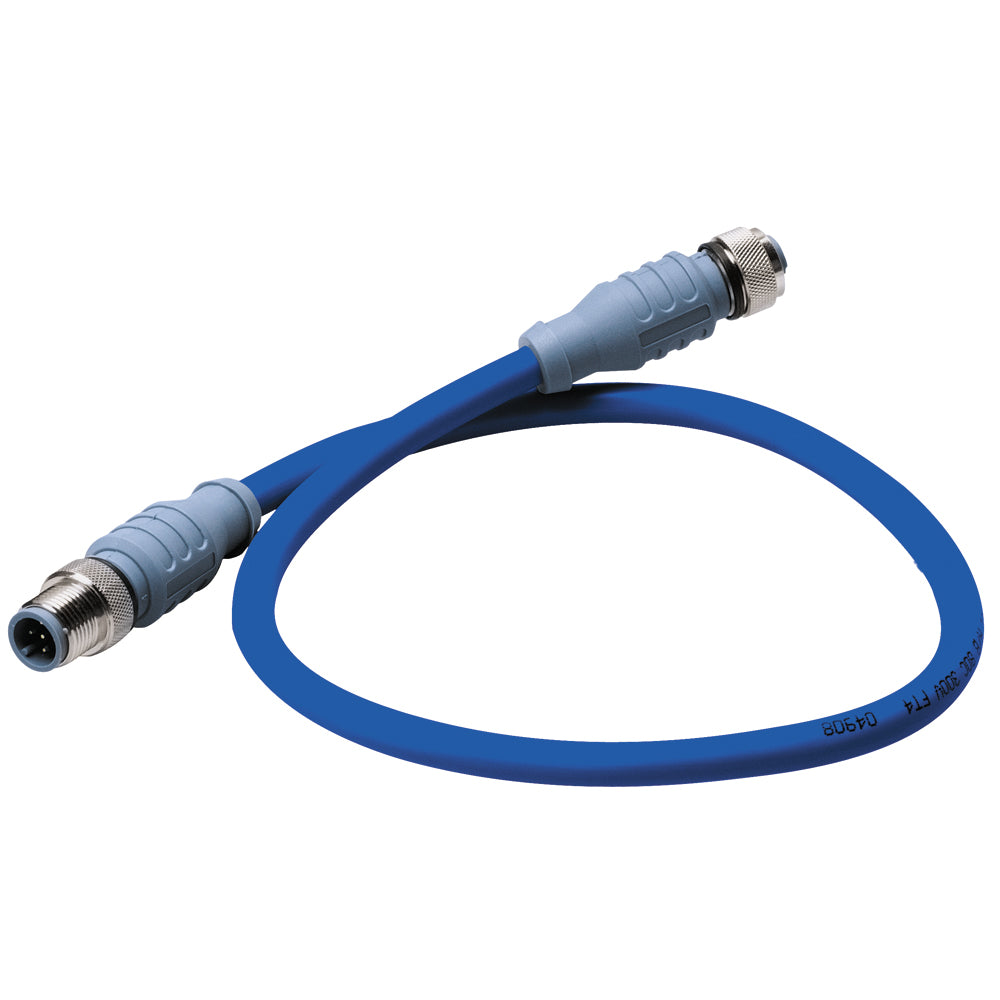

Maretron DM-DB1-DF-05.0 NMEA 2000 Mid Double-Ended Cordset, 5 Meter

Maretron DM-DB1-DF-05.0 NMEA 2000 Mid Double-Ended Cordset, 5 Meter

$62.19
$62.19
Sale Sold out
Shipping calculated at checkout.

Sold out

The Maretron DM-DB1-DF-05.0 is a 5-meter mid-sized, double-ended cordset designed for NMEA 2000 marine electronics networks. This high-durability cable features a gray PVC outer jacket and triple-level shielding to ensure reliable data and power transmission in demanding marine environments.

Technical Specifications:

  • Cable Length: 5 meters (approx. 16.4 ft.)
  • NMEA 2000 Certified
  • Connector Diameter: 0.59 in.
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
  • Protection Rating: IEC IP68, NEMA 1, 3, 4, 6P
  • Temperature Rating: -40°F to 176°F (-40°C to 80°C)
  • Conductors: 2x16 AWG power pair, 2x20 AWG data pair, and 20 AWG drain wire
  • Materials: Gold-plated brass contacts with nickel-plated brass coupling nuts
  • Safety Approvals: UL PLTC Sunlight Resistant, CSA CMX-OUTDOOR-CMG, IEC 61162-3

Product facts

CT SKU
CT-102549
Model / MPN
DM-DB1-DF-05.0
UPC / GTIN
873804001944
Package dimensions
1" X 9" X 10"
Package weight
1.2 lb
Specifications
Cable Length (Feet) = 16'
