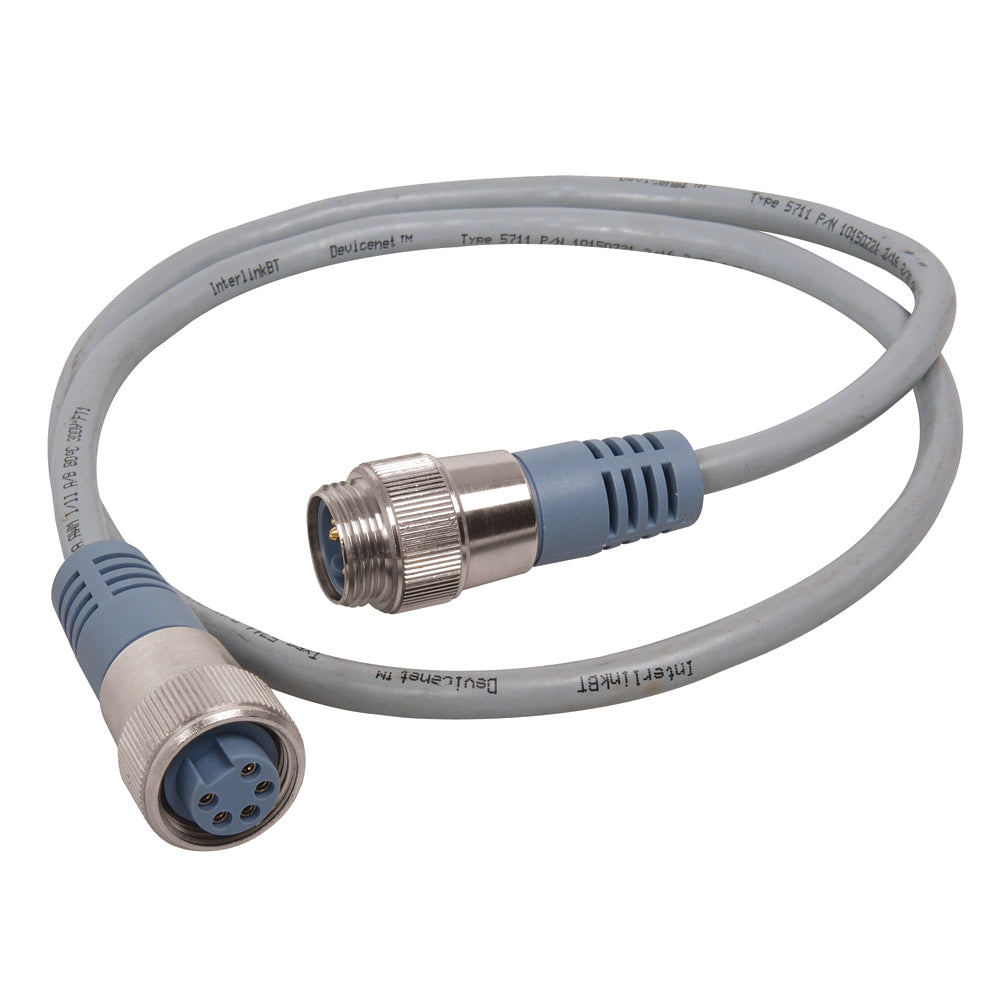

Maretron Mini NMEA 2000 Double-Ended Cordset, 5M (Male-Female)

Ensure secure, high-capacity data transmission across your marine network with the Maretron NM-NG1-NF-05.0 Mini Double-Ended Cordset. Engineered for robust performance in harsh marine environments, this 5-meter (16.4 ft) cable provides a critical link for larger NMEA 2000 vessel networks, supporting professional-grade marine electronics and sensor arrays. Upgrade your marine system with reliable Maretron connectivity today.

Key Benefits & Features:

• NMEA 2000 Approved: Meets stringent NMEA 2000 specifications for seamless communication and network compliance.
• Heavy-Duty Mini Connection: Designed for larger network backbones, ensuring stable, low-loss data transmission and a high-capacity link for demanding marine electronics.
• Exceptional Waterproofing: Features IP68 rated connectors, ensuring reliable operation even when fully submerged in bilge water or exposed to harsh marine conditions.
• Error-Free Installation: Keyed male-to-female connectors prevent incorrect connections, simplifying setup and ensuring system integrity.
• Optimal Conductor Design: Utilizes 2x15 AWG and 2x18 AWG conductors with three levels of shielding (overall braid, foil for power pair, foil for data pair) to minimize RFI emission and signal degradation.
• Corrosion-Resistant Contacts: Gold-plated brass contacts and a nickel-plated brass coupling nut provide secure, long-lasting, and corrosion-resistant connections.
• High Power Capacity: Rated for a 9.0 Amp current and 300 Volt, suitable for powering multiple devices within larger NMEA 2000 networks.
• Wide Temperature Range: Operates reliably in extreme temperatures from -40°C to 80°C (-40°F to 176°F).
• Versatile Application: Ideal for use as NMEA 2000 trunk or drop lines, providing flexibility in network topology.
• Durable Construction: Features a rugged PVC outer jacket and thermoplastic PUR molded body for enhanced protection against wear and tear in challenging environments.

Recommended Pairings: Integrate effortlessly with Maretron NMEA 2000 T-connectors and other NMEA 2000 compatible devices such as GPS, weather instruments, and multifunction displays for a complete marine electronics solution.
