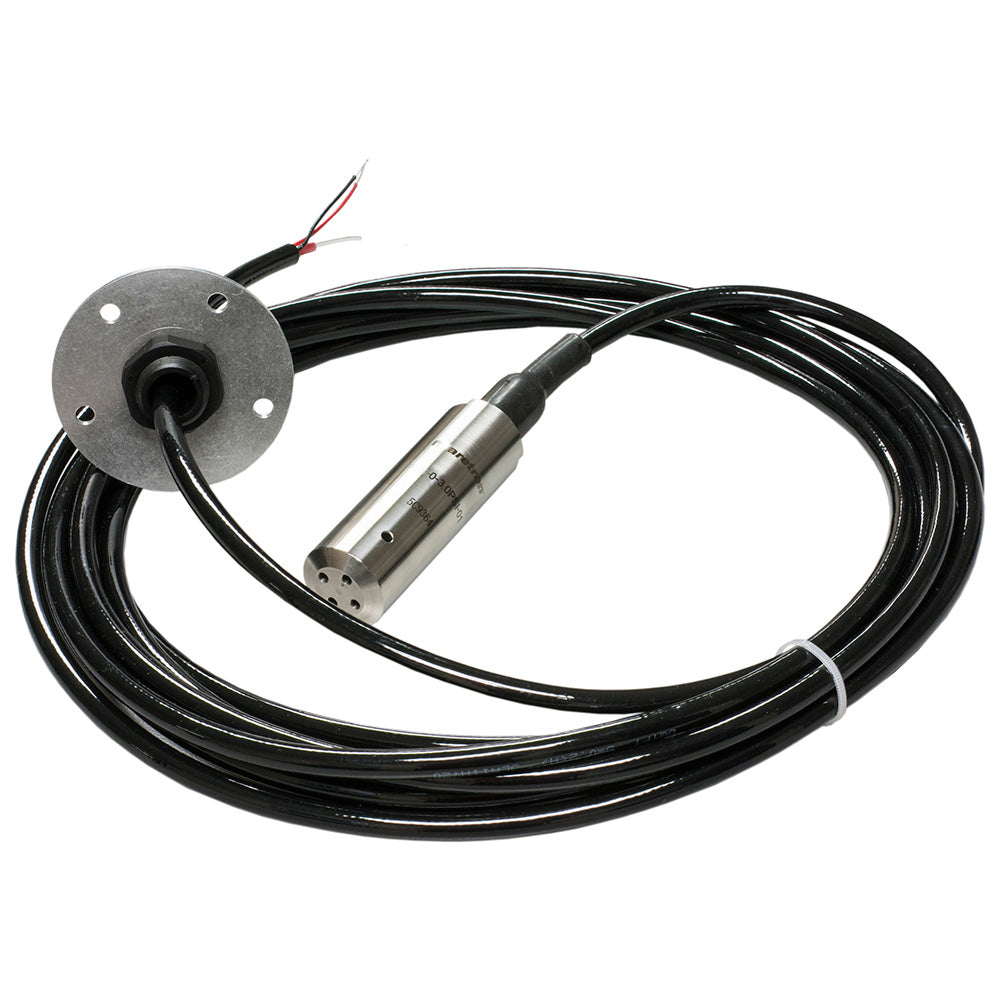

Maretron PTS-0-3PSI-02 Submersible Pressure Transducer, 0-3 PSI

The Maretron PTS-0-3PSI-02 is a submersible pressure transducer designed for precise tank level monitoring. This gauge-type sensor is engineered for installation directly within tanks and requires connection to an NMEA 2000 network via a Maretron FPM100 Fluid Pressure Monitor.

Key Features and Specifications:

• Operating Range: 0 to 3 PSI (0.207 bar)
• Compatible Fluids: Diesel, DEF, Gasoline, Hydraulic Fluid, Kerosene, Motor Oil, Fresh Water, Sea Water, and Waste Water
• Cable Length: 17 ft
• Construction: 316L stainless steel body and diaphragm, polyether polyurethane cable, and chloroprene boot
• Accuracy: ±0.3% Full Scale (typical at 25°C)
• Output: 4-20 mA current loop, loop powered
• Excitation Voltage: 8 VDC to 28 VDC
• Operating Temperature: 14°F to 158°F (-10°C to 80°C)
• Weight: 24.8 oz

The transducer is designed for tanks with a 5-hole SAE J1810 top fitting. It features a vent tube integrated into the 17 ft cable to ensure accurate gauge pressure readings. The sensor can be installed freely or secured within a restraining tube (TFT-5H, sold separately). System configuration requires a Maretron DSM series display or N2KAnalyzer software.
