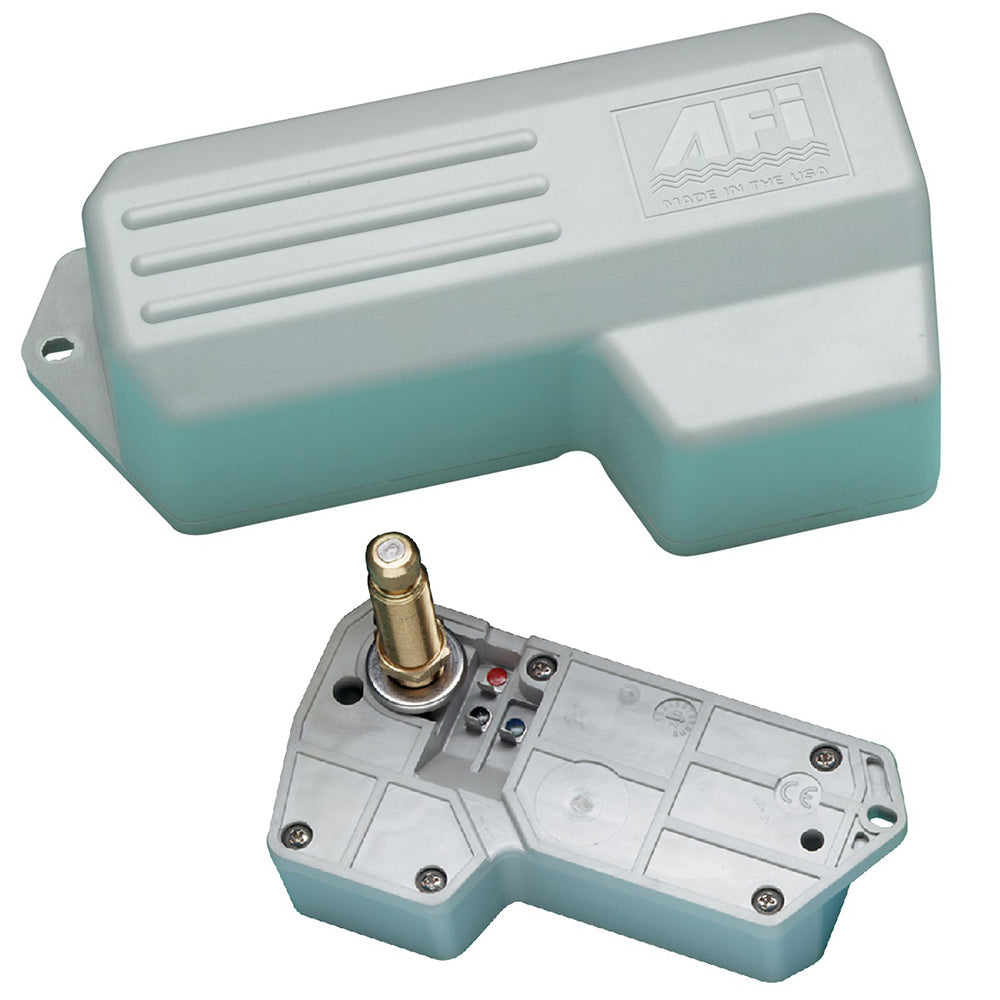

Marinco 1000 Series Waterproof Wiper Motor, 12V, 2.5 in. Shaft, 110 deg

The Marinco 1000 Series Waterproof Wiper Motor is a 12-volt, heavy-duty motor designed for marine applications. It features a fully sealed housing constructed from UV-stabilized, high-impact thermoplastic to ensure durability in harsh environments.

Product Specifications:

• Factory pre-set sweep of 80° or 110°, adjustable to 50°, 65°, 80°, or 110°
• 2.5 in. shaft length
• 0.625 in. diameter (16 mm) shaft with knurled drive and brass arm drive nut
• Coast-to-park functionality with adjustable right or left self-parking
• Stall torque: 55 in-lbs
• Stall current: 9.8-10.0 amps; No load current: 0.8-1.2 amps
• Dimensions: 6.625 in. L x 3.375 in. W x 2 in. D
• Weight: 1.75 lbs
• RF shielded circuitry
• Includes 5 amp fuse and holder (on/off switch sold separately)

This motor is rated to power an 18 in. Deluxe arm and blade combination at sweep sets of 80° or less, or a 16 in. Deluxe arm and blade combination at a sweep set of 110°.
