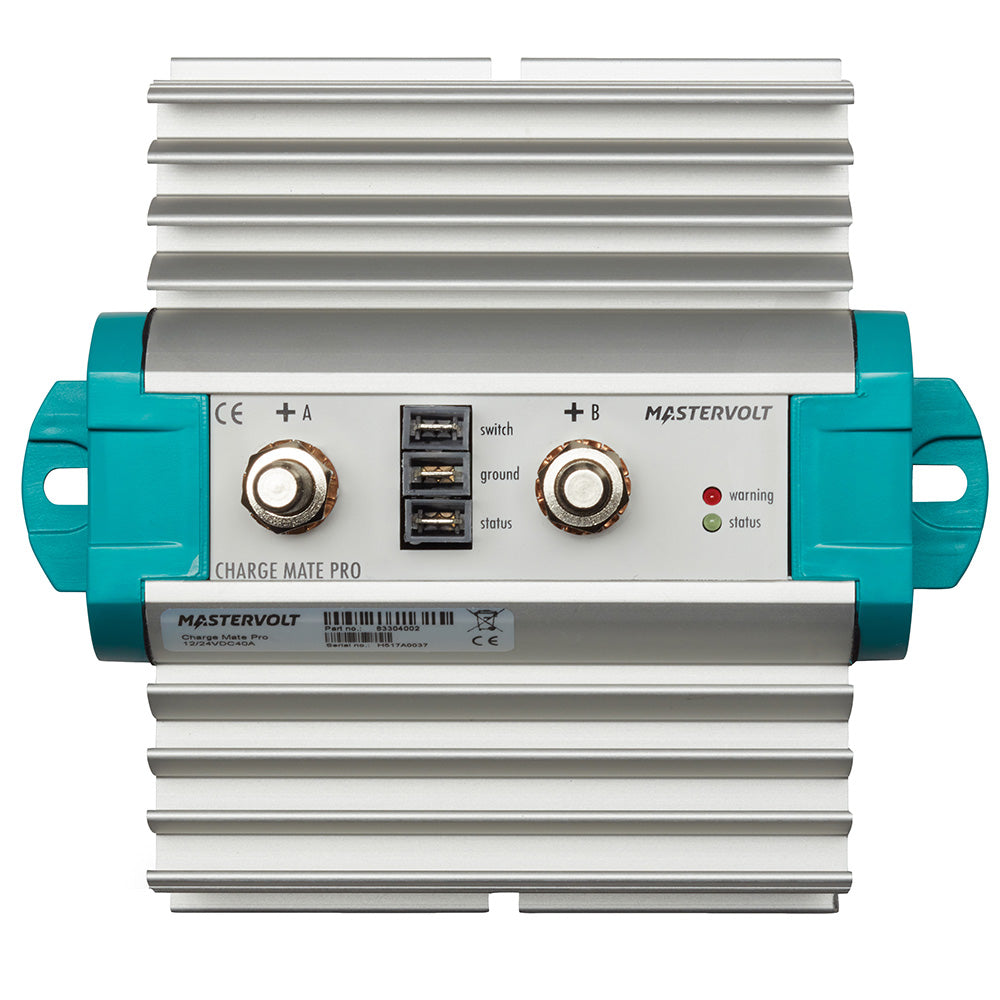

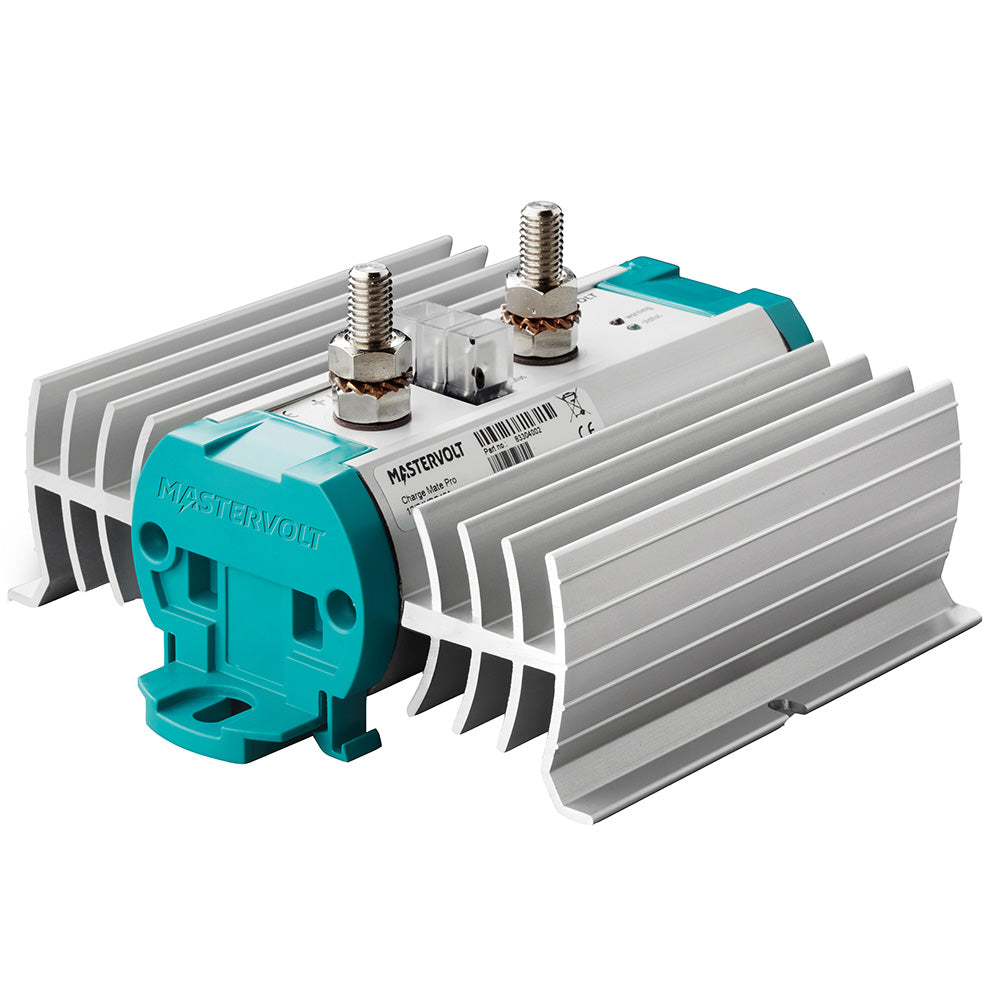

Mastervolt Charge Mate Pro Lithium 90 Electronic Charge Relay

The Mastervolt Charge Mate Pro Lithium 90 is a current-limiting electronic charge relay designed to effectively distribute charging power from a single source, such as an alternator or battery charger, between two separate battery banks. It ensures the primary battery, such as a starter battery, is charged with priority while safely managing the charge for the secondary service or bow thruster battery.

Key Features:

• Charges two battery banks from one source with reverse current protection.
• Features a 90 A charge current limit for the secondary battery, suitable for Lithium-Ion batteries and large automotive alternators up to 180 A.
• Automatic 12/24 V detection with an input voltage range of 9-32 V.
• Designed with MOSFET technology for a low voltage drop of max 0.2 V.
• Equipped with LED status indication and a durable, corrosion-resistant IP65-rated casing with aluminum heat sinks.
• Includes emergency start functionality when connected to an optional bypass switch.
• Suitable for marine and mobile applications.

Technical Specifications:

• Dimensions: 6.2" x 5.5" x 3.1" (157 x 140 x 80 mm)
• Weight: 1.9 lb (0.88 kg)
• Operating Temperature: -40°C to 60°C
• Compliance: CE marked
• Manufacturer Part Number: 83309004
