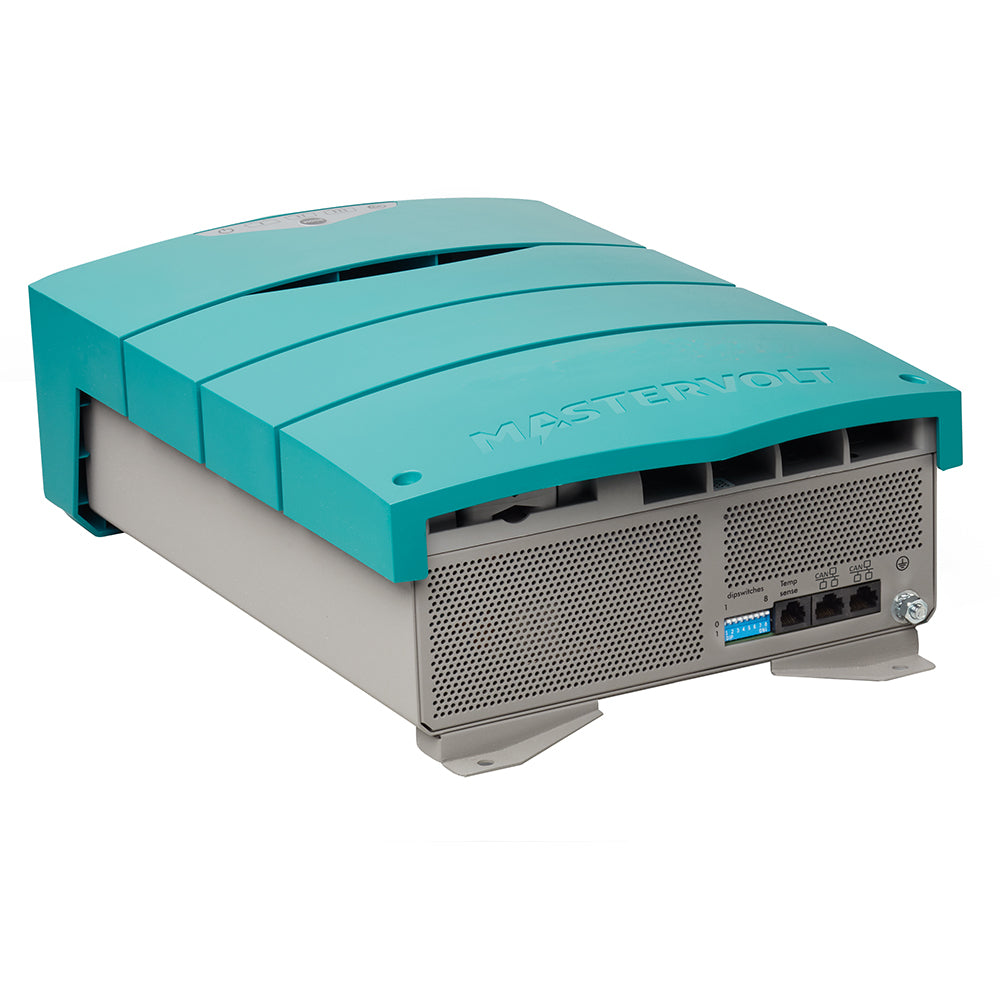

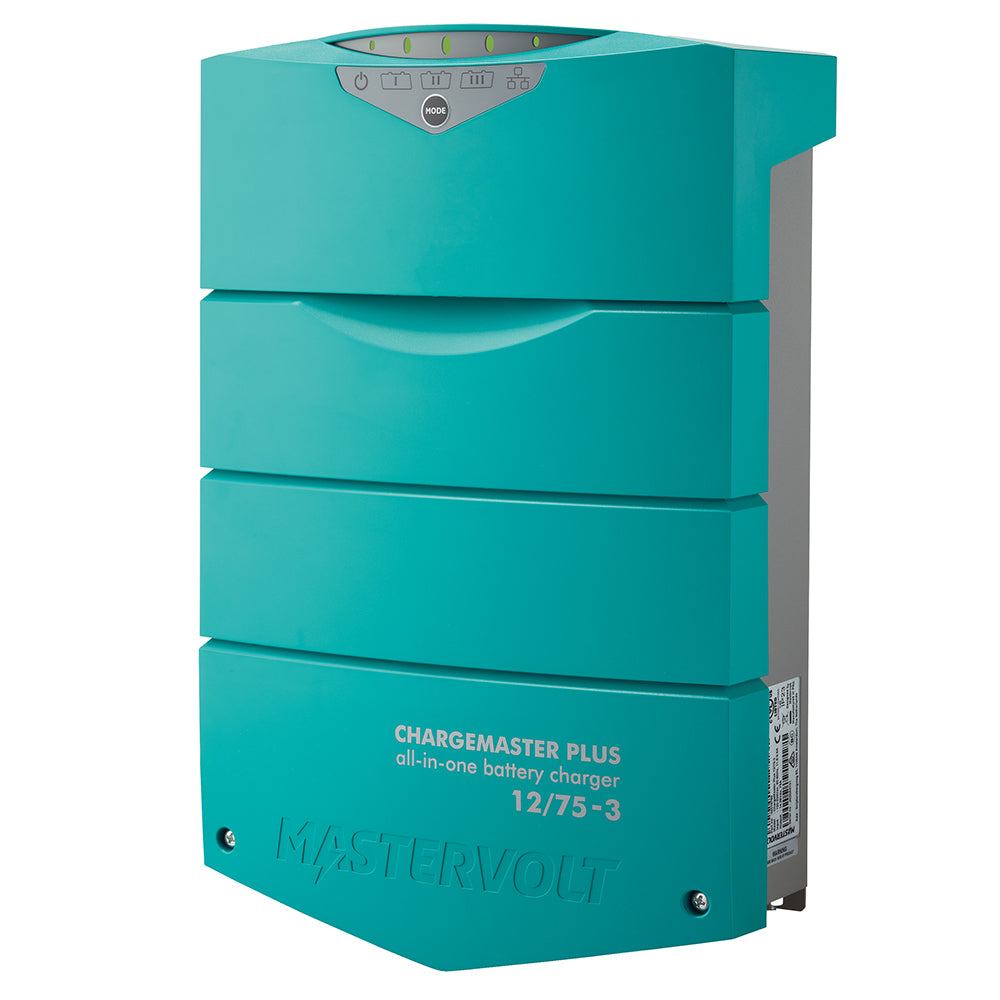

Mastervolt ChargeMaster Plus 12/75-3 CZone Battery Charger, 3-Bank

The Mastervolt ChargeMaster Plus 12/75-3 CZone is a versatile 3-bank battery charger designed to simplify electrical systems by consolidating the functions of auxiliary chargers, battery isolators, and VSRs into a single device. It utilizes a 3-step+ charge method to safely and efficiently charge a variety of battery chemistries, sizes, and voltages simultaneously.

Key Features:

• Capable of charging up to three battery banks with a total charge current of 75A at 14.4V.
• Supports MasterBus, CZone, and NMEA communication for integration with displays and power systems.
• Revival mode automatically recovers fully depleted batteries.
• Priority Charge functionality directs available power to the battery with the lowest charge.
• Smart Input enables charging from an alternator for continuous power while in motion.
• Wide operating range of 80-275V AC and 35-70Hz allows for global use.
• Robust, compact design resistant to voltage fluctuations and high temperatures.
• Certifications: CE, ABYC, UL, SAE, CEC, and RCM/C-Tick compliant.

The charger features an integrated LED display for monitoring charge phases and provides 80% charging power at 60°C. It is designed for straightforward, time-efficient installation in marine and mobile applications.
