Brand: Mastervolt

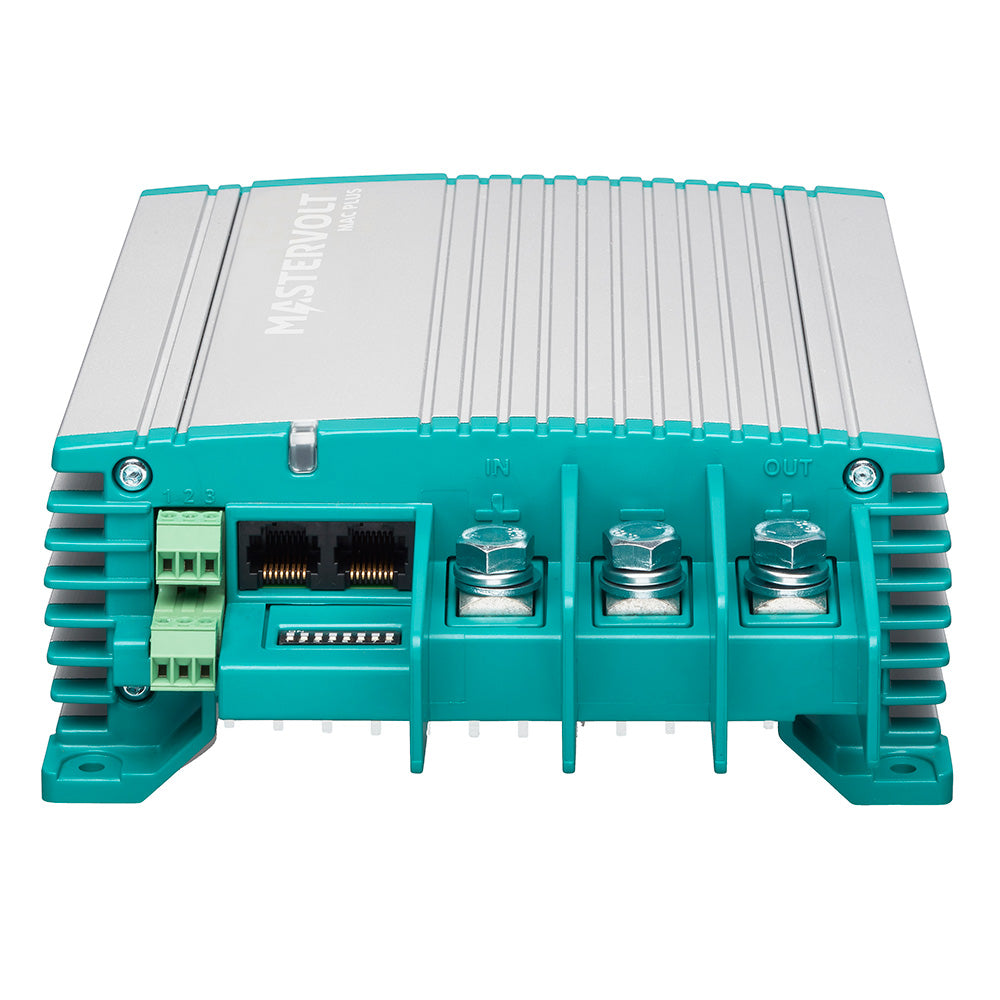

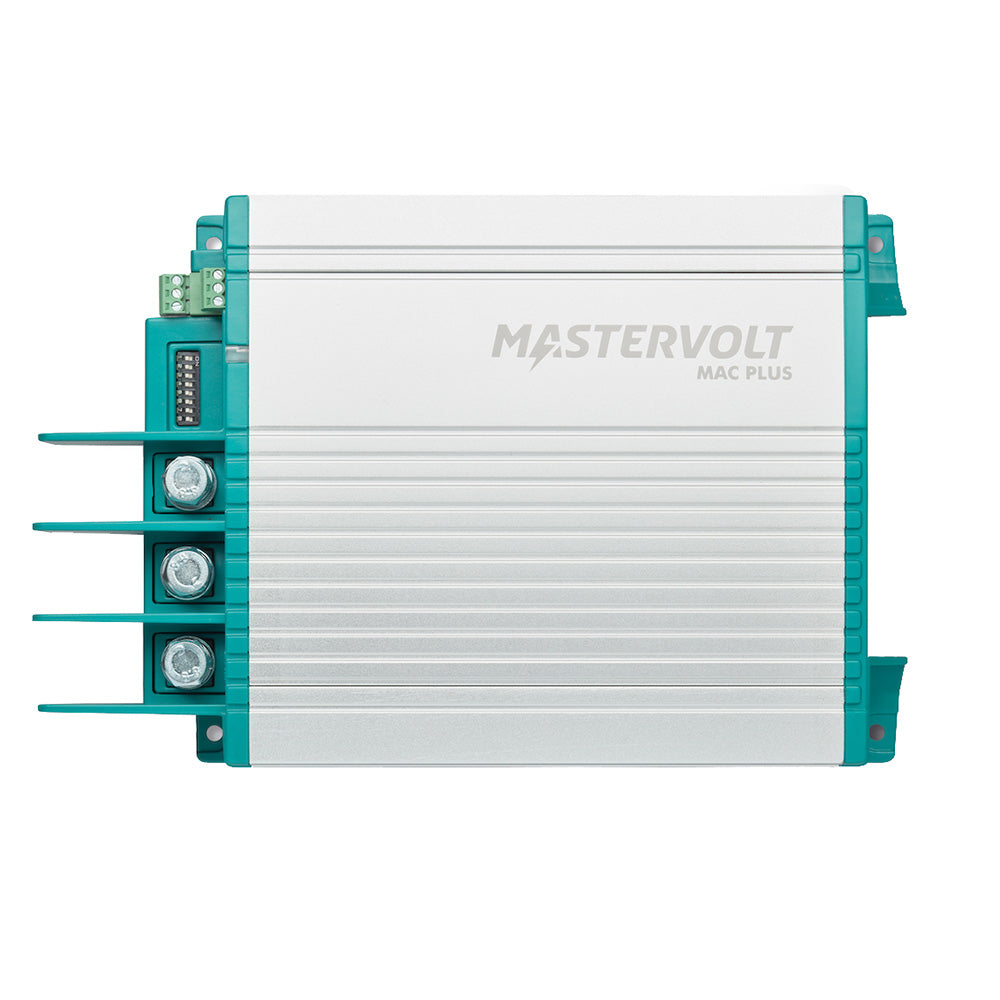

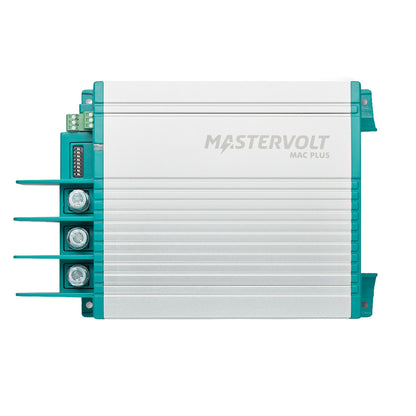

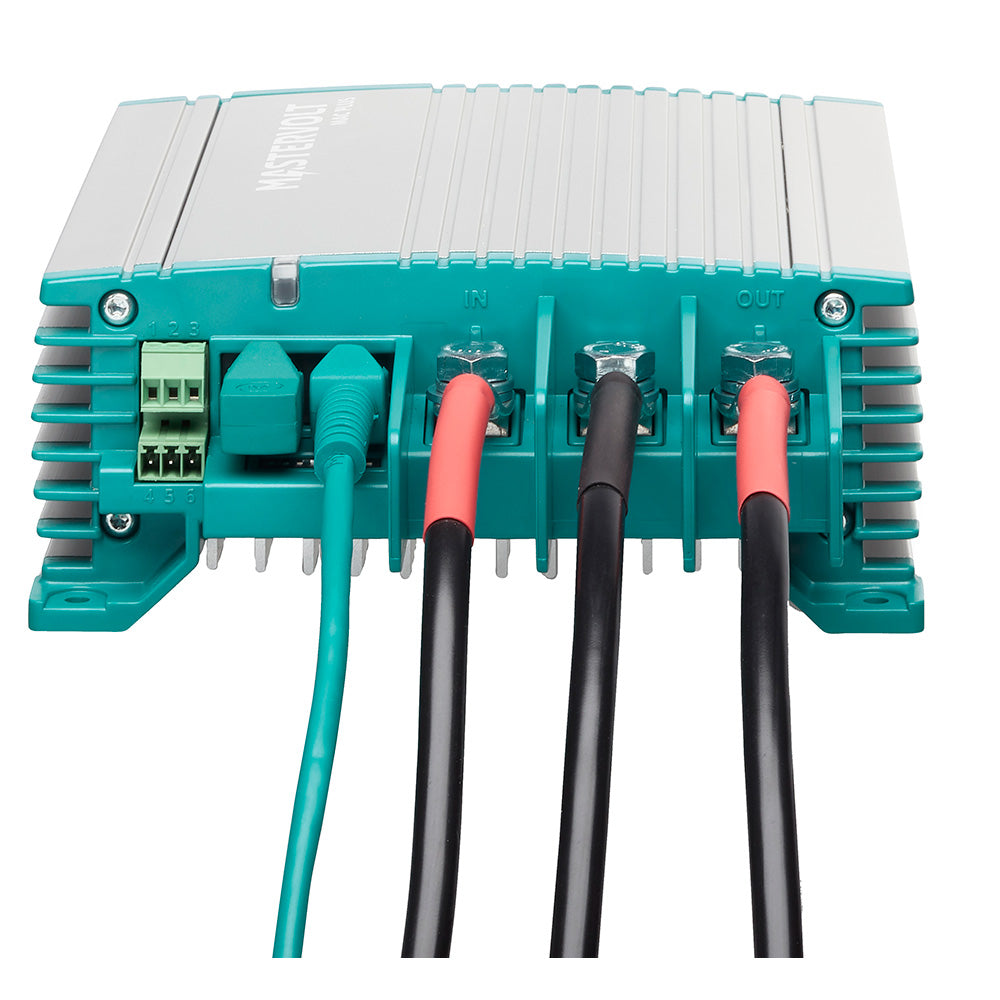

Mastervolt Mac Plus 12/24-30 DC-DC Charger with CZone
Mastervolt Mac Plus 12/24-30 DC-DC Charger with CZone
5 available
The Mastervolt Mac Plus 12/24-30 is a high-performance DC-DC battery charger designed to provide a consistent, safe charge to service batteries, even when using smart alternators or start/stop systems. This unit supports a wide range of battery chemistries, including flooded, Gel, AGM, and Lithium-Ion (LiFePO4). Featuring a fanless, silent design with a robust aluminum housing, it is built to withstand demanding environments while maintaining efficiency above 95%.
Key Features:
- Output: 30A charging current with 24V nominal output voltage.
- Input: 10-16V nominal input voltage range.
- Advanced 3-step+ charge algorithm for complete battery maintenance.
- Integrated engine run detection to prevent starter battery drainage.
- Parallel configuration support for systems requiring over 100A.
- Compatible with CZone, NMEA 2000, and MasterBus for system monitoring.
- Includes battery temperature sensor and voltage sense capabilities.
- Adjustable current limits to meet Euro 5/6 requirements.
- Safety and Compliance: CE, E-Mark, SAE J1171, and ISO 8846 Ignition Protected.
- Dimensions: 10.0 x 6.5 x 2.6 in.
- Weight: 4.4 lb.
The Mac Plus is configurable via MasterAdjust software, the CZone tool, or integrated DIP switches for flexible system installation.
Product facts
- CT SKU
- CT-114372
- Model / MPN
- 81205305
- UPC / GTIN
- 816882023507
- Package dimensions
- 4" X 9" X 15"
- Package weight
- 5.55 lb
- Specifications
- Charger Input - Voltage = 12v\nCharger Output - Amps = 30a\nCharger Output Voltage = 20-30v
