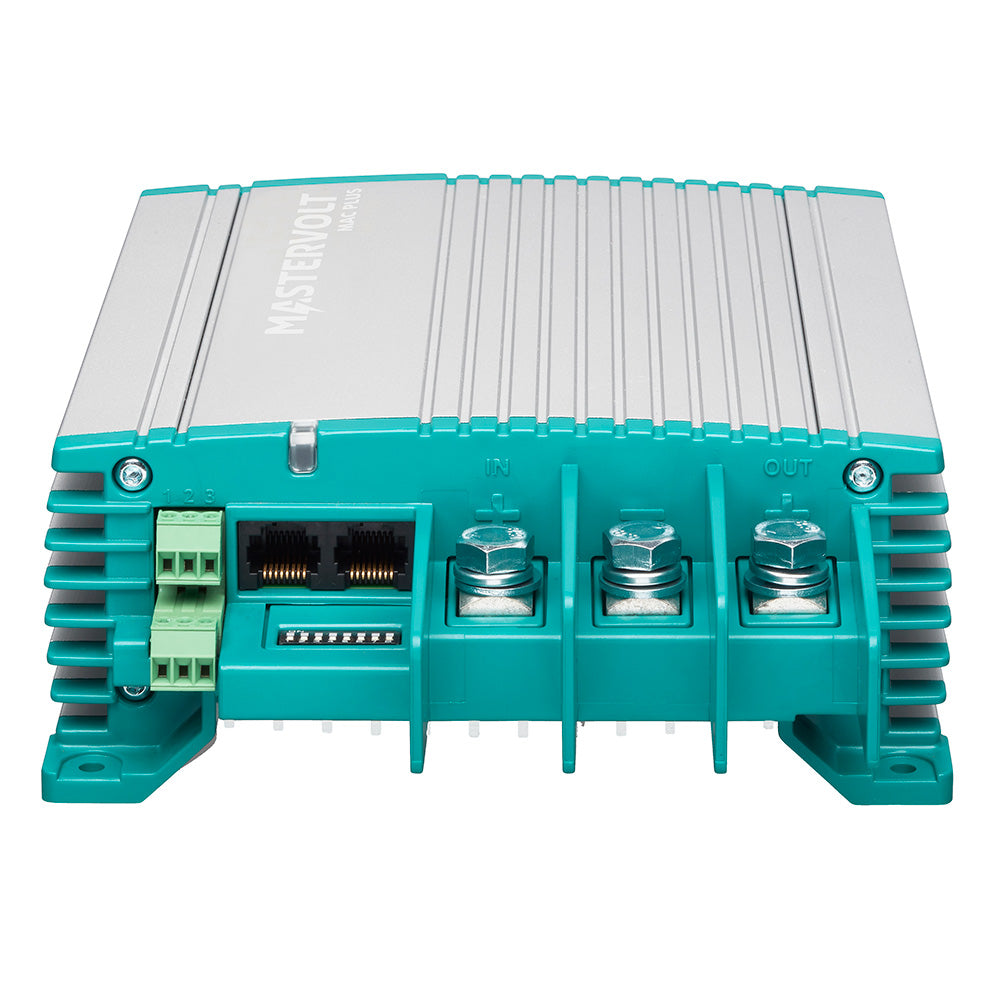

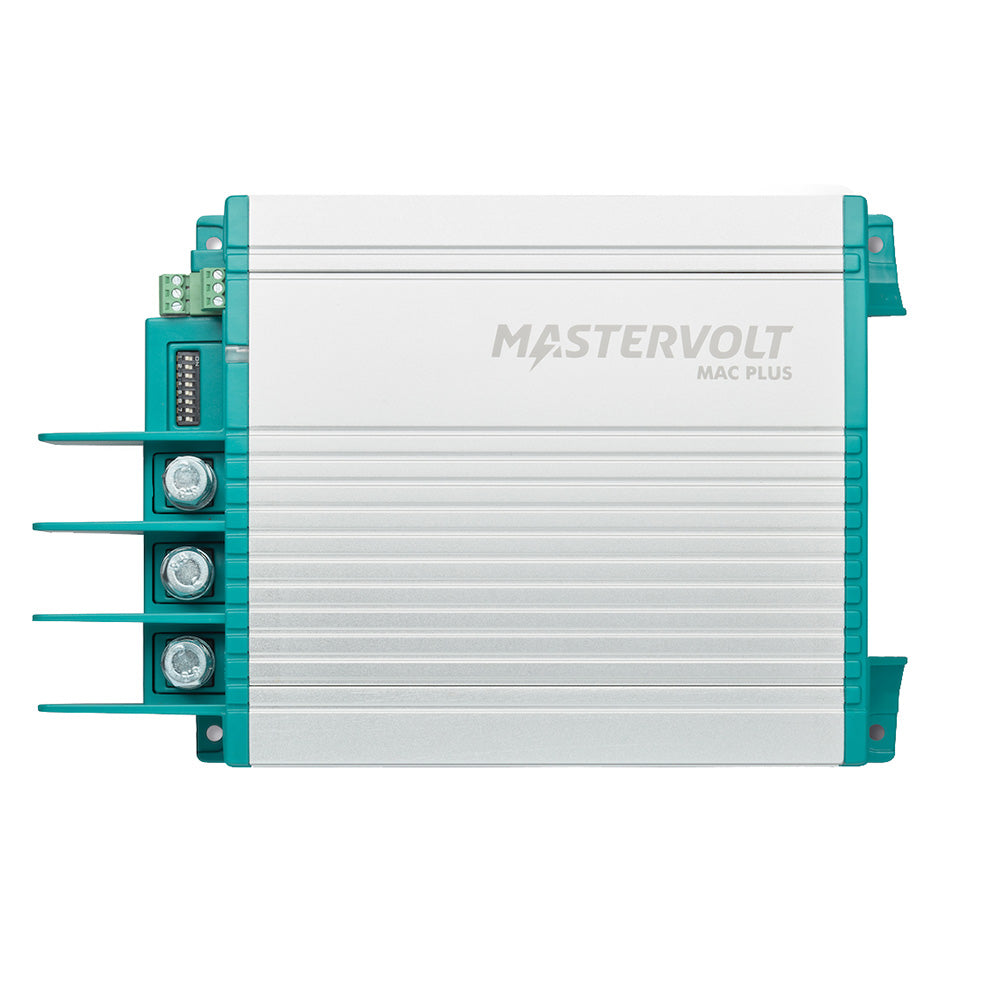

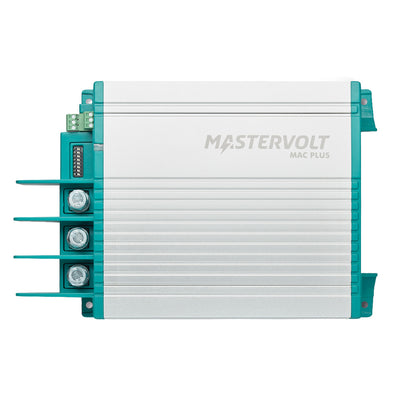

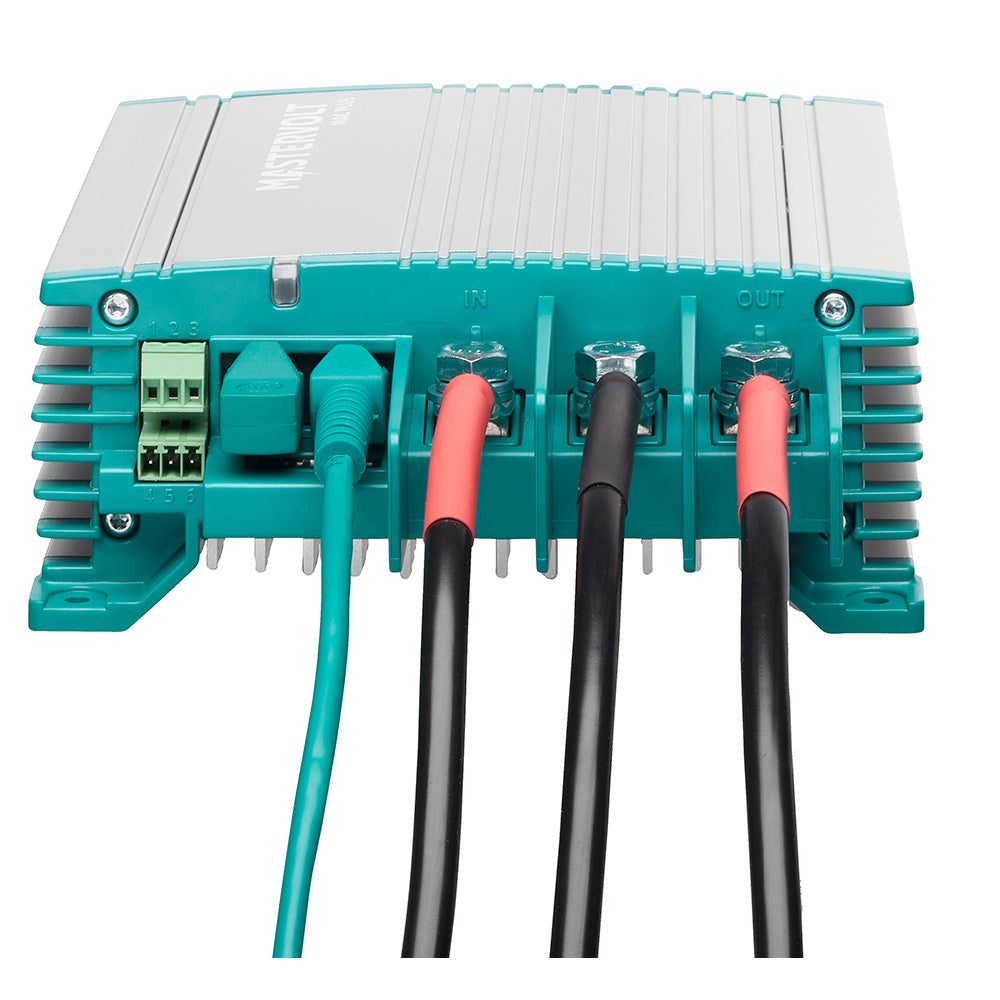

Mastervolt Mac Plus 24/24-30 DC-DC Charger with CZone

The Mastervolt Mac Plus 24/24-30 is a high-performance DC-DC battery charger designed to provide a quick, safe, and consistent charge to service batteries, even when using smart alternators or start/stop systems. Its 3-step charge algorithm efficiently manages charging for a wide range of battery chemistries, including flooded, Gel, AGM, and Li-Ion (LiFePO4).

Key Features:

• Performance: Delivers 30A output current with a nominal output of 810W.
• Silent Operation: Fanless, robust aluminum housing designed for natural cooling and silent operation.
• Advanced Integration: Fully compatible with CZone, MasterBus, and NMEA 2000 networks for intelligent monitoring and control.
• Reliability: Features engine run detection to protect starter batteries, voltage stabilization for sensitive loads, and temperature-optimized charging.
• Scalability: Supports parallel configuration of up to ten units for systems requiring over 100A.
• Safety and Compliance: CE, E-Mark, SAE J1171, and ISO 8846 ignition-protected for mobile applications.
• Included Items: Battery temperature sensor.
• Dimensions: 10.0" x 6.5" x 2.6" (255 x 165 x 66 mm).
• Weight: 4.4 lb (2 kg).

The Mac Plus is easily configured via the CZone tool, MasterAdjust software, or the integrated DIP switches. It features an operating temperature range of -25°C to 60°C, ensuring reliability in demanding environments.
