Brand: Newmar Power

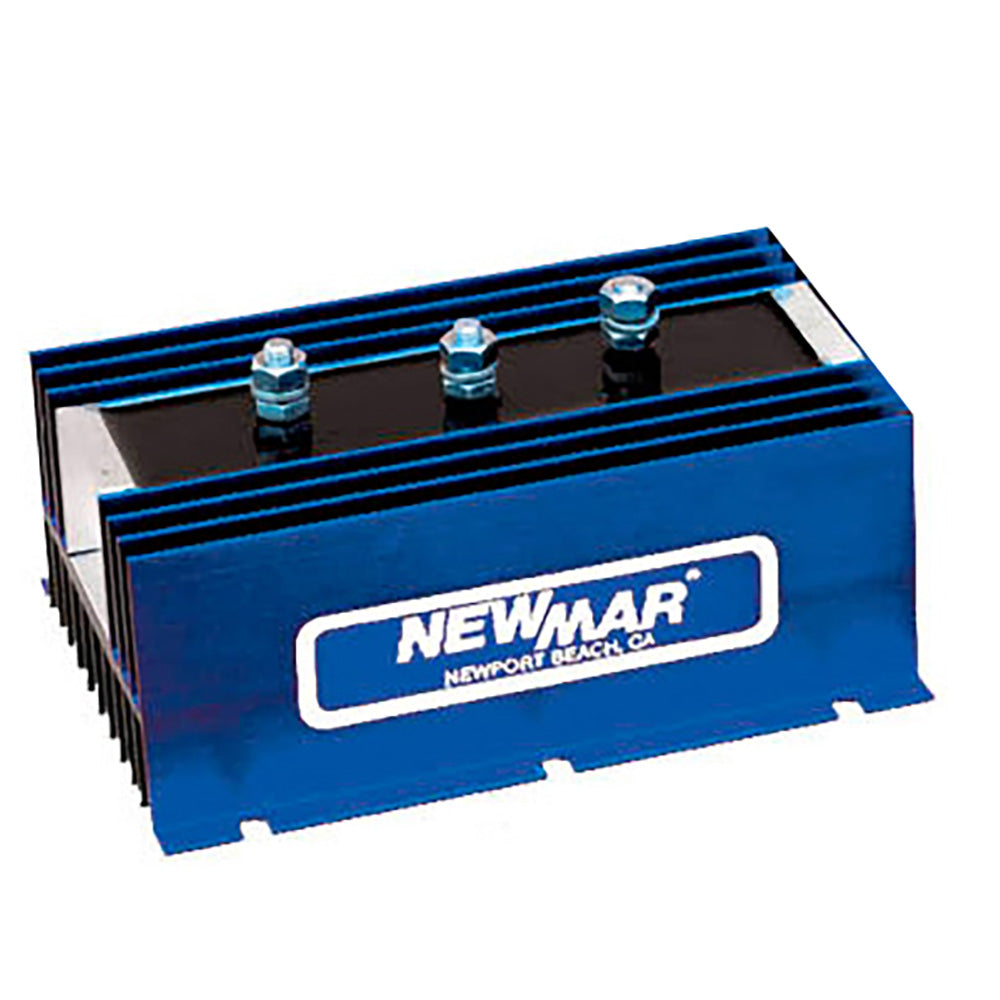

Newmar Power 1-2-120 Battery Isolator, 120 Amp
Newmar Power 1-2-120 Battery Isolator, 120 Amp
2 available
About this product
Newmar Power 1-2-120 Battery Isolator directs charging from one alternator to two battery banks while helping prevent one battery from discharging into another. The 120-amp isolator is intended for negative-ground DC systems and includes protective covers and stainless steel mounting hardware.
- Alternator sources: 1
- Battery banks: 2
- Maximum amperage input capacity: 120 amps
- System rating: up to 48 volts DC, negative ground
- Voltage drop: 0.7V at 50% load; 0.9V at full load
- Operating temperature: -40 to +80 °C
- Duty cycle: Continuous rating to 50 °C; derates linearly to 70% at 80 °C
- Temperature rise: 5 °C at full rated current; vertical mounting is recommended for optimum cooling
- Stud terminal size: 6mm
- Dimensions: 6.5 in. L x 4.5 in. W x 3.1 in. H
- Weight: 3 lbs.
- Construction: Anodized aluminum heat-sink case with conservatively rated diodes
- Included: Stainless steel mounting hardware and protective terminal covers
- Compatibility: Not compatible with self-exciting alternators; the alternator must have an external excitation lead
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-115710
- Model / MPN
- 1-2-120
- Package dimensions (H × W × L)
- 4" X 9" X 10"
- Package weight
- 2.6 lb
Specifications
- Type
- Newmar 1-2-120 Battery Isolator
