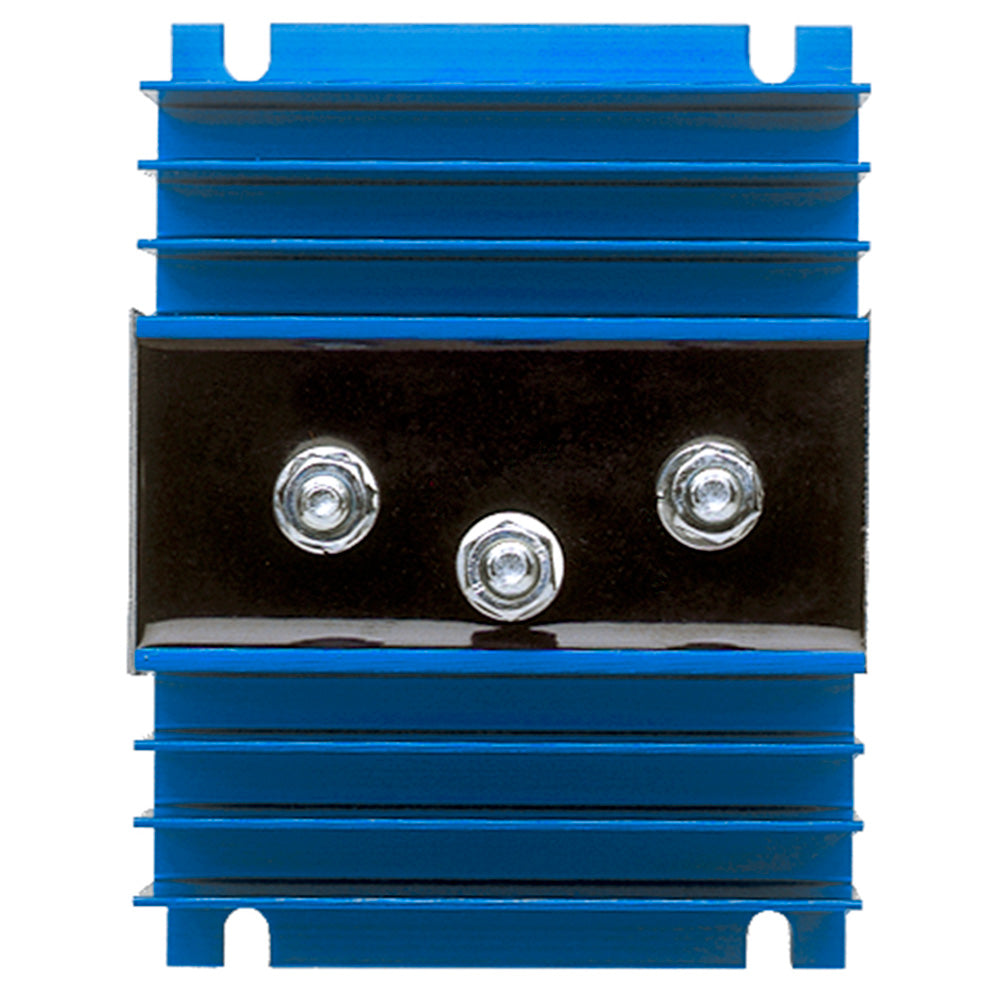

Newmar Power APS-70 Automatic Power Selector, 70A 6-50VDC

Ensure uninterrupted power for critical electronic loads with the Newmar Power APS-70 Automatic Power Selector. This solid-state device creates a seamless, redundant power system by automatically selecting the higher voltage from two independent DC power sources. Designed for demanding environments such as marine vessels, RVs, and industrial equipment, it guarantees continuous operation with zero transfer delay if one source falters or fails. Invest in Newmar's proven reliability today for peace of mind.

In the Box:

• Newmar Power APS-70 Unit
• Hardware Packet (4 hex nuts, 4 lock washers, 4 self-tapping mounting screws)
• 3 Terminal Insulation Boots (P/N 710-0109-0)
• Instruction Manual

Key Benefits & Features:

• Zero Transfer Time: Instantly switches to the backup source to keep critical loads powered without interruption.
• Versatile Voltage Compatibility: Supports 6-50 VDC systems with negative ground, ideal for 12V, 24V, or 48V applications.
• Robust Construction: Housed in a rugged, rust-proof anodized aluminum case for durability in harsh conditions.
• Source Isolation: Internal diodes maintain total electrical isolation between independent power sources.
• Alarm Capability: Easily attach alarm sense wires to input studs for a clear signal upon power source loss.
• High Load Capacity: Rated for a maximum continuous load of 70 amps.
• Compact Design: Fits into tight spaces for flexible installation.

Specifications:

• Maximum Load: 70 Amps
• Voltage Rating: 6-50 VDC, negative ground
• Stud Terminal Size: 6mm
• Dimensions: 3.25" H x 4.5" W x 3.1" D
• Weight: 2 lbs
