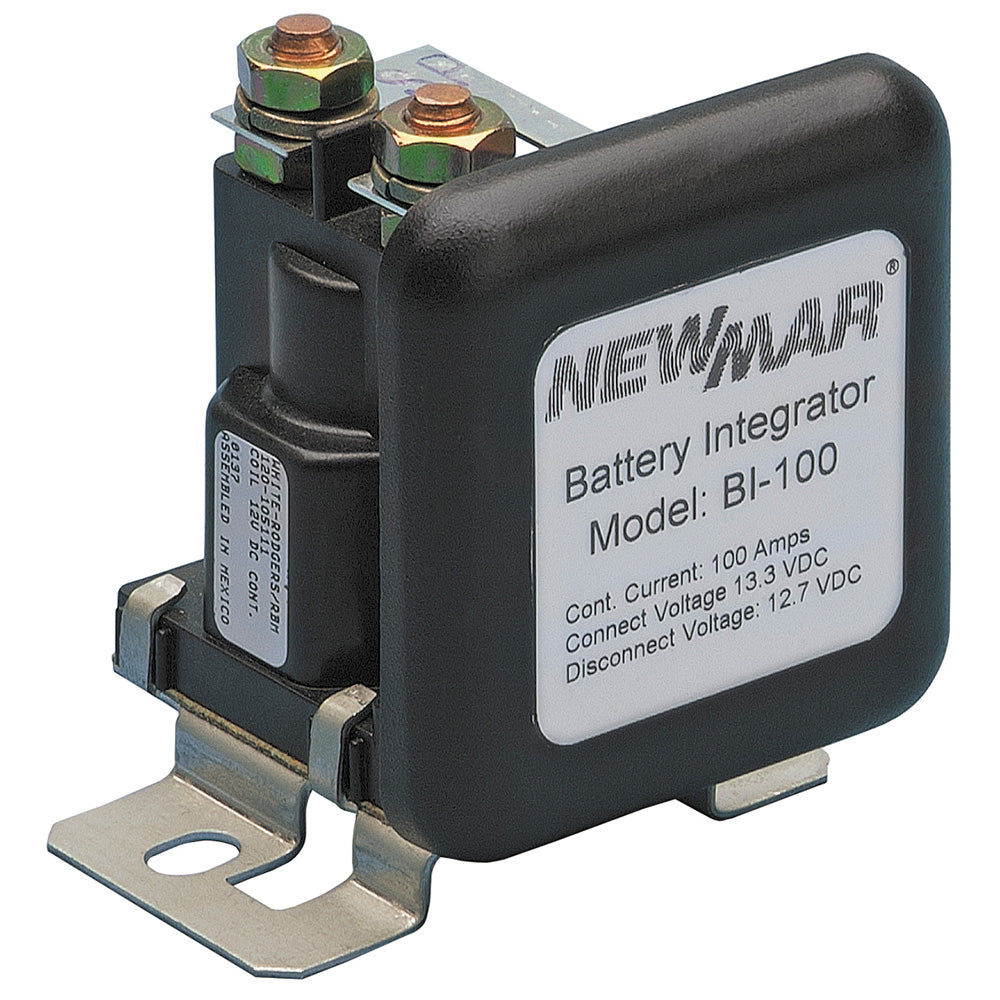

Newmar Power BI-100 Battery Integrator, 12VDC 100A, CE Marked

Maximize your vessel's power efficiency with the Newmar Power BI-100 Battery Integrator. This intelligent device automatically connects and disconnects multiple battery banks, ensuring optimal charging without voltage drop and preventing unwanted discharge. Engineered with robust voltage sense circuits and epoxy encapsulation for harsh marine environments, it provides reliable 100% isolation when not charging. Proudly CE Marked and ignition protected for enhanced safety, the BI-100 is the ideal solution for sophisticated marine and automotive power management. Upgrade to smarter battery protection today.

• Efficient Multi-Bank Charging: Automatically integrates two separate battery banks when a charging voltage (approx. 13.2 VDC) is present, allowing simultaneous charging without voltage drop.
• Optimal Battery Isolation: Disconnects battery banks when charging ceases (approx. 12.8 VDC), preventing cross-discharge and maintaining 100% isolation for selective power use.
• Robust Marine Design: Features epoxy-encapsulated voltage sense circuits and heavy-duty, continuous-rated solenoids, built to withstand challenging marine conditions.
• Enhanced Safety: The 12V, 100A model is ignition protected for secure operation in engine compartments and is CE Marked for verified quality.
• High Current Capacity: Rated for a continuous current of 100 Amps with a peak maximum current of 400 Amps, handling demanding power loads.
• Simple Installation: Designed for an easy three-wire hookup in two-bank systems (BATT +, BATT +, GROUND).

• Voltage: 12 VDC
• Max. Continuous Current: 100 Amps
• Peak Maximum Current: 400 Amps
• Battery Integration Point: 13.2 VDC
• Battery Disconnect Point: 12.8 VDC
• Terminals: 5/16 in. copper alloy stud
• Operating Temperature (Control): -40 to +85°C
• Operating Temperature (Solenoid): -28 to +48°C
• Dimensions (H x W x D): 3 x 3.25 x 2.5 inches
• Weight: 1 lb.
• Approvals: CE Marked

• For systems with three or more battery banks, an additional Newmar Battery Integrator is required for each additional bank.
• Features a terminal for optional wiring of a remote light, indicating when battery banks are integrated.
• Optional internal connections allow for remote activation via a key starter or manual switch, providing an added boost from a secondary battery during engine start.
