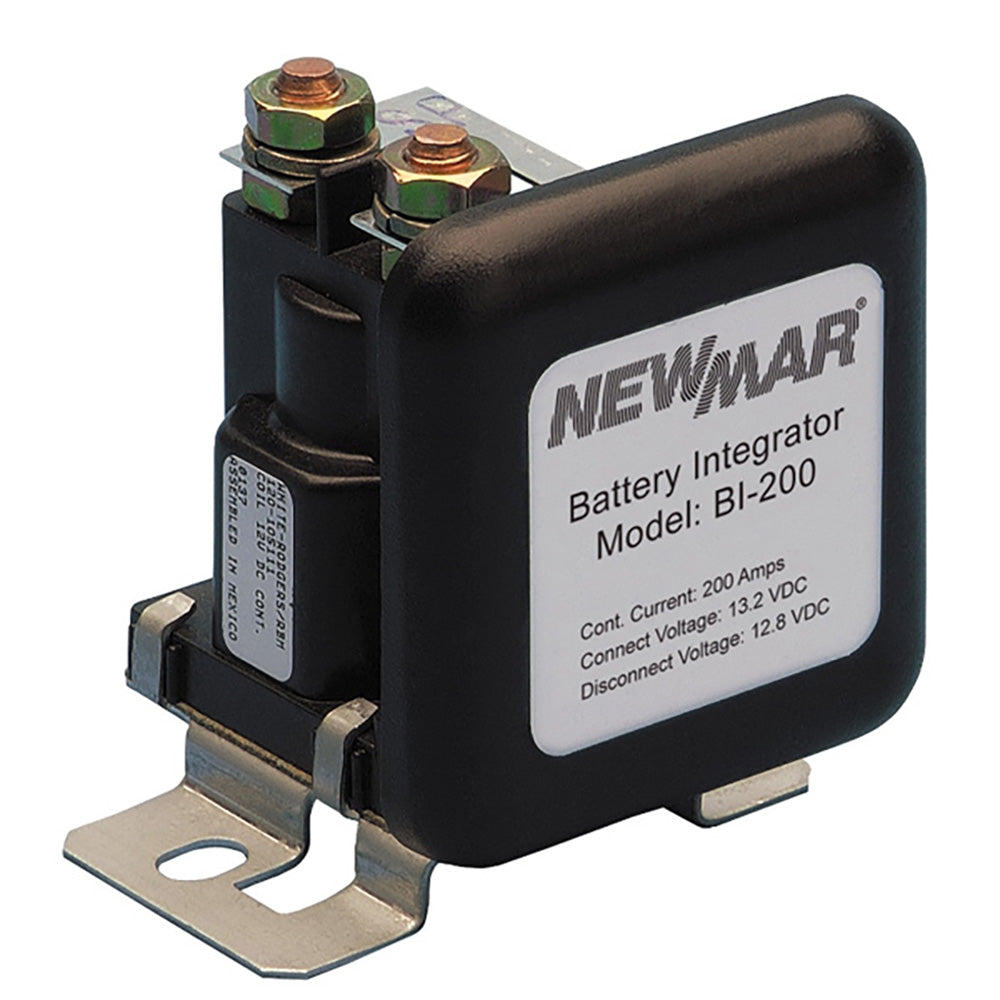

Newmar BI-200 Battery Integrator, 200 Amp

The Newmar BI-200 Battery Integrator automatically manages charging for multiple battery banks in marine environments. This unit acts as a smart switch that integrates independent battery banks only when a charging voltage is present, preventing discharge between banks when no charger is active. By functioning as a continuous-duty solenoid, it ensures efficient charging without the voltage drop associated with diode isolators.

Key Features:

• Maintains 100% isolation between banks when not charging
• Features a heavy-duty silver-plated contactor
• Epoxy-encapsulated voltage sense circuits
• Ignition protected for marine use
• Simple three-wire installation (Battery +, Battery +, Ground)
• Supports remote indicator light for status monitoring
• Allows for optional manual override or key-starter boost

Specifications:

• Max Continuous Current: 200 Amps
• Peak Maximum Current: 600 Amps
• Voltage: 12 VDC
• Integration Point: 13.2 VDC
• Disconnect Point: 12.8 VDC
• Terminals: 5/16 in. copper alloy studs
• Dimensions: 4 in. x 3.3 in. x 4.1 in.
• Weight: 2 lbs.
• Approvals: CE Marked
• Operating Temperature: -40 to 85 °C (Control); -28 to 48 °C (Solenoid)
