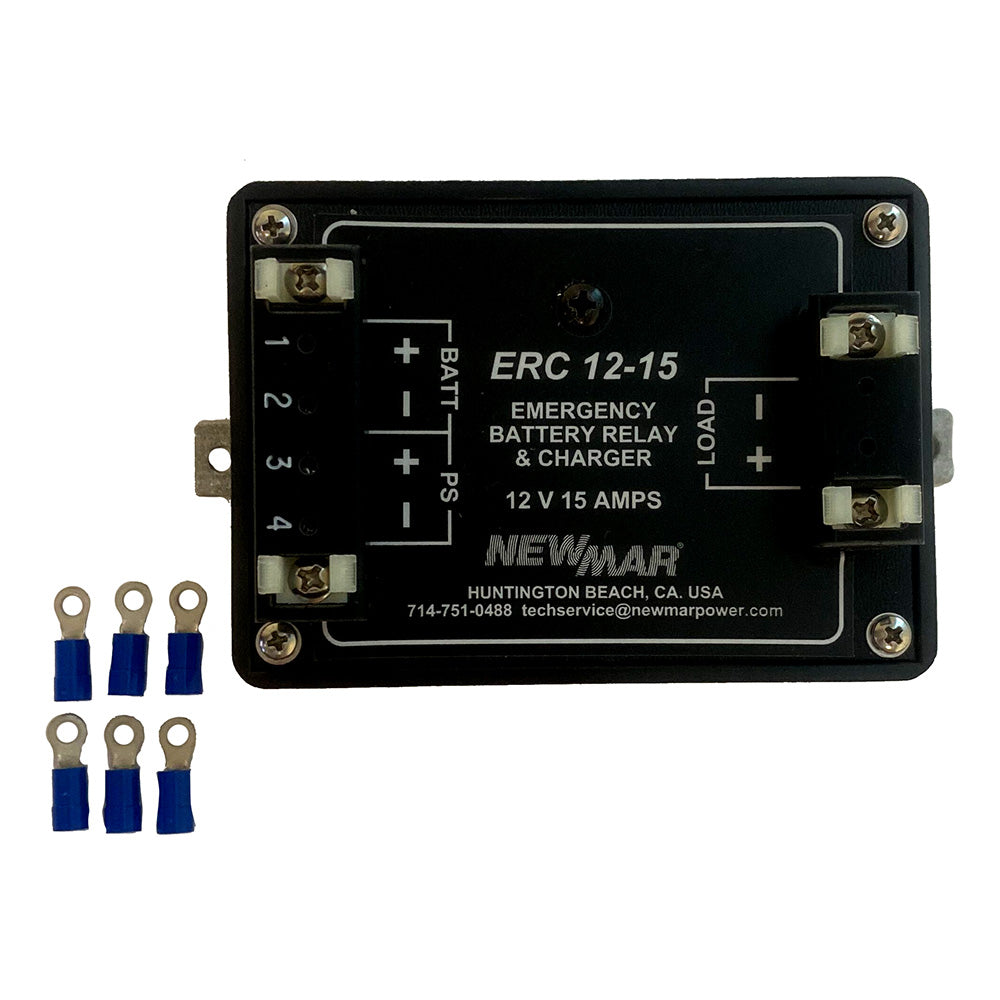

Newmar ERC-12-15 Emergency Relay/Charger

The Newmar ERC-12-15 Emergency Relay/Charger switches communications equipment to a standby battery when DC power is lost, then returns it to the power supply when service resumes. It also provides a trickle charge to maintain the battery while the power supply operates.

• 12V input range: 10.0–14.5 VDC
• Relay rating: 10 amps continuous, 15 amps intermittent
• Typical float trickle: 0.1 amps; battery float voltage is maintained 0.7 volts below the power supply voltage
• Dimensions: 5-1/8 x 2-7/8 x 2-3/8 in.; weight: 0.5 lb.
• Includes crimp ring lug connectors and yellow plastic terminal covers
• Wire gauge guidance by total run length: 5 ft. uses #14 AWG; 10 ft. uses #12 AWG; 15 ft. and 20 ft. use #10 AWG

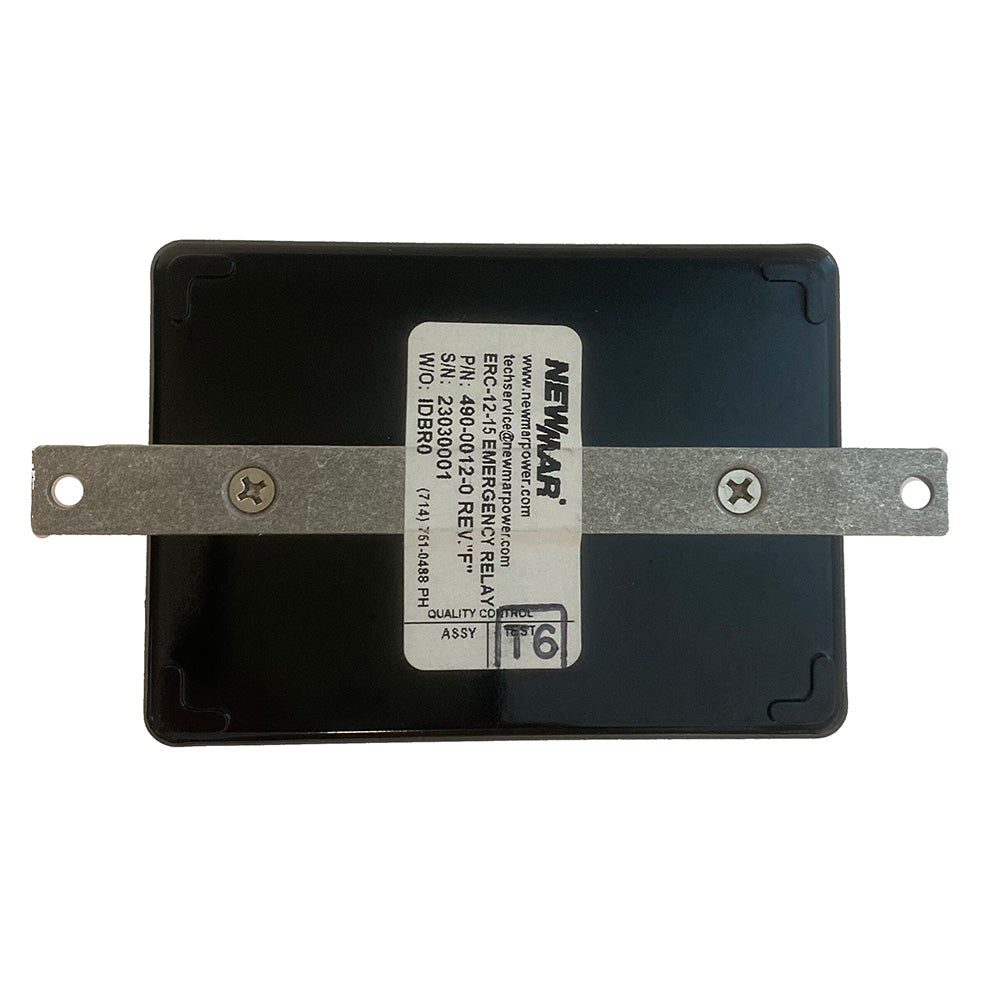

• Can be mounted vertically, horizontally, or upside down; two #10 sheet metal or wood screws are required. Inputs and outputs are isolated from the mounting bracket.
• Installation guidance: mount near the battery, avoid unventilated battery enclosures and areas where battery or other potentially explosive gases may be present, and reinstall terminal covers after wiring to prevent accidental shorting.
• If the power supply is out for an extended period, the standby battery may discharge; a supplemental charger may be needed to restore full charge promptly.
