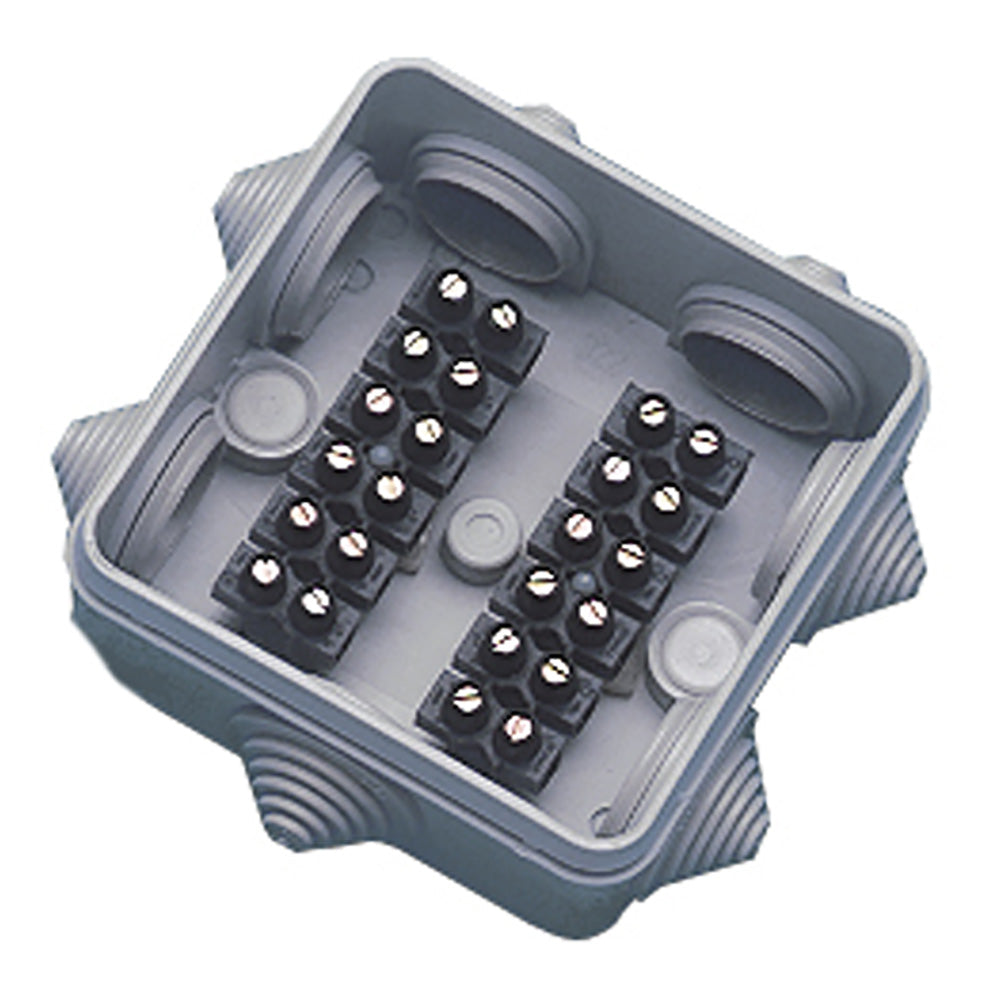

Newmar PX-2 IP55 Junction Box with Pre-Installed Connector Strips

Ensure secure and reliable electrical connections with the Newmar Power PX-2 Waterproof Junction Box. Engineered for the demanding marine environment, this robust junction box provides superior protection for wiring connections both above and below decks, even in areas prone to occasional spray. Its thoughtful design, including pre-installed connector strips that meet ABYC standards, simplifies installation while safeguarding your vital electrical systems. Upgrade your vessel's wiring integrity today.

Key Features:

• IP55 Waterproof Rating: Provides effective protection against water jets from any direction, ensuring reliability in marine and outdoor applications.
• Durable Construction: Crafted from rugged, non-corrosive, high-impact polypropylene for exceptional longevity and resistance to harsh environments.
• Watertight Seal: Features a secure snap-on cover that creates a dependable watertight seal, keeping connections dry and safe.
• Versatile Cable Accommodation: "Universal" cut-to-fit graduated diameter cable entries accommodate a wide range of cable sizes, from .14 to .81 inches (3.5 to 20.5 mm).
• Pre-Installed Connector Strips: Includes two 6-position molded nylon connector strips with "captive" screw compression wire terminals. This design secures wires without the need for lugs, protecting copper strands from cuts and breakage, and meets ABYC standards for safe marine installations.
• Flexible Installation: Multiple knockouts are provided for convenient conduit access, enhancing adaptability for various wiring configurations.
• Maximum Wire Gauge: Supports up to 16 AWG wire, suitable for common electrical requirements.
• Compact Dimensions: Measures 3.35 x 3.35 x 1.66 inches (8.5 x 8.5 x 4.2 cm), allowing for installation in confined spaces.

Recommended Applications: Ideal for all marine electrical and electronic installations where secure, waterproof wiring connections are paramount.
