Brand: Newmar Power

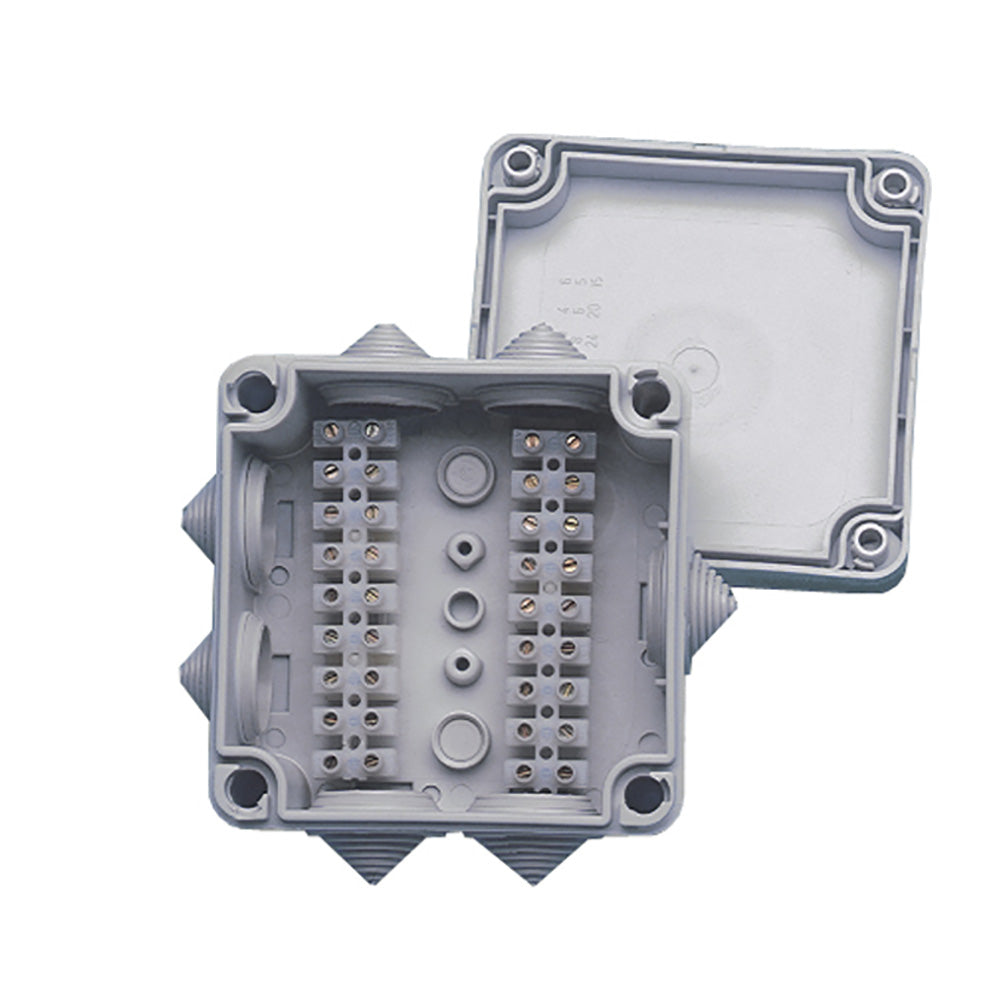

Newmar Power PX-3 Waterproof Junction Box with Connector Strips
Newmar Power PX-3 Waterproof Junction Box with Connector Strips
7 available
About this product
Newmar Power PX-3 is a waterproof junction box for making wiring connections above or below decks, including areas subject to occasional spray. Its polypropylene enclosure, snap-on cover, graduated cable entries, knockouts, and installed connector strips support organized electronic installations.
- Type: Junction box
- Construction: Rugged, non-corrosive, high-impact polypropylene
- Connector strips: 2 strips with 9 positions per strip
- Wire terminals: Captive screw-compression terminals with brass barrels and stainless steel fingers; maximum wire gauge 16
- Cable entries: 7 installed entries with a cable diameter range of 0.14 to 0.99 in. (3.5 to 25.5 mm); no spare entries
- Access: Multiple knockouts for conduit access and cut-to-fit graduated cable entries
- Enclosure size: 4.45 x 4.45 x 2.29 in. (11.3 x 11.3 x 5.8 cm)
- Water protection: IEC IP55 rating
- Cover: Snap-on cover designed to provide a watertight seal
- Part number: PX-3
The connector design secures wires with screw compression without requiring lugs, while keeping the screw from contacting the wire strands. The box is intended for electronic installations and is described by the vendor as meeting ABYC standards.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-114479
- Model / MPN
- PX-3
- Package dimensions (H × W × L)
- 3" X 7" X 9"
- Package weight
- 0.49 lb
Specifications
- Type
- Junction Box
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
