OceanLED Explore E2 Narrow Beam Underwater LED Light - Ultra White

The OceanLED Explore E2 is a compact, ultra-low profile underwater light designed for boats up to 65' (20m). Featuring an advanced internal driver, this model delivers up to 3000 fixture lumens in a narrow 20° circular beam, making it ideal for tight installation spaces.

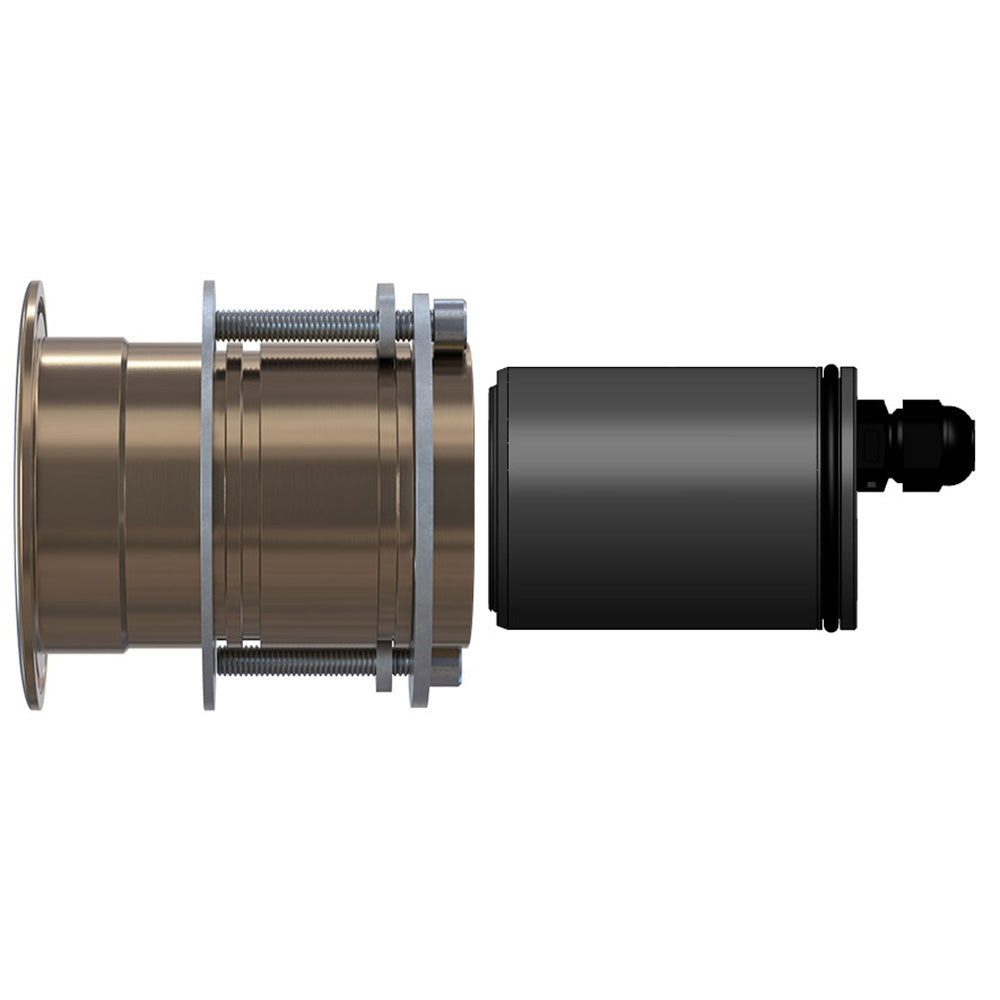

The E2 includes XFM technology, which allows the light body to be removed for maintenance or upgrades without the need to haul the boat. Built to withstand harsh marine environments, it features an IP69k-rated housing with additional protection against temporary in-hull submersion and a Tritonium-coated lens to resist fouling.

• Beam Angle: 20° Circular
• Output: 3000 fixture lumens, 6500k Ultra White
• Voltage: 10-30V DC (3.5A at 12V, 1.5A at 24V)
• Construction: AB2 Aluminium Bronze bezel and body with glass lens
• Installation: Requires 2.37" (60mm) hole cut-out; suitable for hulls up to 2.4" (60mm) thick
• Protection: IP69k certified; rear temporary submersion protection
• Manufacturer Part Number: E2002W
• Includes: Built-in driver and Fish Strobe mode

For optimal results, the light should be installed 10-12" below the waterline with 3-5' of spacing between units.
