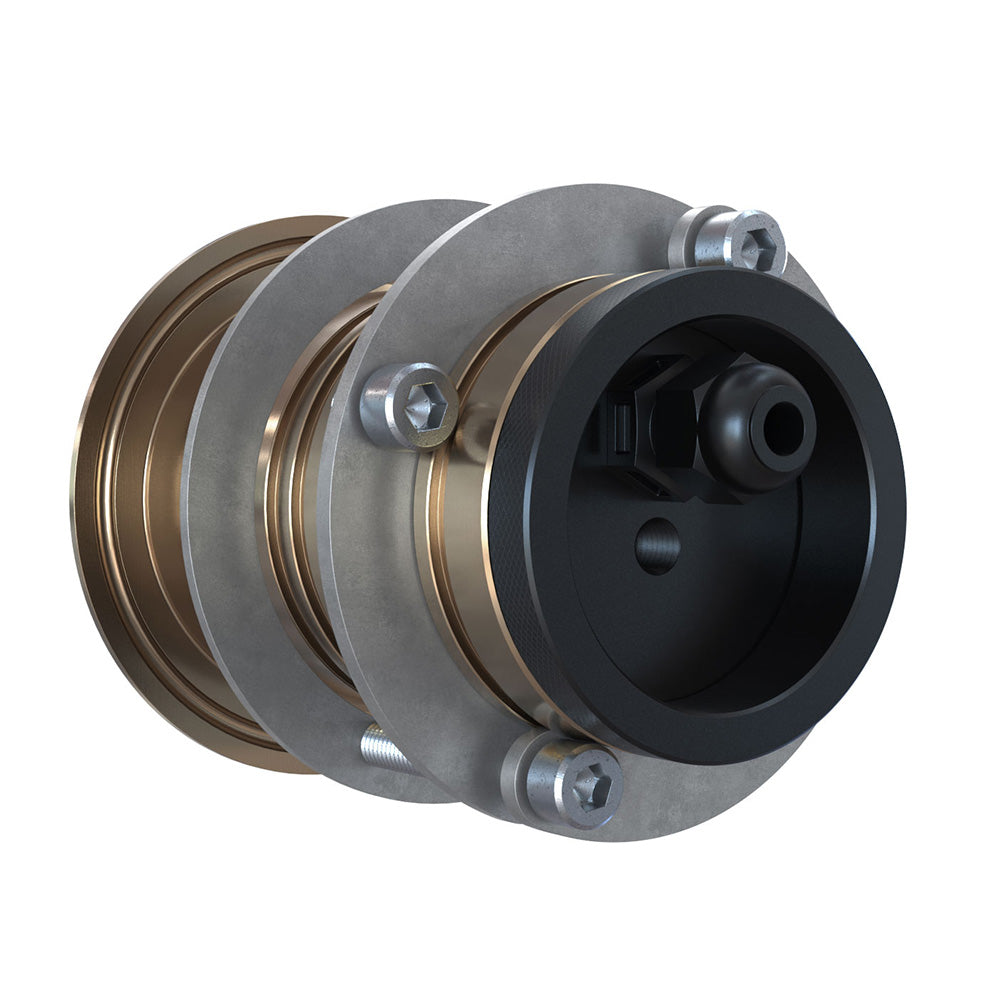

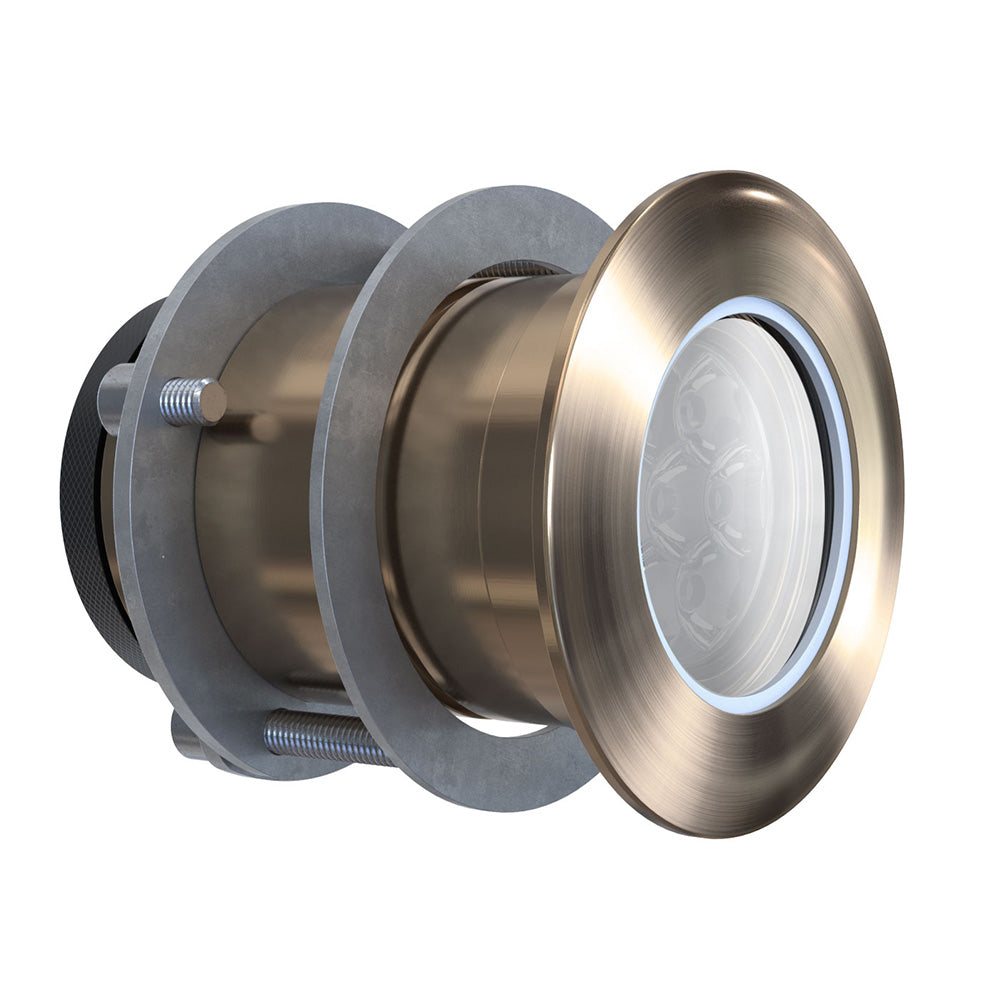

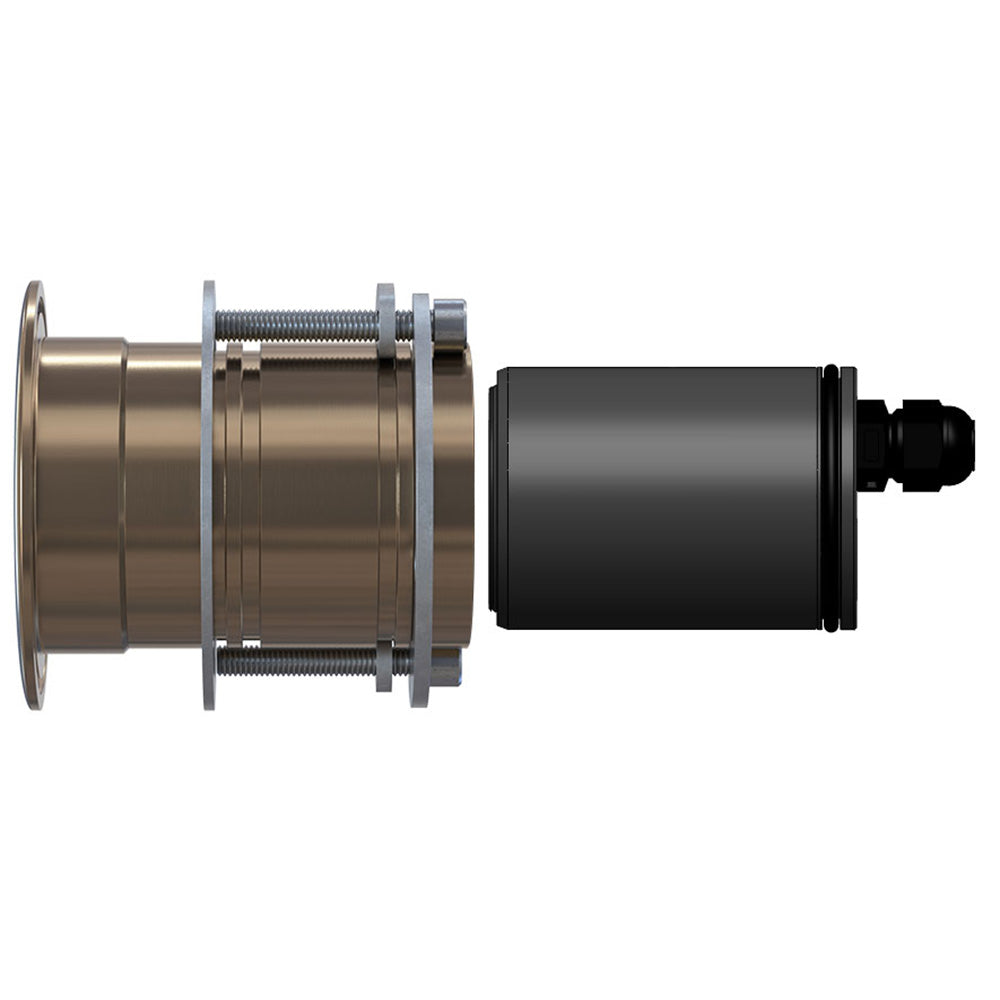

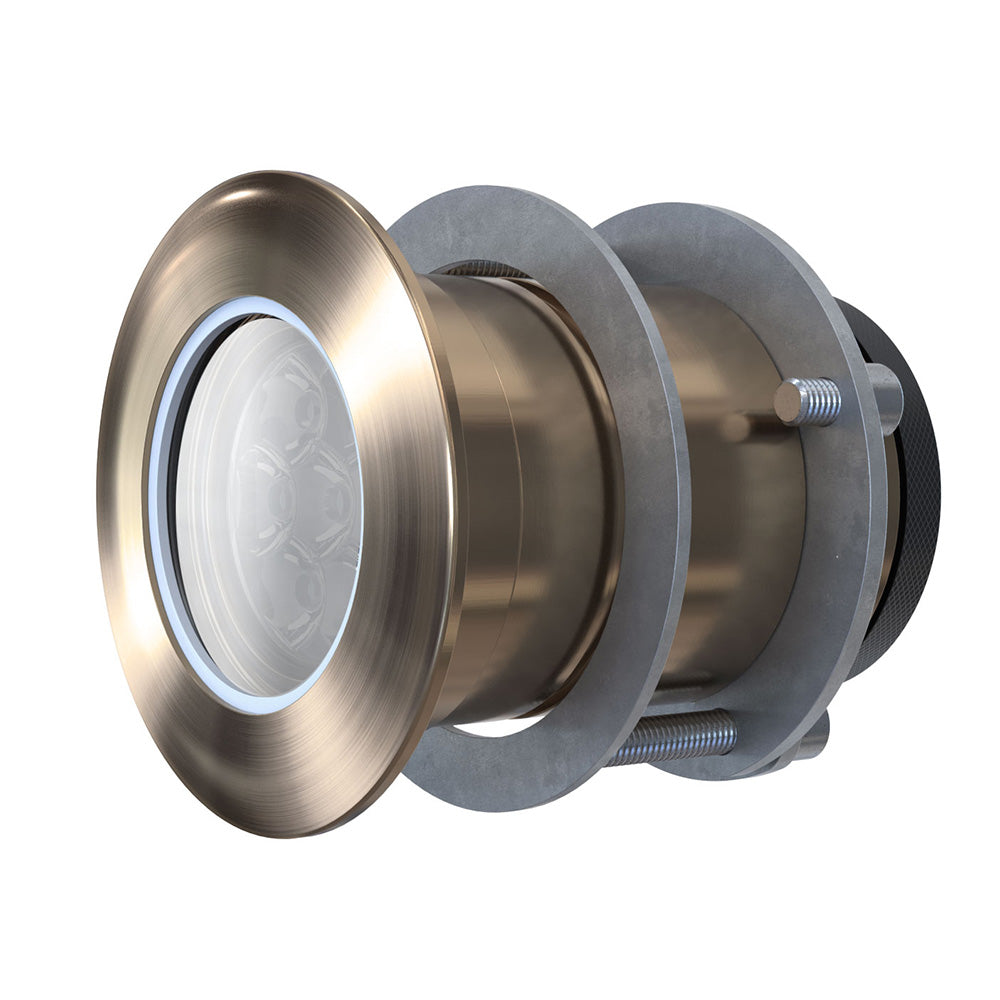

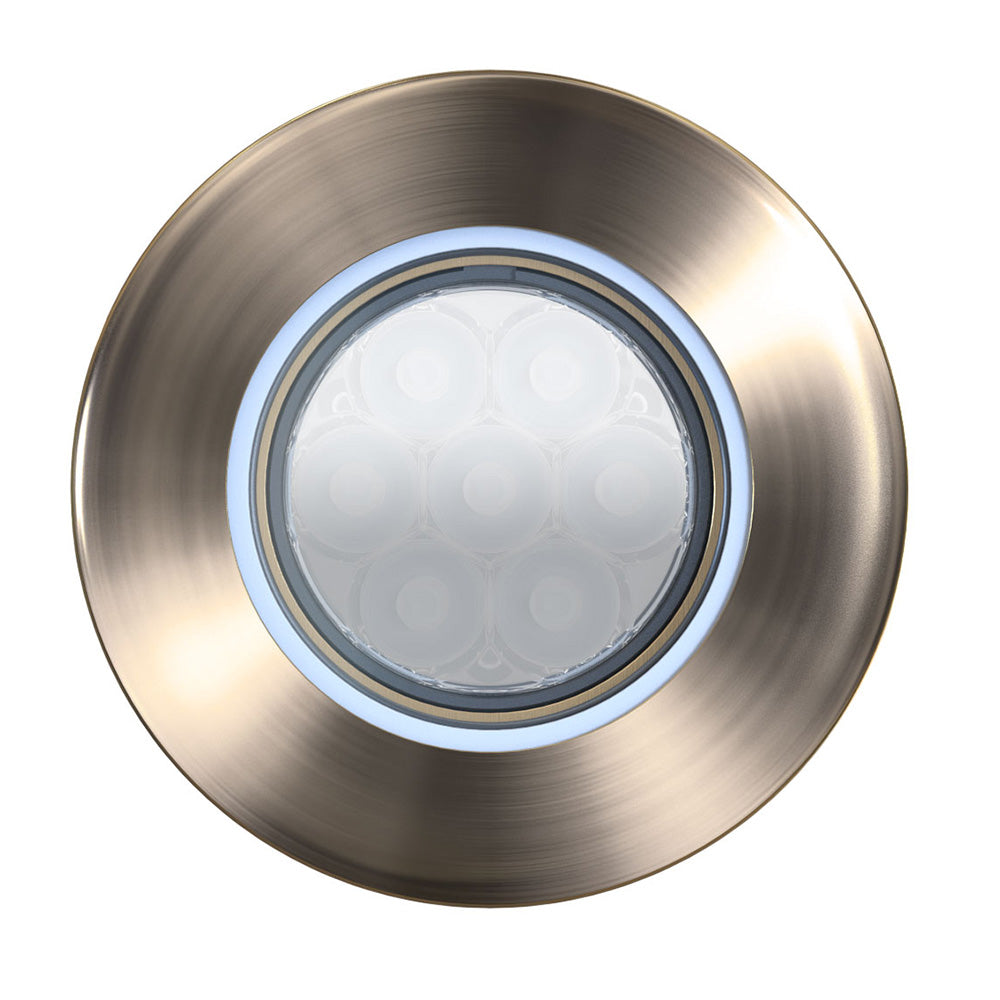

OceanLED Explore E2 Series Wide Beam LED Underwater Light, Ultra White, E2009W

The OceanLED Explore E2 is a compact, high-performance underwater light designed for boats up to 20 meters (65 feet). This model features a 90° x 20° elliptical wide beam and 3000 fixture lumens, providing consistent illumination for marine environments. Built with XFM (eXchangeable Flush Mount) technology, the internal light body can be removed from inside the hull for maintenance or upgrades without the need to haul the boat.

Key Features:

• Beam Angle: 90° x 20° Elliptical (Wide)
• Light Output: 3000 fixture lumens
• Color Temperature: 6500K (Ultra White)
• IP Rating: IP69k certified with additional rear temporary submersion protection
• Materials: AB2 Aluminium Bronze housing with a Tritonium-coated glass lens for anti-fouling properties
• Voltage: 10-30V DC (3.5A at 12V DC, 1.5A at 24V DC)
• Integrated driver with low-profile outer bezel (3.5mm profile)
• Includes Fish Strobe mode
• Manufacturer Part Number: E2009W

Installation Details:

• Cut-out Diameter: 60mm (2.37”)
• Total Diameter: 80mm (3.15”)
• Installation Depth: 25-30cm (10-12”) below the waterline
• Recommended Hull Spacing: 1-1.5m (3-5’)
• Maximum Hull Thickness: 60mm (2.4”)
• Minimum Internal Space Required: 172mm (6.78”)
