Brand: OceanLED

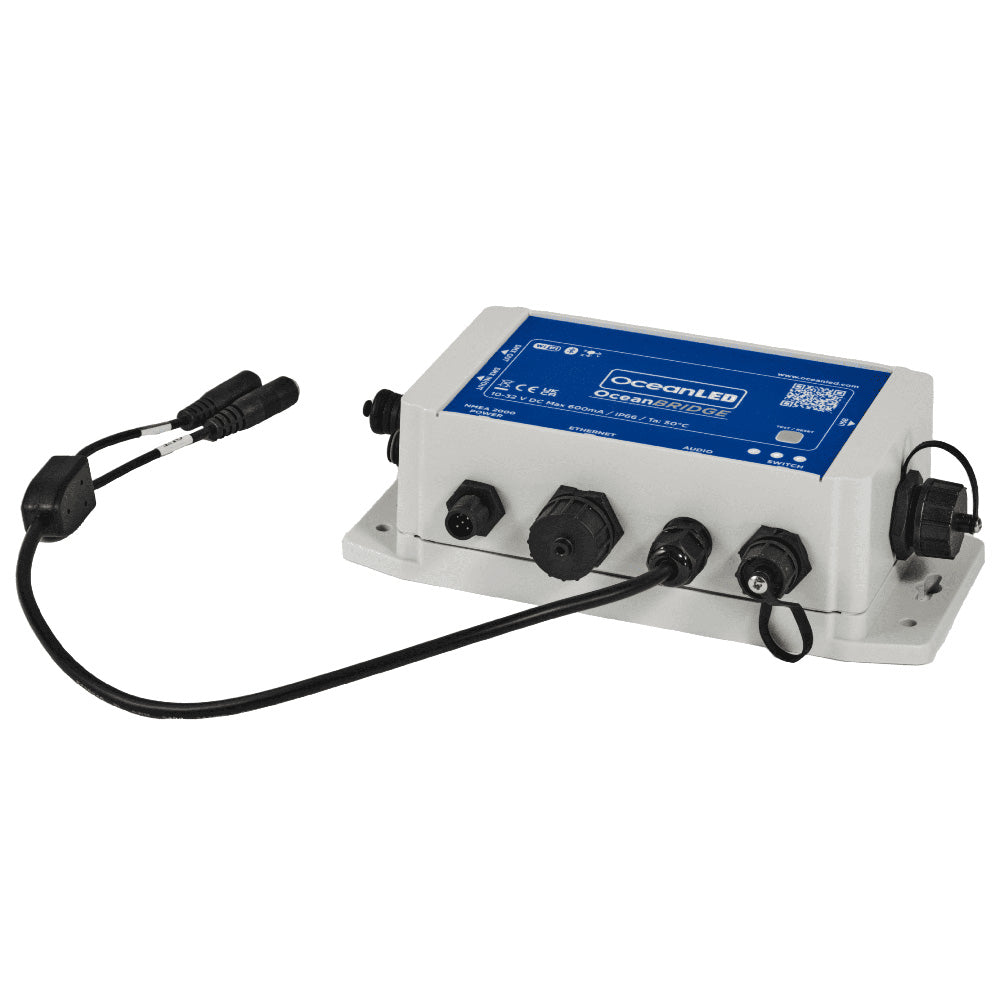

OceanLED OceanBridge Multizone Lighting Control Unit
OceanLED OceanBridge Multizone Lighting Control Unit
Sold out
The OceanLED OceanBridge is a versatile multizone lighting controller designed to provide centralized management of your boat's lighting system through an MFD, smartphone, or tablet. This system supports OceanLED products as well as most third-party DMX or on/off DC-powered lights, offering advanced features like music synchronization, color transitions, and custom scene scheduling.
Key Features
- Centralized control for up to 64 lights, expandable to over 150 lights via splitters
- Supports 10 customizable lighting zones and 10 programmable scenes
- Integrated Wi-Fi and Bluetooth for wireless control via smartphone or tablet
- NMEA 2000 and Ethernet connectivity for MFD integration with Garmin, Simrad, Lowrance, B & G, Raymarine, and Furuno
- Patent-pending movement-to-color functionality using an onboard gyroscope
- Supports up to 4 external instant-on switches
- Built-in audio inputs for light synchronization with music frequency
- Water-resistant housing rated to IP66
Technical Specifications
- Model Number: 013201
- Operating Voltage: 12/24V DC (up to 32V DC max)
- Power Consumption: 6W (500mA at 12V DC)
- Dimensions: 210mm x 91mm x 65mm
- Weight: 490g
- Construction: Polycarbonate
- Operating Temperature: -10°C to 50°C
- Audio: 3.5mm input and output jacks
Product facts
- CT SKU
- CT-114291
- Model / MPN
- 013201
- UPC / GTIN
- 5051803009061
- Package dimensions
- 3" X 7" X 11"
- Package weight
- 1.6 lb
