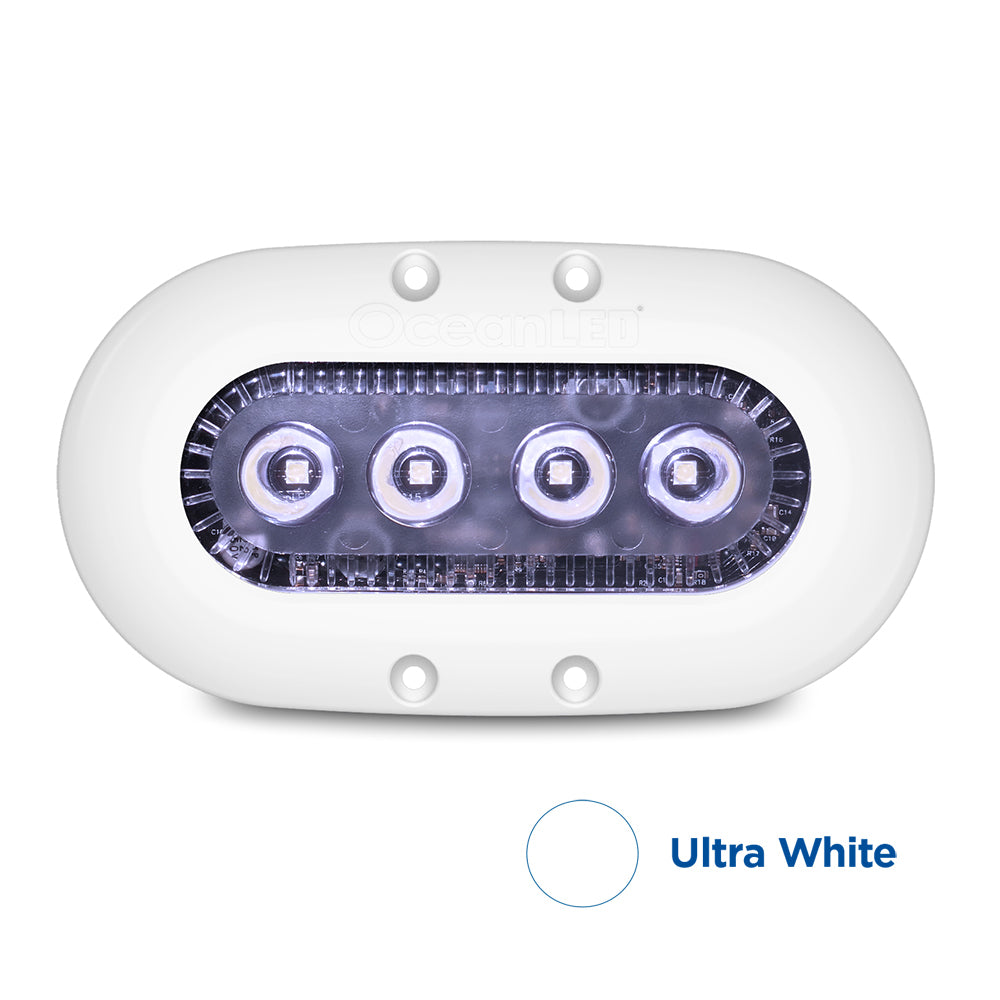

OceanLED X-Series X4 Underwater LED Light, White

The OceanLED X-Series X4 is a compact, high-performance underwater LED light designed for cruising and fishing vessels up to 30 ft. This light features four bright white LEDs capable of producing 1,150 fixture lumens with a 60° circular beam, providing excellent water penetration and coverage.

Built for durability and ease of use, the X4 includes a chemically resistant optical polymer body with a specialized Tritonium lens coating that allows marine growth to be wiped away easily. It also features an integrated driver and a randomized Fish-Strobe mode designed to attract bait fish.

• Performance: 1,150 fixture lumens; 40,000-hour LED life expectancy.
• Optics: 60° circular beam with collimator optics.
• Installation: Requires a 1/2 in. (12.5mm) hole for cable entry and simple screw mounting; 9-7/64 ft. (3M) hard-wired cable included.
• Electrical: Operates on 9-32V DC; draws 0.8A at 12V or 0.4A at 24V.

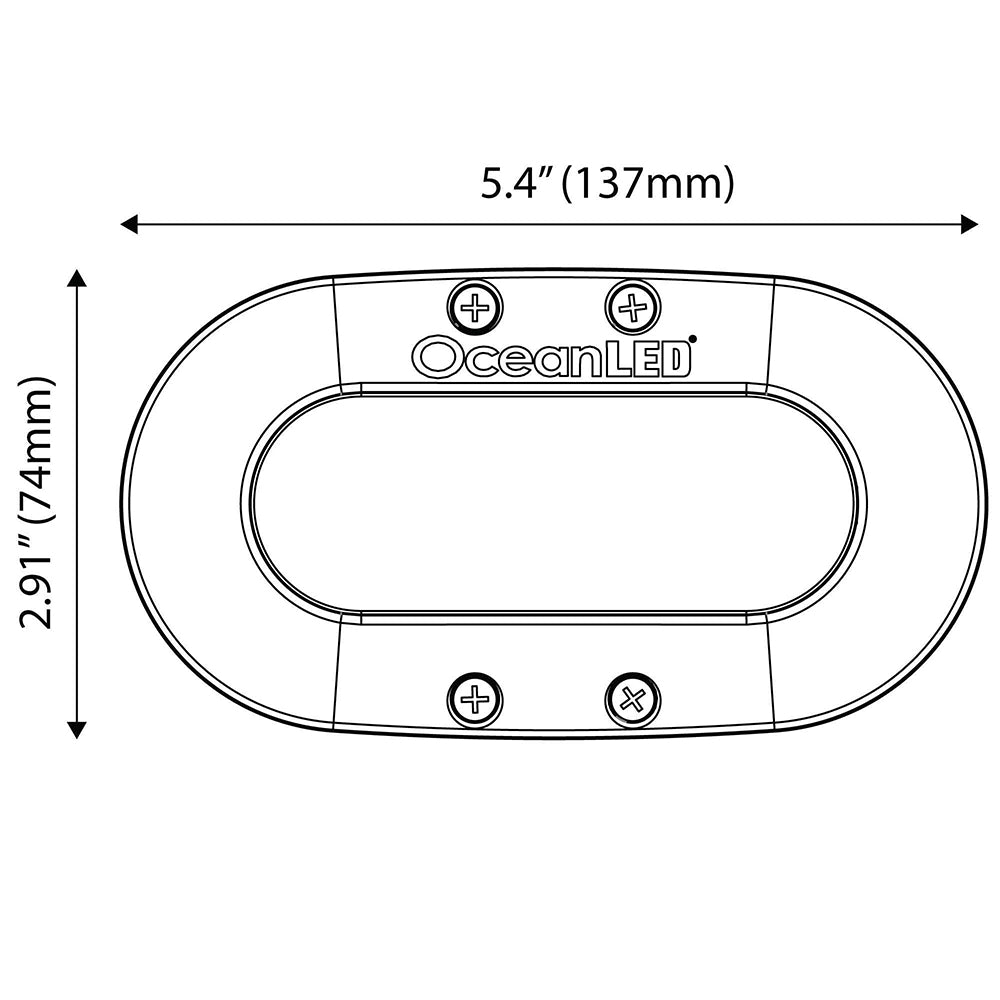

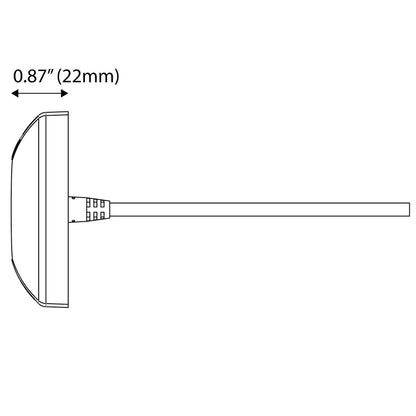

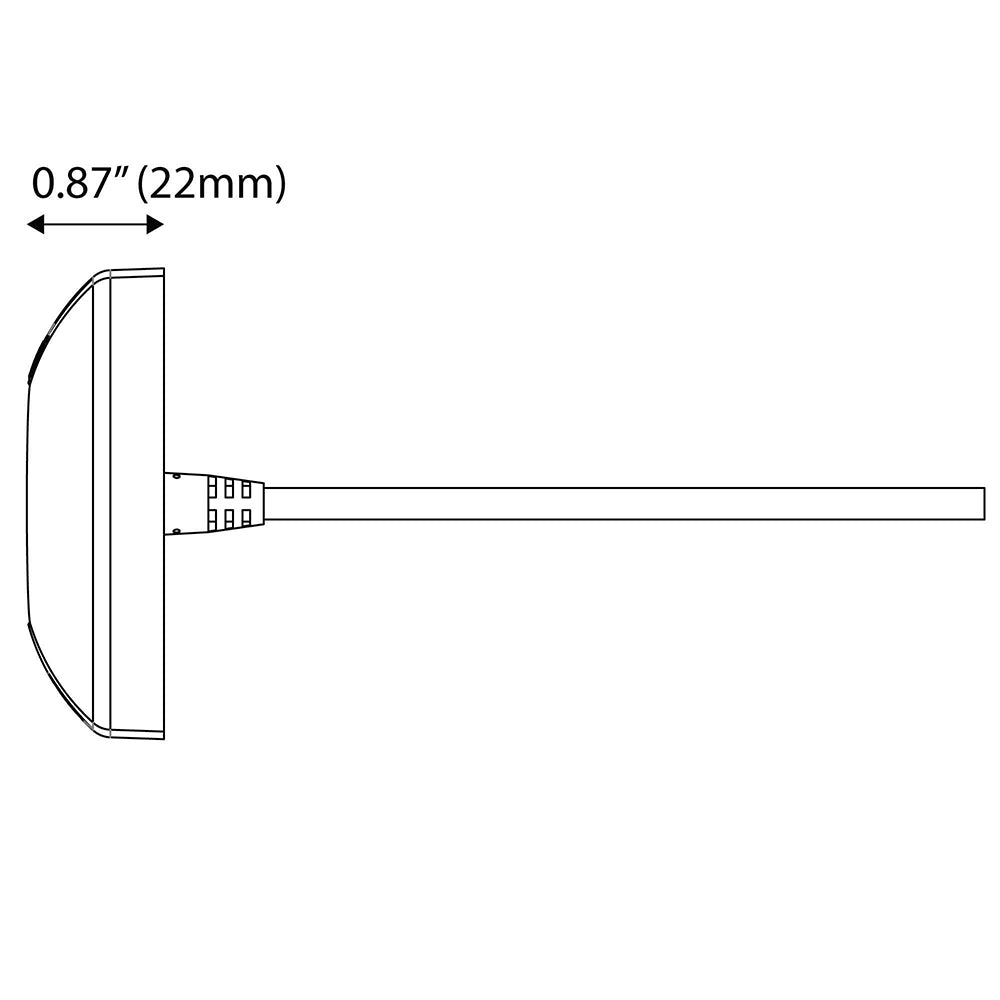

• Dimensions: 5.4 in. x 2.91 in. x 0.86 in.
• Protection: IP68 rated.
• Construction: Optical polymer body with Pilkington Optiwhite lens.
• Warranty: 2 years.

Mounting is recommended at a depth of 300mm below the waterline. For optimal coverage, spacing should be 2-3 ft. (0.5-1.0M) apart on the transom or hull.
