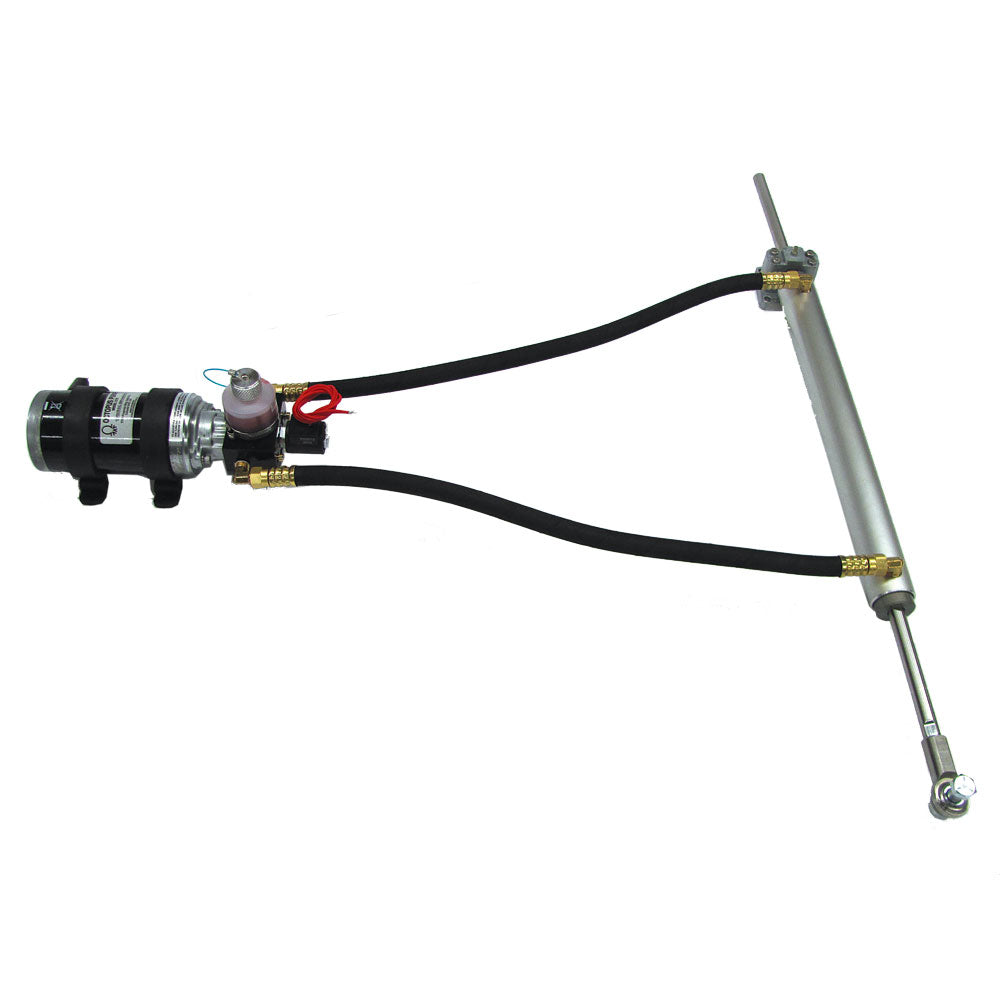

Octopus 12" Stroke Remote Hydraulic Linear Autopilot Drive, 12V

Achieve precise and reliable autopilot control on your vessel with the Octopus 12" Stroke Remote Hydraulic Linear Drive. Engineered for seamless integration with mechanical steering systems, this 12V linear actuator features a remote-mounted pump, offering flexible installation options in crowded lazarettes. Its robust design and efficient operation make it an ideal choice for serious mariners navigating demanding conditions. Upgrade your marine steering system for enhanced performance and peace of mind.

Key Benefits & Features:

• Flexible Remote Pump Design: Separates the pump from the drive cylinder, allowing for versatile installation in diverse boat layouts.
• Powerful Steering Force: Delivers a peak thrust of 400 kg (882 lbs) and a maximum rudder torque of 1,200 Nm (10,600 lbin) to handle heavy weather and high rudder loads.
• Highly Efficient Operation: Features a piston pump design that is three times more efficient than traditional gear pumps, halving battery consumption and extending autopilot range.
• Smooth & Responsive Control: Offers a variable flow rate (600cc-1.2 litre/min) and a suggested hard-over time of 14-16 seconds for quick and precise steering adjustments.
• Designed for Durability: Constructed with professional-grade materials, including a chrome-plated stainless steel piston rod and heavy-duty seals, for long service life in harsh marine environments.
• Simplified Maintenance: Features only five moving parts, enhancing reliability and ease of service.
• Pre-filled and Sealed: Shipped from the factory completely filled with oil, requiring no additional plumbing for immediate installation.
• Low Back-Drive: Ensures minimal resistance when the autopilot is disengaged, preserving a natural 'feel' for manual steering.
• Clear Fluid Monitoring: Equipped with a small translucent oil reservoir for easy fluid level checks.

Specifications:

• Part Number: OCTAF1212LAR12
• Voltage: 12V DC
• Stroke Length: 12 inches (305 mm)
• Cylinder Bore: 38 mm
• Max Boat Length: Up to 60 feet (18 meters)
• Max Vessel Displacement: Up to 33,000 lbs (15,000 kg)
• Average Current: 4-6 amps
• Max Current: 19 amps

Compatibility & Pairings:

This linear drive is designed for boats with mechanical steering systems. Autopilot electronics are sold separately, allowing for integration with a wide range of compatible autopilot computers and marine electronic distributors.
