Brand: Octopus Autopilot Drives

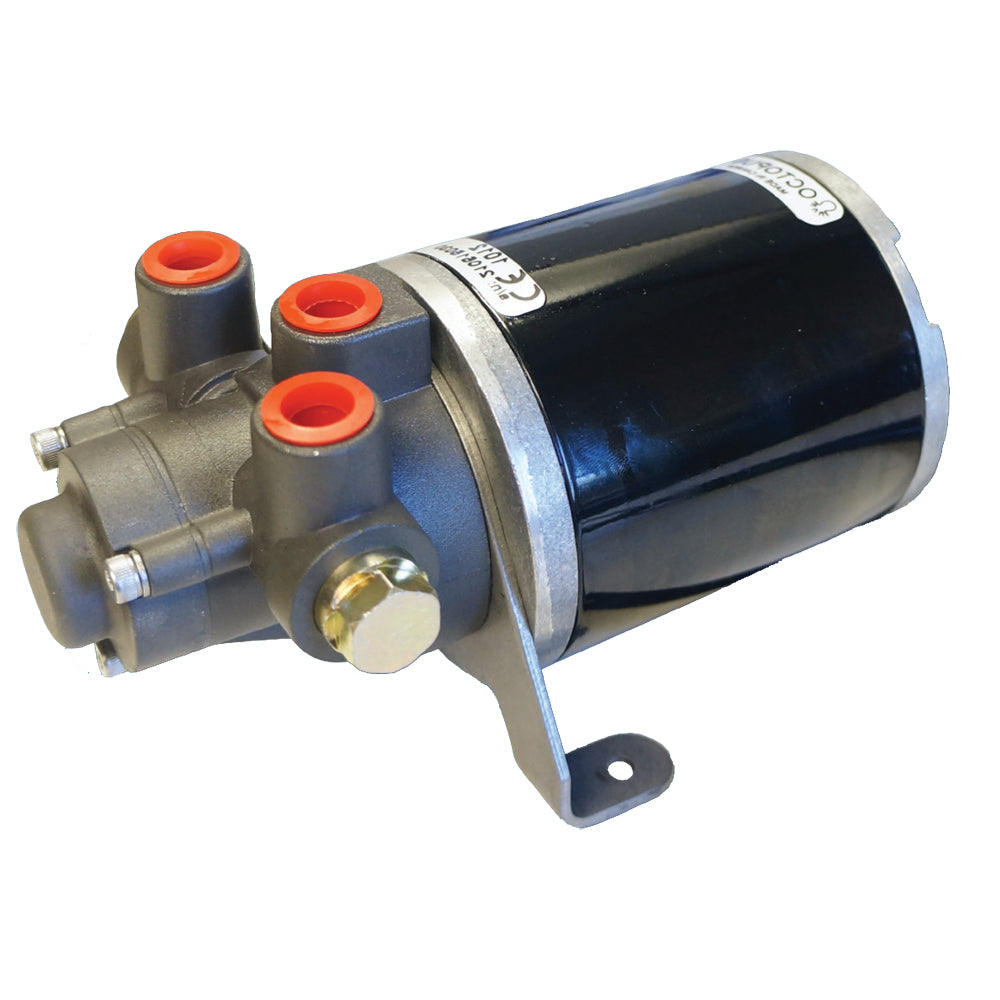

Octopus Autopilot Hydraulic Gear Pump, 12V, 16-24 cu. in. Cylinder
Octopus Autopilot Hydraulic Gear Pump, 12V, 16-24 cu. in. Cylinder
Sold out
About this product
The Octopus Hydraulic Gear Pump is a compact, high-efficiency drive unit engineered for reliable autopilot performance. Designed to be smaller, lighter, and quieter than traditional units, this pump provides significant installation flexibility and is particularly well-suited for sailboat applications.
- Efficiency: Offers lower power consumption and high flow rates, allowing for use with smaller autopilot course computers.
- Compatibility: Suitable for both balanced and unbalanced cylinders in the 16-24 cu. in. range.
- Operation: Features 12V voltage and an average current draw of 6.6A.
- Flow Rate: 1600 cc/min.
- Construction: IP55-rated for waterproofing, with an operating temperature range of 5°F to 167°F (-15°C to 75°C).
- Compliance: Features ignition protection per ISO 8846 and SAE J1171, and EMC compliance per EN 60945-9-2002.
- Model Number: OCTAFG1612.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-118627
- Model / MPN
- OCTAFG1612
- UPC / GTIN
- 628309201616
- Package dimensions (H × W × L)
- 4" X 4" X 10"
- Package weight
- 5.1 lb
Specifications
- Type
- Pumps/Drives
