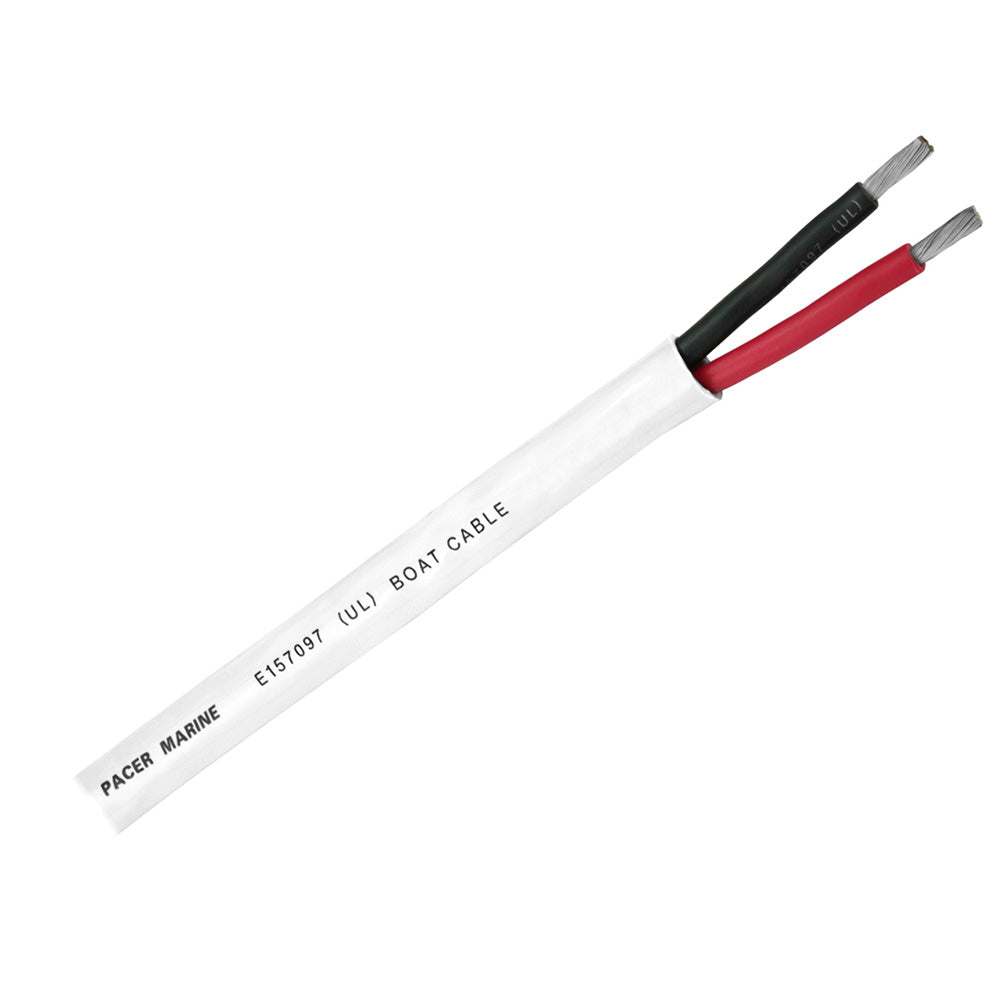

Pacer 12/2 AWG Duplex Marine Boat Cable, 500 ft. Spool, White

This Pacer 12/2 AWG duplex marine boat cable is designed for use in DC circuits and low-voltage AC applications. Manufactured with finely stranded, Type III tinned copper conductors, this cable offers high flexibility and corrosion resistance for demanding marine environments. The conductors are insulated with color-coded PVC and protected by an outer white PVC jacket, which is extruded to fill all internal voids, effectively preventing moisture and air buildup.

Key Features:

• Length: 500 ft.
• Gauge: 12/2 AWG (2 conductors)
• Conductor Material: Annealed fine stranded tinned copper (ASTM B172 Class K)
• Conductor Colors: Red and Black
• Outer Jacket Color: White
• Nominal Cable O.D.: 0.245 in. x 0.410 in.
• Voltage Rating: 600 V
• Temperature Rating: 105°C dry, 75°C wet, 60°C oil
• Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture
• Regulatory Compliance: UL 1426, RoHS, ABYC E-11.14, and US Coast Guard 33 CFR part 183

The interior wires feature a talcum powder coating, allowing for easier removal of the outer jacket during installation. This cable is manufactured in Sarasota, FL, USA.
