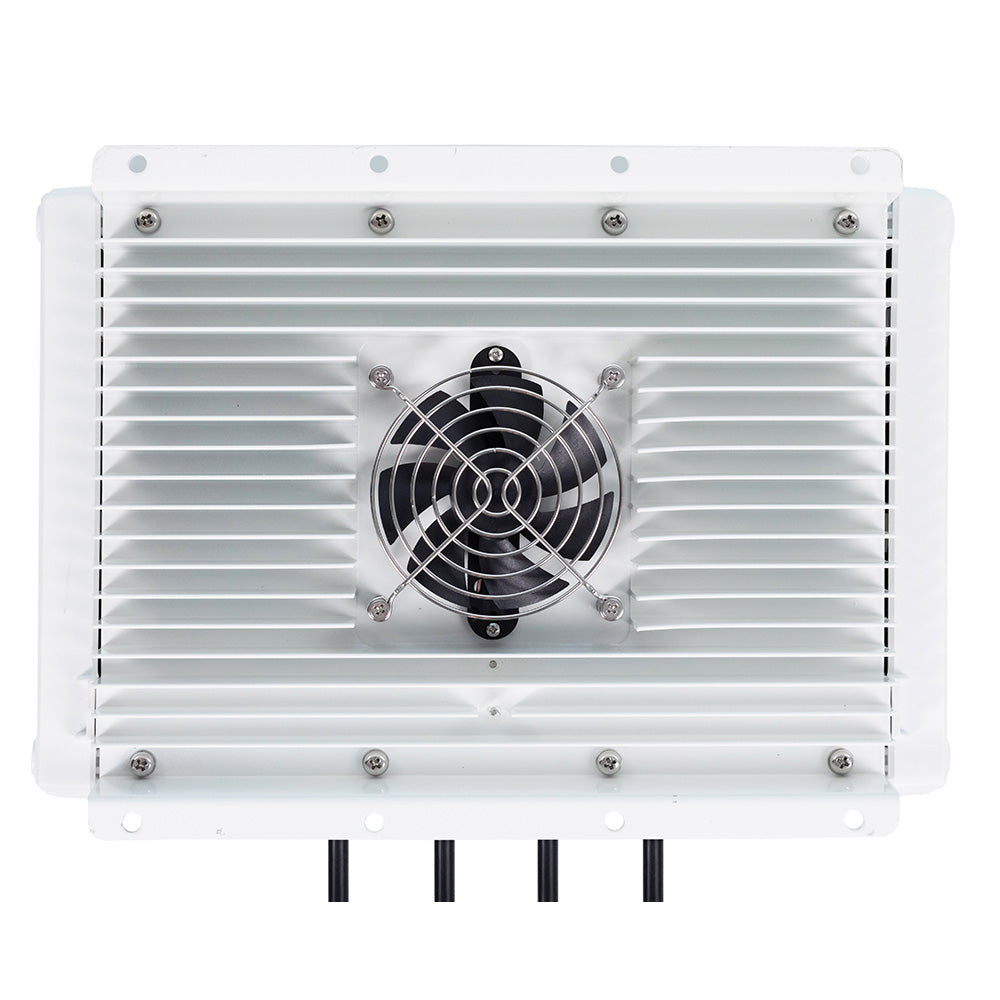

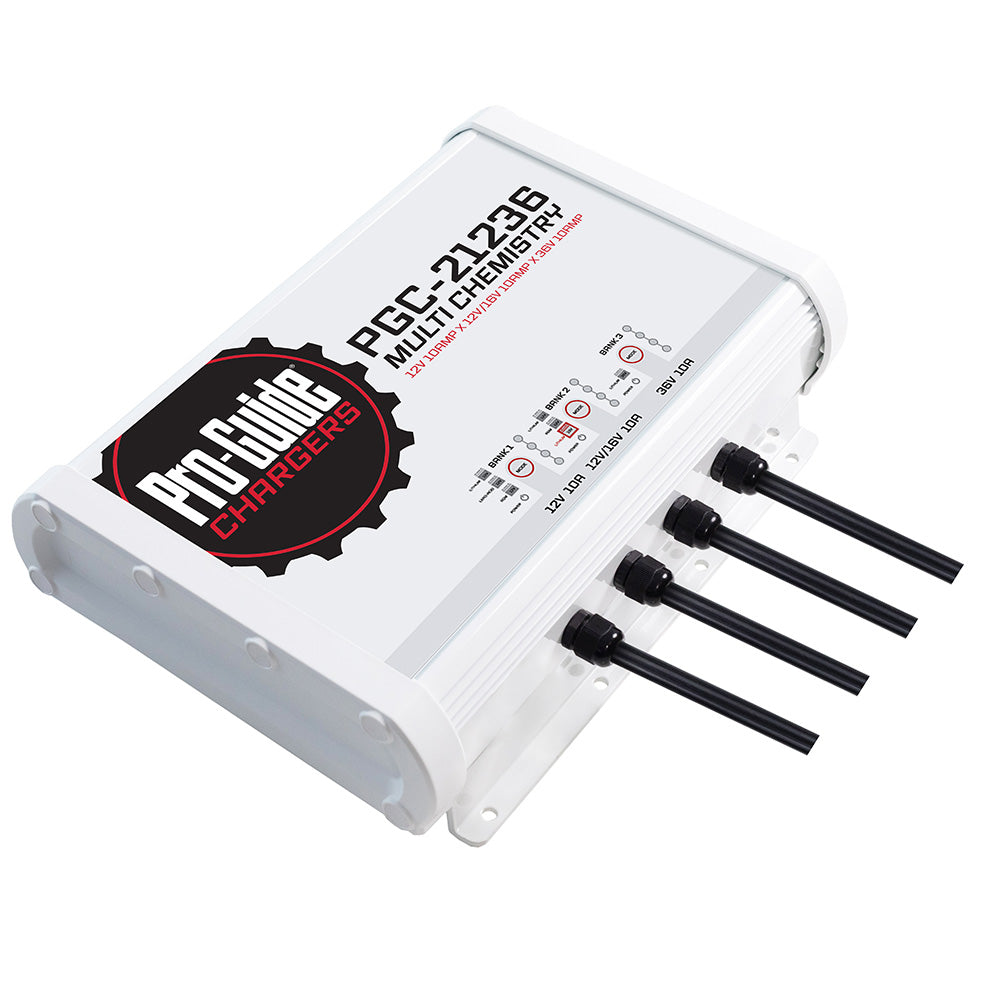

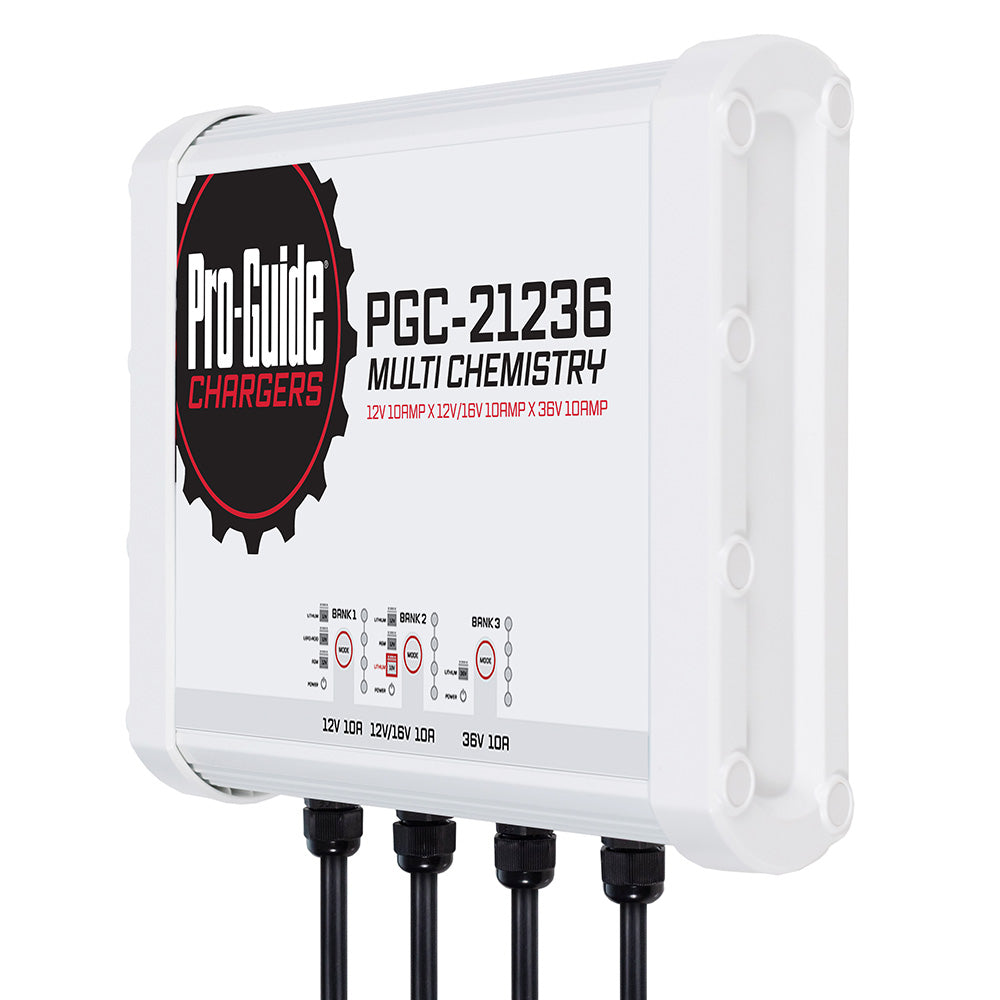

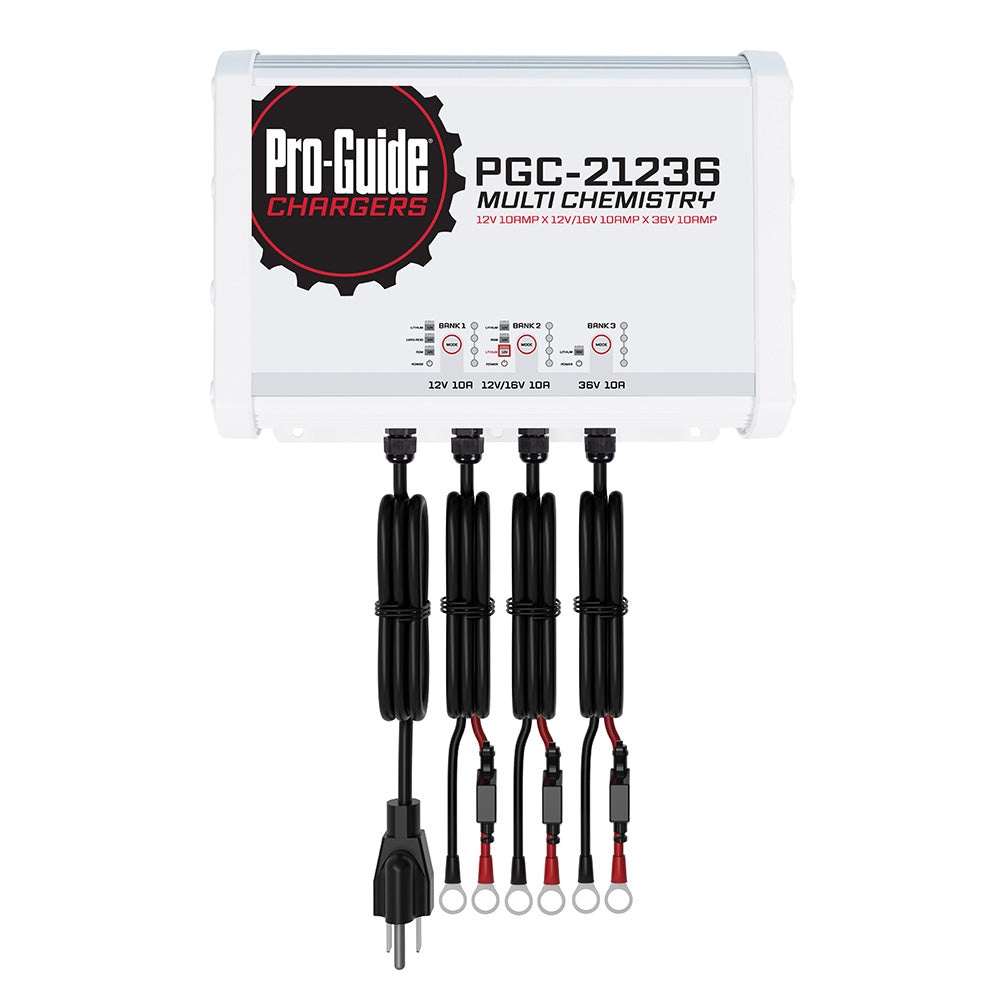

Pro-Guide PGC-21236 3-Bank On-Board Battery Charger, 30A, 12V/16V/36V Lithium and Lead Acid/AGM

The Pro-Guide PGC-21236 is a 3-bank on-board battery charger with one 12V bank, one selectable 12V/16V bank, and one 36V bank. It supports specified lead acid, AGM, and lithium battery chemistries for marine and watercraft applications.

• Battery compatibility: One 12V bank supports lead acid, AGM, or lithium batteries; the second supports 12V AGM, 12V lithium, or 16V lithium; the third supports 36V lithium.
• Output: 10A for each bank; DC 12V x 1, DC 12V/16V x 1, and DC 36V x 1.
• Input: AC 110-120V, 60Hz, less than 6A.
• Charging profiles: Each 12V bank can select from three charge profiles.
• Activation mode: Provides a short voltage supply to wake a sleeping lithium battery; holding the button for 3-5 seconds enters manual activation mode.
• Protection: Output over-voltage, output over-current, output short circuit, output reverse polarity, and over-temperature protection.
• Construction and size: IP68 rating; 14.7 in. length, 9.96 in. width, 3.86 in. height, and 24.7 lbs.
• Warranty: 2 Year Free and 4 Year Total Warranty.
• Manufacturer part number: PGC-21236.
• UPC: 810145911266.

The PGC line is designed for year-round connection and uses an intelligent charging algorithm to check each battery's state of charge on a scheduled timeline.
