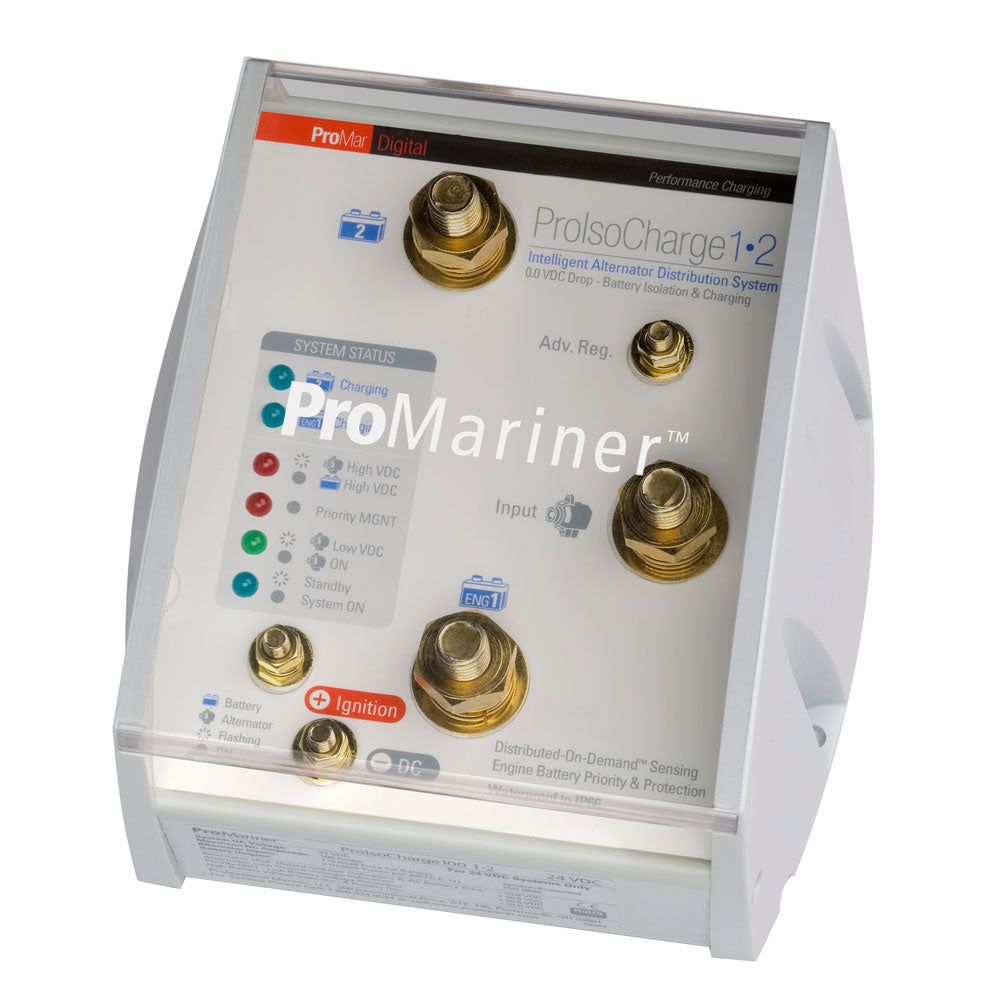

ProMariner ProIsoCharge 180 Zero Loss Battery Isolator, 12V 1-Alt 2-Bat

Intelligently manage and distribute power from your alternator to multiple battery banks with the ProMariner ProIsoCharge 180 Zero Loss Battery Isolator. This industry-changing design delivers digitally controlled alternator output distribution, actively protecting your engine start batteries while efficiently charging up to two additional battery banks. Experience superior charging performance with zero voltage loss, ensuring fully charged batteries and faster charge times for more time on the water. Upgrade your marine power system for optimal efficiency and peace of mind.

In the Box:

• ProMariner ProIsoCharge 180 Isolator Unit
• Terminal Stud Insulator Boots
• Protective Snap-On Safety Cover

Key Benefits & Features:

• Zero Voltage Loss Technology: Eliminates typical alternator voltage loss of 0.6VDC, ensuring maximum charging efficiency and faster battery rejuvenation.
• Intelligent Software Control: Prioritizes charging to battery banks under load and takes fully charged batteries offline to optimize distribution and protect engine battery health.
• Real-Time LED Indicators: Provides highly visible status updates for alternator power presence, battery bank charging status, and fault conditions like high/low output or over-voltage.
• Ignition Controlled Operation: Activates only when ignition power is on, providing controlled, on-demand battery bank management.
• Advanced Regulator Ready: Features a remote sense connection for precision alternator algorithm control, compatible with alternators equipped with advanced regulators.
• Robust & Waterproof Design: Built-in safety features include ignition protection and an IP66 waterproof rating for reliable performance in harsh marine environments.
• Easy Modular Installation: Designed for straightforward setup, saving space and installation time by eliminating the need for multiple voltage-sensitive relays.

Specifications:

• System Voltage: 12V DC
• Maximum DC Amps: 180 Amps
• Alternator Inputs: 1
• Battery Outputs: 2
• Dimensions (L x W x H): 6.15" x 5.875" x 3.125"
• Weight: 3 lbs

Recommended Pairings:

For a comprehensive power management solution, integrate with the ProMariner ProNauticP Series to fully leverage both shore power and on-the-water charging capabilities.
