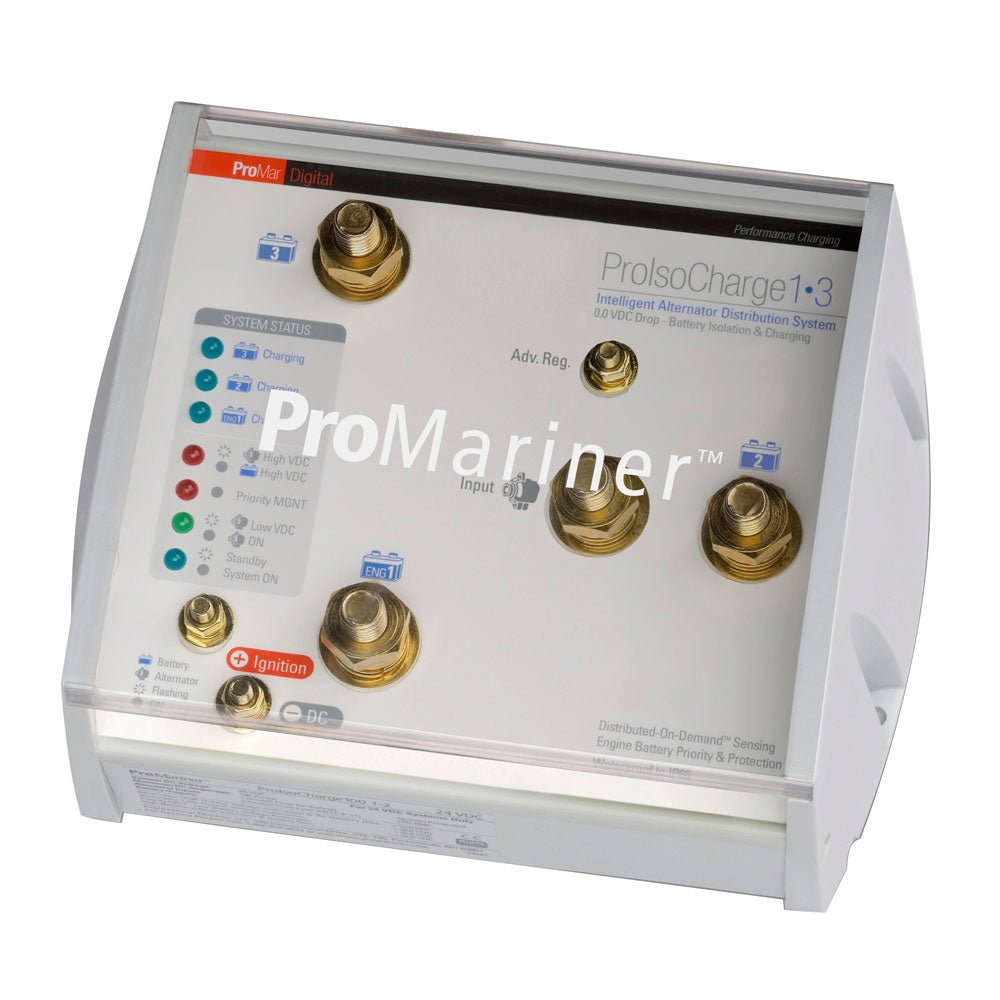

ProMariner ProIsoCharge Battery Isolator, 180A, 1-Alternator/3-Battery, 12V

The ProMariner ProIsoCharge 180-Amp Battery Isolator is a digitally controlled power distribution system designed for 12V DC marine electrical systems. This unit manages alternator output to charge up to three independent battery banks from a single alternator, eliminating the voltage loss typically associated with traditional diode-based isolators.

Key Features:

• Intelligent software prioritizes charging for battery banks under load while maintaining engine start battery health.
• Zero voltage loss design ensures faster charge times and fully charged batteries.
• Features real-time LED status indicators for alternator power, bank charging, and fault monitoring including high/low output and over-voltage conditions.
• Ignition-controlled operation activates only when the ignition is powered on.
• Includes an advanced regulator remote sense connection for precision alternator control.
• Waterproof construction rated to IP66 and ignition protected.
• Modular design includes terminal stud insulator boots and a protective snap-on safety cover.

Specifications:

• Model: 23125
• System Voltage: 12V DC
• Max Current: 180 Amp
• Configuration: 1 Alternator Input, 3 Battery Outputs
• Dimensions: 7.55 in. x 5.875 in. x 3.125 in.
• Weight: 5 lbs.
