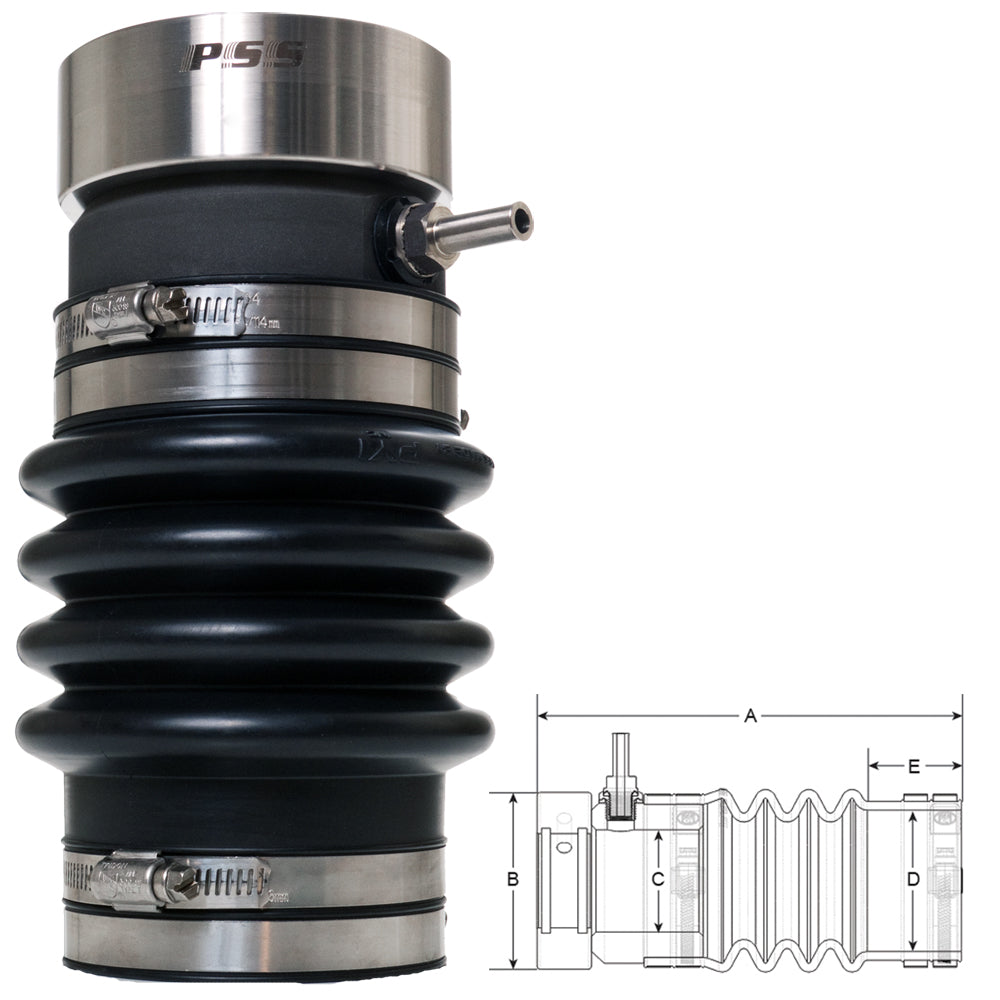

PSS Shaft Seal for 2-1/2 in. Shaft and 4 in. Stern Tube (02-212-400)

The PSS Shaft Seal is a mechanical face seal designed to replace traditional packing glands, providing a water-tight solution that eliminates the need for constant adjustment. This seal is recognized as standard equipment by major boat builders and is suitable for both new installations and retrofits.

Specifications:

• Shaft Diameter: 2-1/2 in.
• Stern Tube Diameter: 4 in.
• Total Length: 9.625 in.
• Compressed Length: 8.375 in.
• Rotor Diameter: 4.2 in.
• Carbon Cuff Diameter: 3.75 in.
• Stern Cuff Length: 2 in.
• Part Number: 02-212-400
• Certifications: Bureau Veritas, ABS, and Rina

The seal functions through a mechanical face contact between a rotating stainless steel rotor and a stationary carbon flange. The carbon flange is designed to float around the shaft to accommodate typical misalignment and vibration. Maintenance is required for the rubber bellows, which should be inspected regularly for wear and replaced every six years. The bellows may require more frequent inspection if exposed to ozone or sulfuric acid vapors from non-sealed batteries.

Included Items:
The maintenance kit includes one bellows, two o-rings, five set screws, four hose clamps, and an allen key.
