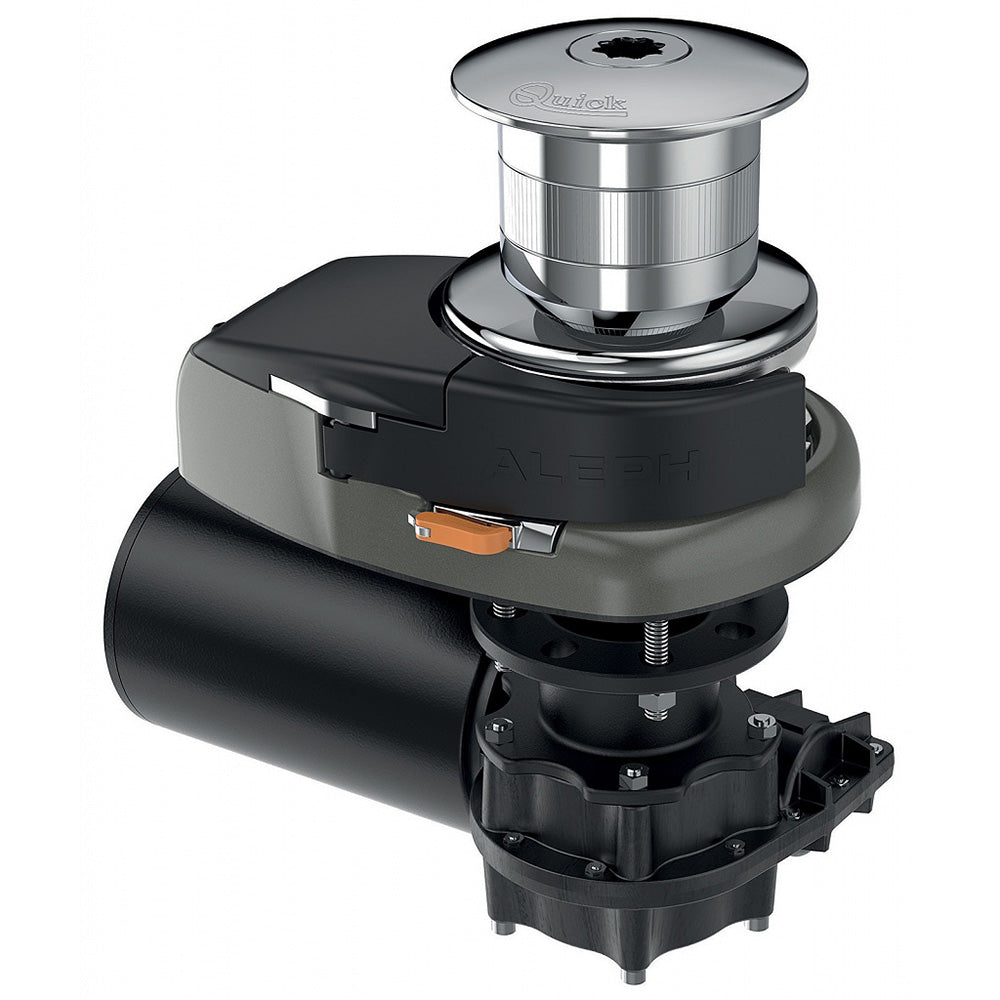

Quick Aleph AL3 1012D 12V 1000W Vertical Windlass with Drum
Quick Aleph AL3 1012D 12V 1000W Vertical Windlass with Drum
Sold out
About this product
The Quick Aleph AL3 1012D is a 12V vertical windlass with a 1000W motor, a drum, and a single gypsy for rope and chain. Its hard-anodized aluminum base, IP67 watertight motor, and manual recovery features support anchoring on boats with limited deck space.
- For boats 33–46 ft.
- 10 mm (3/8 in.) gypsy; requires 5/8 in. three-strand polyester rope.
- Includes T6315-12 solenoid, gearbox, clutch handle, mounting hardware, and pressure lever.
- Integrated sensor and magnet for chain counter.
- Manual free-fall system, emergency manual lift system, and inspection lid.
- Technopolymer gearbox; listed for 700W / 1000W models.
- Motor: 1000W, 12V.
- Maximum pull: 1,000 kg (2,204 lb); maximum working load: 370 kg (816 lb); working load: 120 kg (264 lb).
- Current draw at working load: 140A.
- Maximum chain speed: 39.6 m/min (129.2 ft/min); at working load: 20.4 m/min (66.9 ft/min).
- Weight: 19.7 kg (43 lb).
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-168024
- Model / MPN
- FSAL1012D010B00
- UPC / GTIN
- 8057090231762
- Package dimensions (H × W × L)
- 11" X 16" X 17"
- Package weight
- 46.0 lb
