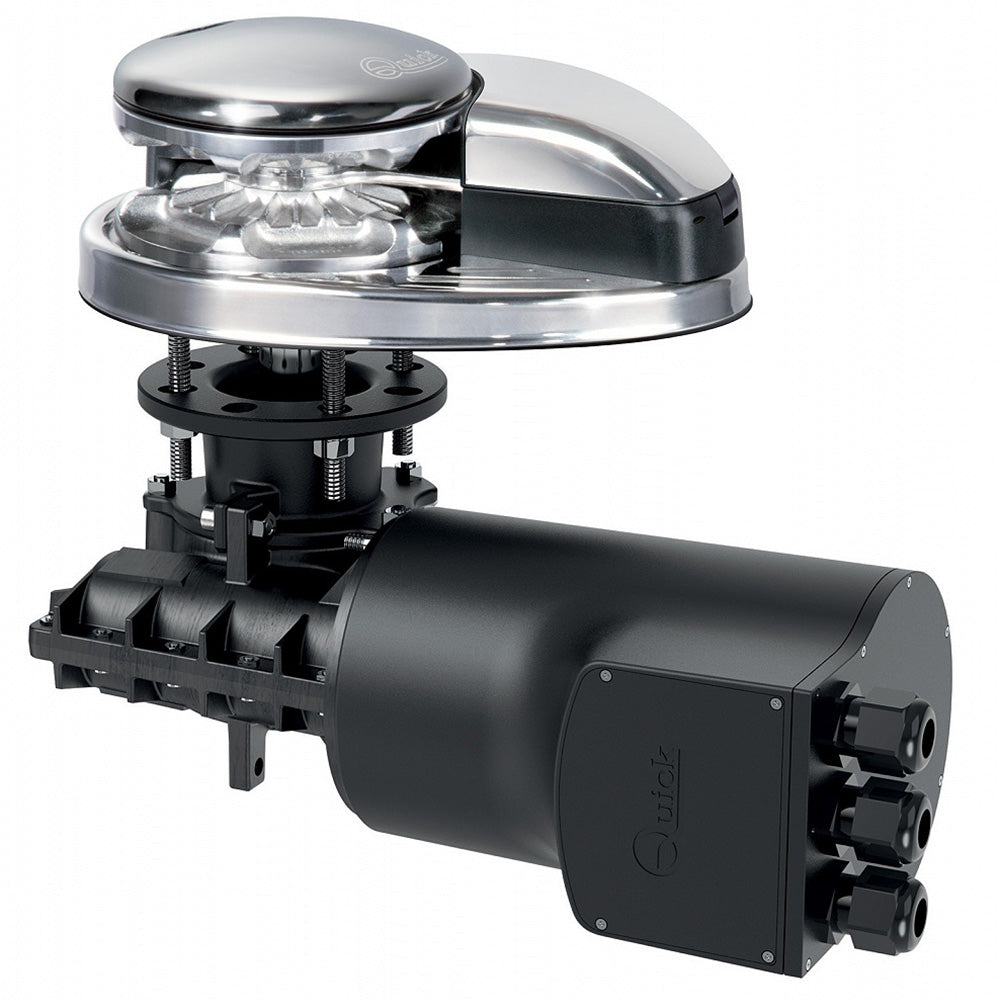

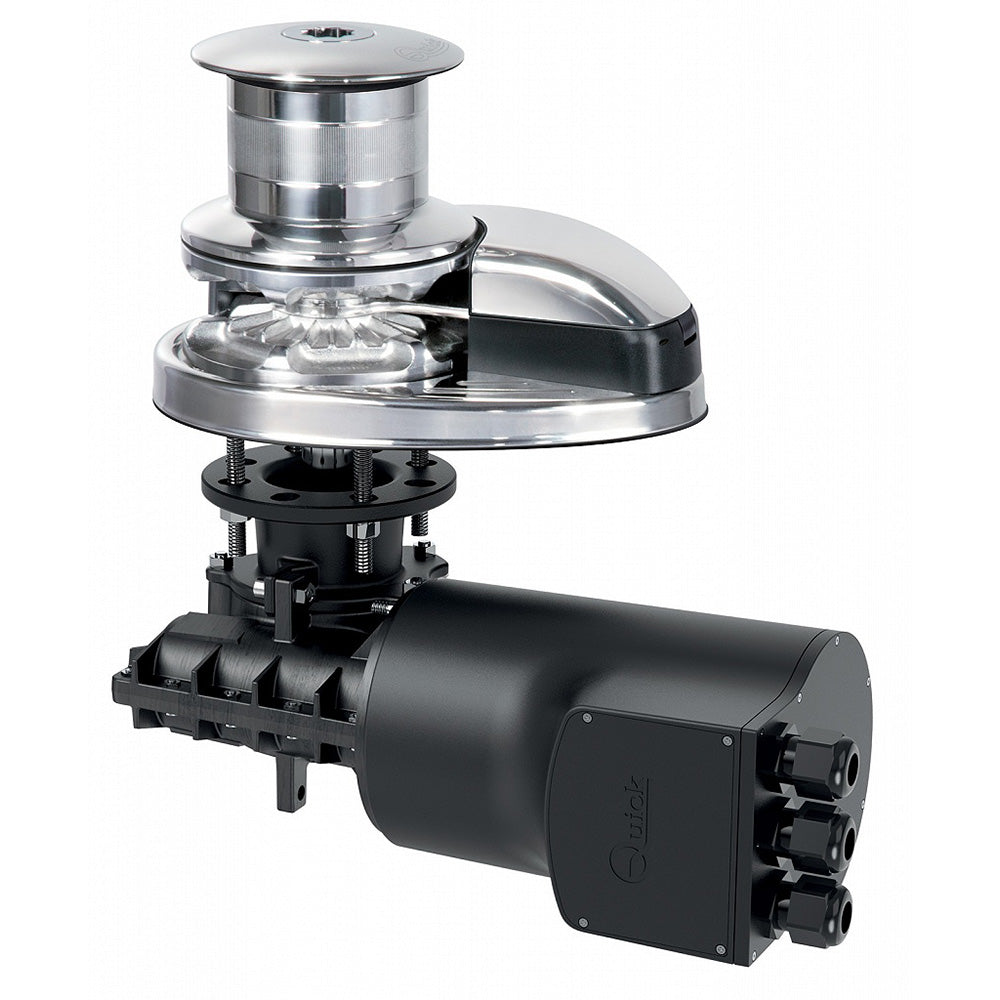

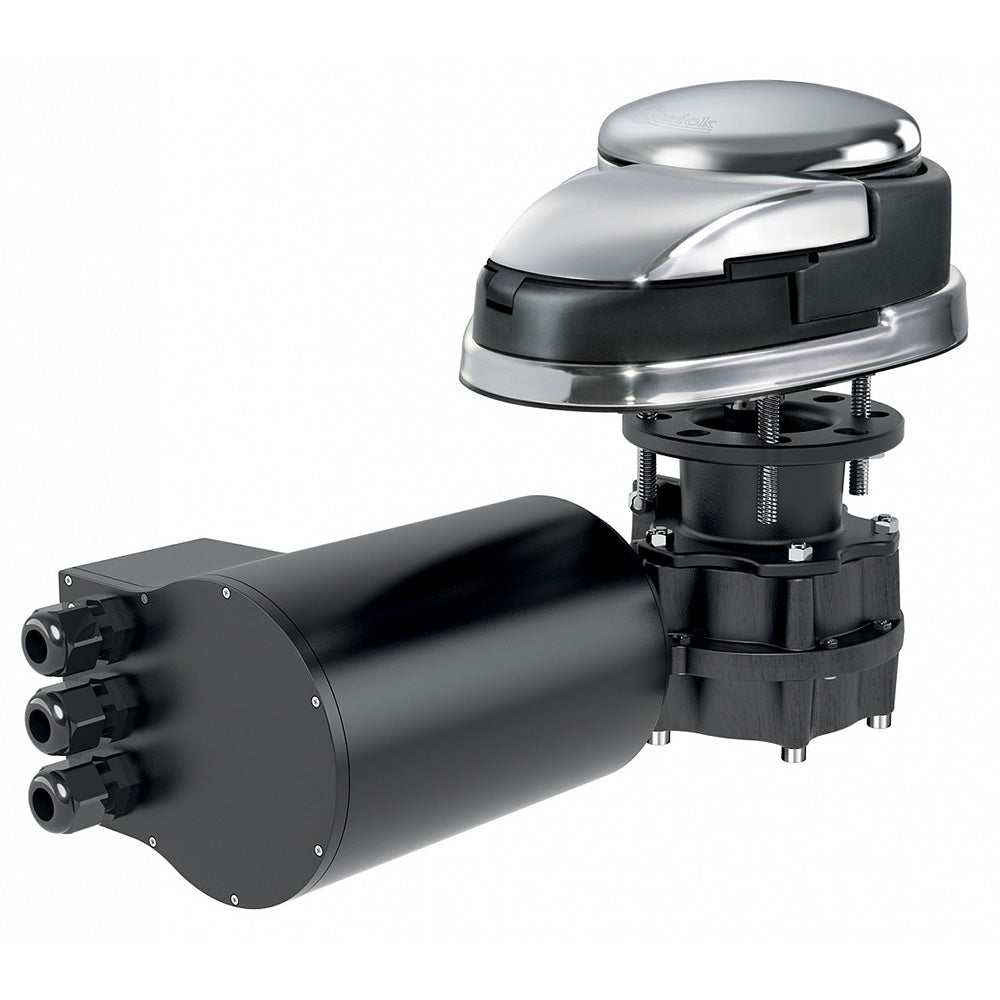

Quick Prince DP3 1012 Vertical Windlass, 1000W 12V, 8mm (5/16 in.) Gypsy
Quick Prince DP3 1012 Vertical Windlass, 1000W 12V, 8mm (5/16 in.) Gypsy
Sold out
About this product
The Quick Prince DP3 1012 is a vertical-axis windlass built for boats ranging from 33 to 46 ft. This unit features a durable stainless steel AISI 316 base with a hard oxide anodized aluminum finish and is designed to handle both rope and chain on a single gypsy. It includes an integrated sensor and magnet for use with a chain counter, a manual free-fall system, and a pressure lever.
- Motor power: 1000 W, 12 V
- Maximum pull: 2204 lb (1000 kg)
- Maximum working load: 816 lb (370 kg)
- Working load: 264 lb (120 kg)
- Chain speed (max): 129.2 ft./min (39.6 m/min)
- Chain speed (at working load): 66.9 ft./min (20.4 m/min)
- Rope size: 5/8 in. for 8 mm or 5/16 in. gypsy
- Construction: Stainless steel AISI 316 base, anodized aluminum hard oxide, technopolymer gearbox
- Watertight rating: IP67
- Weight: 38 lb (17.4 kg)
- Model number: FSDP31012008B00
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-120091
- Model / MPN
- FSDP31012008B00
- UPC / GTIN
- 8057090226188
- Package dimensions (H × W × L)
- 11" X 16" X 17"
- Package weight
- 42.6 lb
Specifications
- Chain - Diameter (Inches)
- 0.31
- Freefall
- Yes
- Rope Diameter (Inches)
- 0.56-0.63
- Vertical/Horizontal
- Vertical
- Type
- Quick Prince DP3 1012 Windlass - 1000W - 12V - 8mm (5/16") G
