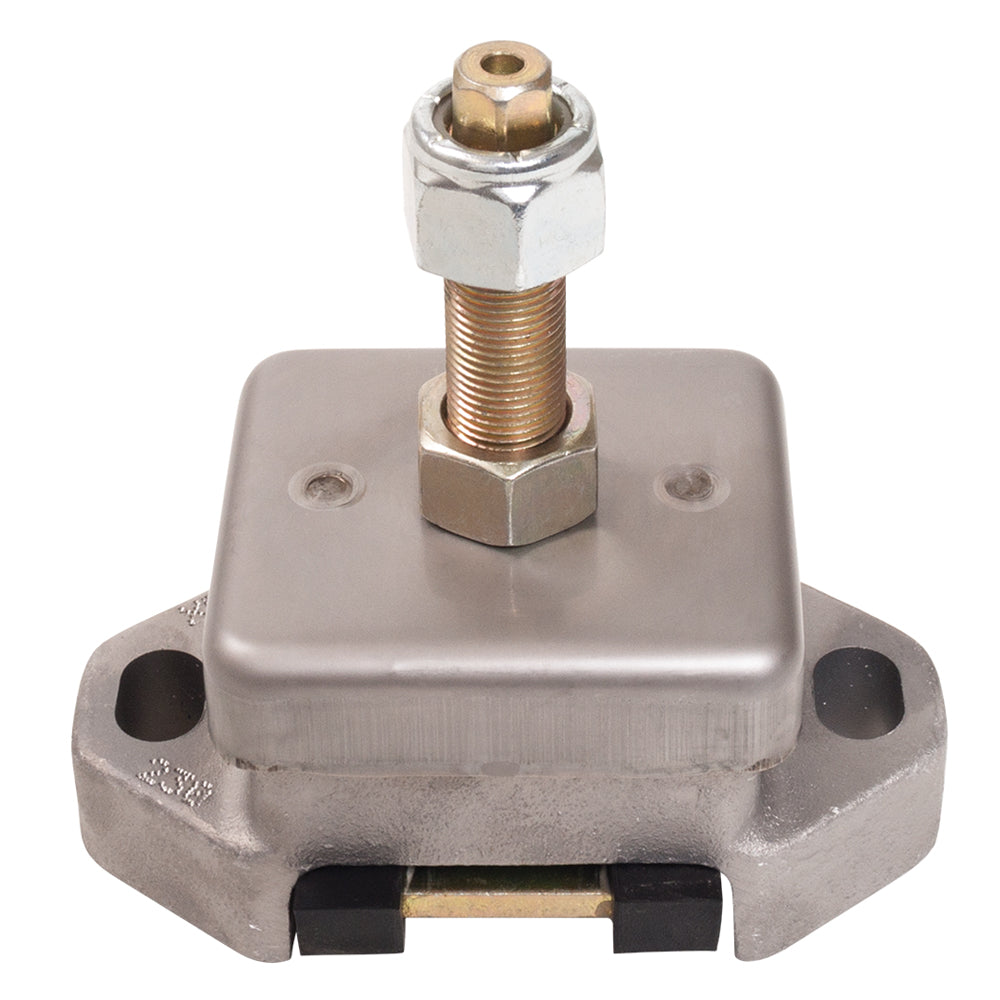

R & D Marine 800-011 Flexible Engine Mount, 5/8" Stud, 120-410lbs – Made in UK

Ensure robust engine support and superior vibration isolation in demanding marine environments with the R & D Marine 800-011 Flexible Engine Mount. Expertly engineered, this mount effectively absorbs forward and reverse propeller thrust while significantly isolating drivetrain vibrations from your hull, contributing to a smoother, quieter vessel. Its fail-safe design provides enhanced security for your engine. Proudly designed and manufactured in the United Kingdom, this mount delivers professional-grade performance and durability.

Key Benefits & Features:

• Optimized Vibration Isolation: Designed to be soft vertically and at right angles to the crankshaft, effectively dampening engine vibrations for a more comfortable experience.
• Propeller Thrust Absorption: Stiff enough to absorb both forward and reverse propeller thrust, maintaining drivetrain integrity and alignment.
• Fail-Safe Design: Engineered with a fail-safe mechanism and capable of withstanding roll-over tests, providing critical security and peace of mind.
• Corrosion Resistance: All steel components are zinc-plated and passivated, offering robust protection against harsh marine conditions.
• Oil Shield Protection: The rubber component is safeguarded by an oil shield, preventing degradation from petroleum-based products and extending mount longevity.
• Precision Alignment: Features height adjustability and slotted base mounting holes, simplifying the installation process and ensuring accurate drivetrain alignment.
• Broad Capacity: Each mount supports a substantial capacity range of 120-410 lbs (55-186 kg), suitable for a wide array of marine engines.
• Compact Footprint: Features a 4-inch (101.6mm) footprint and a 5/8-inch stud for secure and adaptable installation.

Selection Guidance:

For optimal performance, consult your engine and transmission specifications to determine the combined weight. R & D Marine recommends distributing 60% of the total weight to the rear mounts (transmission side) and 40% to the front mounts (opposite transmission side) when the center of gravity is not known. Choose a mount where your calculated per-mount weight falls nearest the middle of its capacity range.

Suitable For:

This mount is ideal for 1, 2 & 3 cylinder short stroke high-speed engines, 4 cylinder engines, and 6 cylinder and over engines.
