Raritan Smart Toilet Control Circuit Board with Enclosure, STC548W
Raritan Smart Toilet Control Circuit Board with Enclosure, STC548W
4 available
About this product

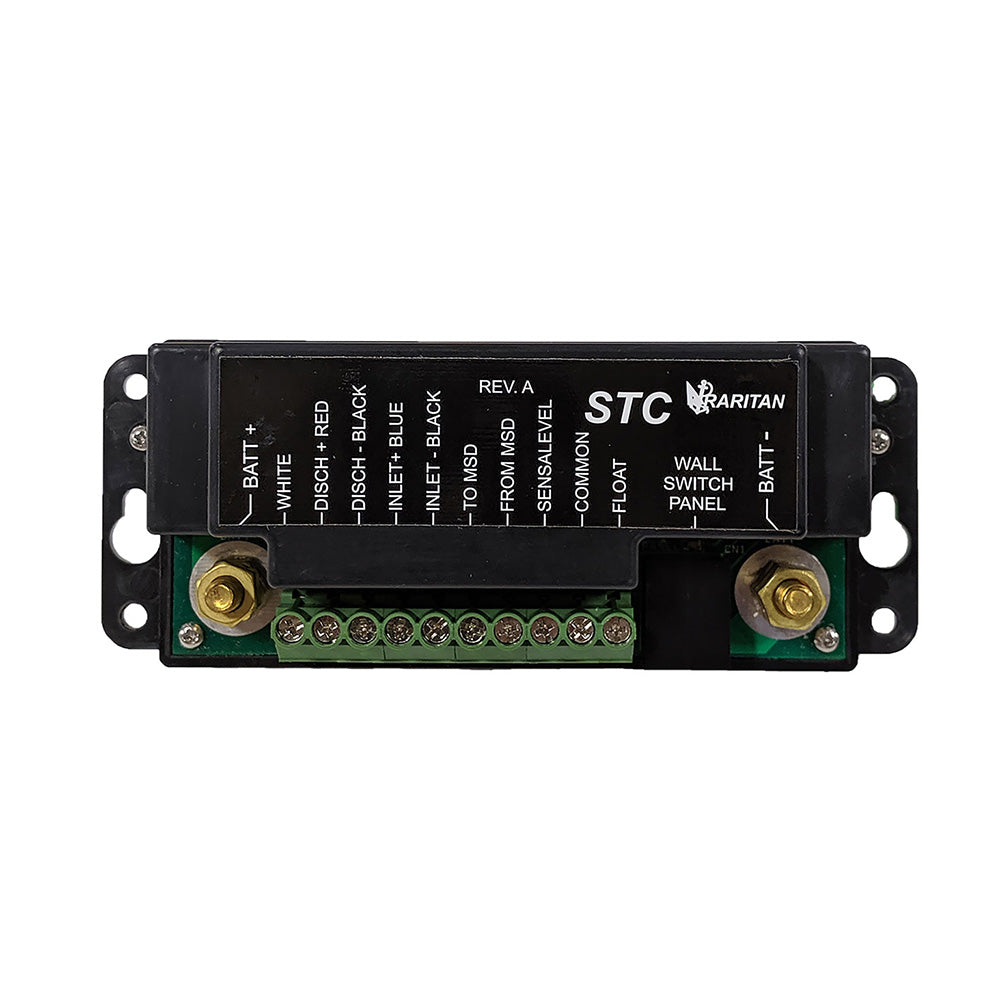

The Raritan Smart Toilet Control Circuit Board with Enclosure is the circuit board component of the Smart Toilet Control system for marine electric-flush toilets. The system uses a controller, panel, and 7-foot cable to manage programmed flush functions and water use.
- Part number: STC548W
- System components: Controller, panel, and 7-foot cable
- Flush functions: Normal, water-saver, water-only, and empty-only controls
- Programmable settings: Initial fill, discharge, and final fill timing can be programmed from the panel
- Holding tank status: When wired, the panel displays a full holding tank status; normal and water-saver buttons are disabled while water-only and empty functions remain available
- Protection: Reverse-polarity protection
- Operating detail: Water-only and empty-only functions have an eight-second time limit; reverse polarity should be corrected within 10 minutes
- Regulatory note: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See P65Warnings.ca.gov for more information.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-114137
- Model / MPN
- STC548W
- UPC / GTIN
- 085462032981
- Package dimensions (H × W × L)
- 3" X 8" X 9"
- Package weight
- 0.91 lb
Specifications
- Type
- Raritan Smart Toilet Control Circuit Board
