Raymarine ACU-100 Actuator Control Unit (E70098)
Raymarine ACU-100 Actuator Control Unit (E70098)
Last one
About this product

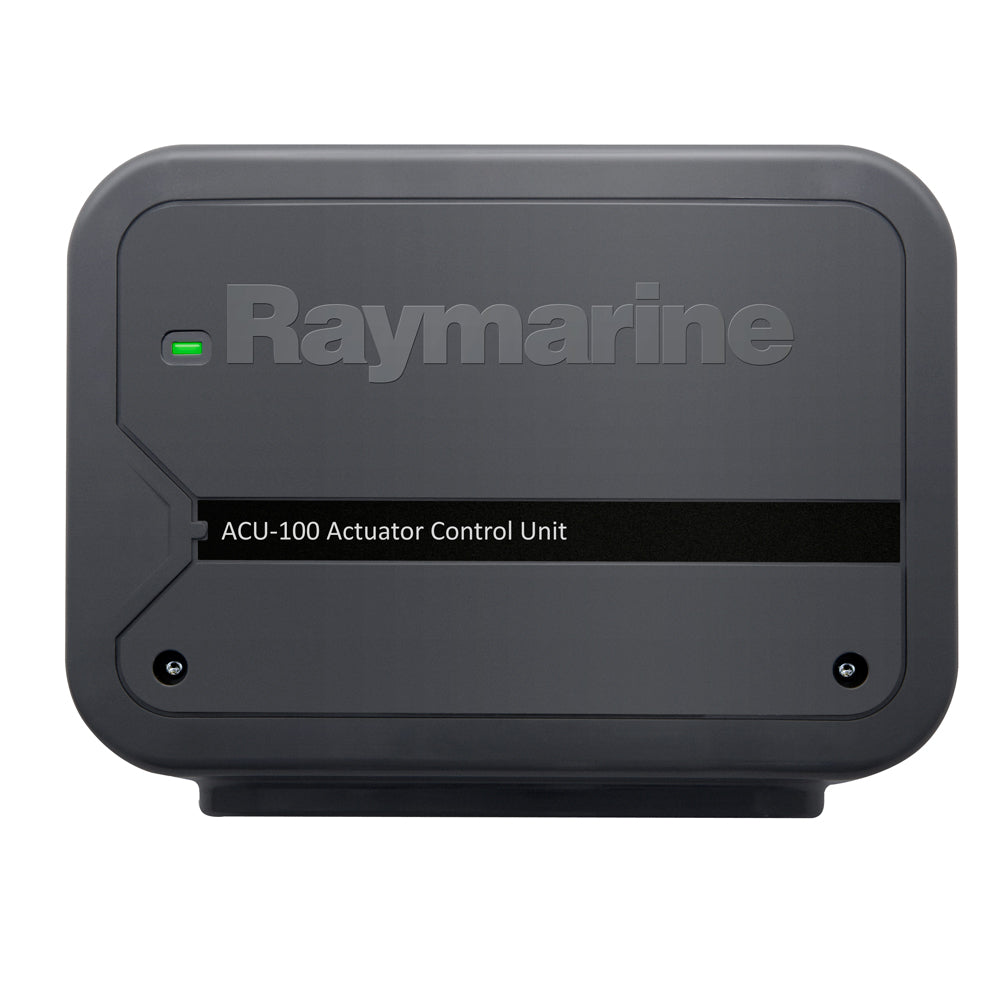

The Raymarine ACU-100 Actuator Control Unit provides reliable autopilot drive power for marine steering systems. This unit is designed to support specific steering system types with a maximum continuous drive output of 7 Amps.
Key Specifications:
- Drive Current Output: Maximum 7 Amps continuous
- Supply Voltage: 12V nominal (10.8V to 15.6V dc range)
- Data Connections: SeaTalkng with a Load Equivalency Number (LEN) of 1
- Physical Connections: Rudder reference sensor, power, drive motor, and ground
- Dimensions: 7.1 in x 5.5 in x 2.0 in (180mm x 140mm x 52mm)
- Weight: 1.32 lbs (0.6 kg)
- Operating Temperature: -4°F to +131°F (-20°C to +55°C)
- Waterproof Rating: IPX6 for drive electronics and IPX2 for the connector panel
- Compliance: 2004/108/EC and C-Tick Compliance Level 2
Note: This unit does not provide power to the SeaTalkng bus.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-102848
- Model / MPN
- E70098
- UPC / GTIN
- 723193768907
- Package dimensions (H × W × L)
- 4" X 8" X 12"
- Package weight
- 2.0 lb
- Country of origin
- CHINA
Specifications
- Type
- Parts
