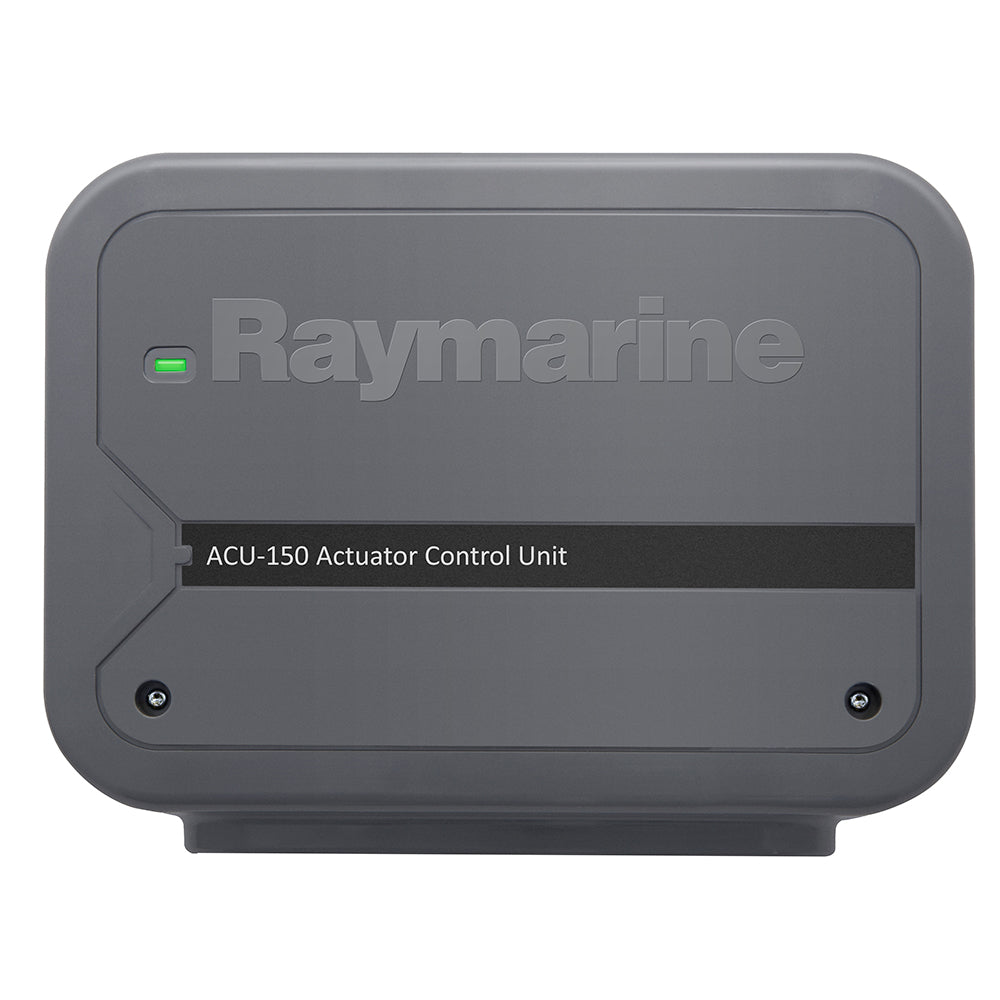

Raymarine ACU-150 Evolution Autopilot Actuator Control Unit, 12V

Ensure precise and reliable automated steering with the Raymarine ACU-150 Actuator Control Unit, a vital component of the Evolution™ Autopilot system. Designed for vessels with hydraulic steering, this unit provides dedicated power and control for compatible Type-1 Hydraulic Drive Units, ensuring stable autopilot operation even in challenging sea conditions. Proudly made in Hungary, the ACU-150 integrates seamlessly into your marine electronics network, delivering enhanced navigation capabilities. Upgrade your vessel's autopilot system for smarter, more confident navigation.

Key Benefits & Features:

• Evolution™ Autopilot Integration: A core component that provides power and control for a Type-1 Hydraulic Drive Unit, enabling precise and reliable automated steering.
• Seamless Network Connectivity: Connects directly to the SeaTalkng network for robust data transmission and communication with other peripheral devices.
• Optimized for 12V DC Systems: Exclusively designed for 12-volt DC power systems (operating range 10.8 V to 15.6 V) for broad compatibility with marine electrical setups.
• Rudder Reference Ready: Includes dedicated connections for an optional Rudder Reference Unit, further enhancing steering accuracy.
• Robust Marine Design: Features an IPX6 waterproof rating for the drive electronics and an IPX2 rating for the connection panel, ensuring durability in harsh marine environments.
• Wide Steering Compatibility: Suitable for controlling hydraulic steering cylinders with a volume between 80cc and 230cc.
• Compact & Lightweight: With dimensions of 180 x 140 x 52 mm and a weight of just 0.6 kg (1.32 lbs), it offers flexible installation options.
• Broad Operating Temperature: Functions reliably across a wide range of temperatures, from -20°C to +55°C (-4°F to 131°F).

Recommended Pairings (Sold Separately):

• Type-1 Hydraulic Drive Unit (M81120): Essential for controlling the vessel's steering.
• Evolution EV1 Sensor Core (E70096): Provides heading, pitch, roll, and yaw rate data to the autopilot.
• Evolution Cable Kit (R70160): Necessary for connecting all components of the Evolution system.
• Autopilot Control Head: Choose either the p70s (E70328) or p70Rs (E70329) for intuitive control.
