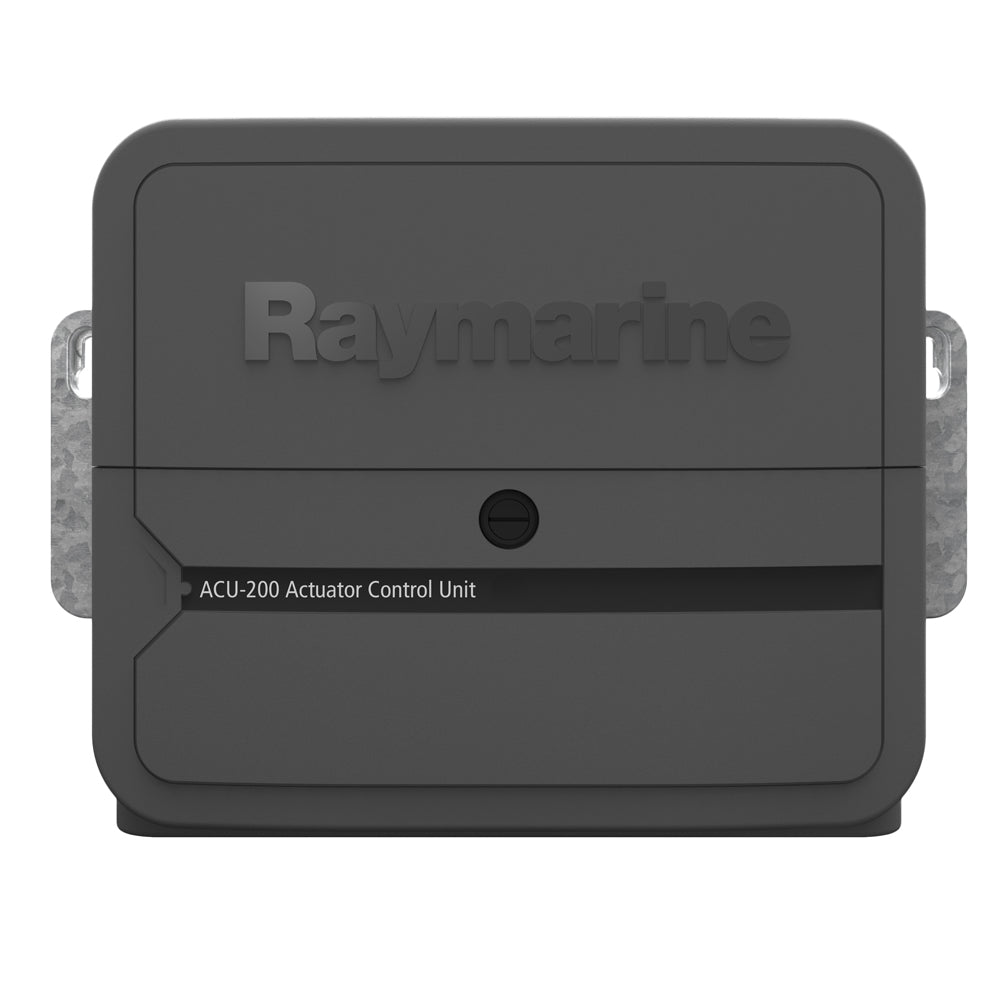

Raymarine ACU-200 Evolution Actuator Control Unit for Type 1 Drives

Raymarine ACU-200 Evolution Actuator Control Unit for Type 1 Drives

SKUCT-102849

$1,051.95
$1,051.95
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Out of stock

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

Unlock precise and reliable autopilot control for your vessel with the Raymarine ACU-200 Actuator Control Unit. As a core component of the Evolution autopilot system, this rugged unit provides essential power to your autopilot drive and the SeaTalkng network, ensuring seamless integration and superior steering performance. Designed for durability in demanding marine environments, it delivers responsive and accurate steering corrections, making long passages and challenging conditions more manageable. Upgrade your navigation system today for a more relaxing and enjoyable time on the water.

In the Box:

  • Raymarine ACU-200 Actuator Control Unit
  • M81105 Rotary Rudder Reference
  • Mounting Screws
  • Documentation
  • 2-Year Warranty

Key Features & Benefits:

  • Robust Power Delivery: Provides a maximum continuous drive current output of 15 Amps to ensure powerful and responsive steering corrections.
  • Versatile Drive Clutch Output: Features up to 2.0 Amps continuous output for the drive clutch, selectable between 12V and 24V systems, offering broad compatibility.
  • Dual Voltage Compatibility: Supports nominal supply voltages of 12 V or 24 V DC, integrating seamlessly with common marine electrical systems.
  • Integrated Network Power: Supplies 3 Amps at 12V to the SeaTalkng bus (fuse protected), simplifying power distribution for connected devices.
  • Durable Marine Design: Built with a drip-resistant waterproof rating, ensuring reliable performance against spray and condensation in harsh marine conditions.
  • Wide Operating Temperature Range: Operates flawlessly from -20°C to +55°C (-4°F to +131°F), guaranteeing functionality across diverse climates.
  • International Conformance: Complies with European 2004/108/EC and Australia/New Zealand C-Tick Level 2 standards, ensuring global reliability and safety.
  • Compact Dimensions: Measures 285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in) for flexible installation in various helm configurations.

Compatibility & Pairings:

  • Designed for Type 1 Hydraulic, Mechanical Linear, and Rotary Drives.
  • Essential component for Raymarine Evolution Autopilot Systems.
  • Integrates via the SeaTalkng network, requiring an EV-1 sensor and compatible autopilot control head for a complete system.
