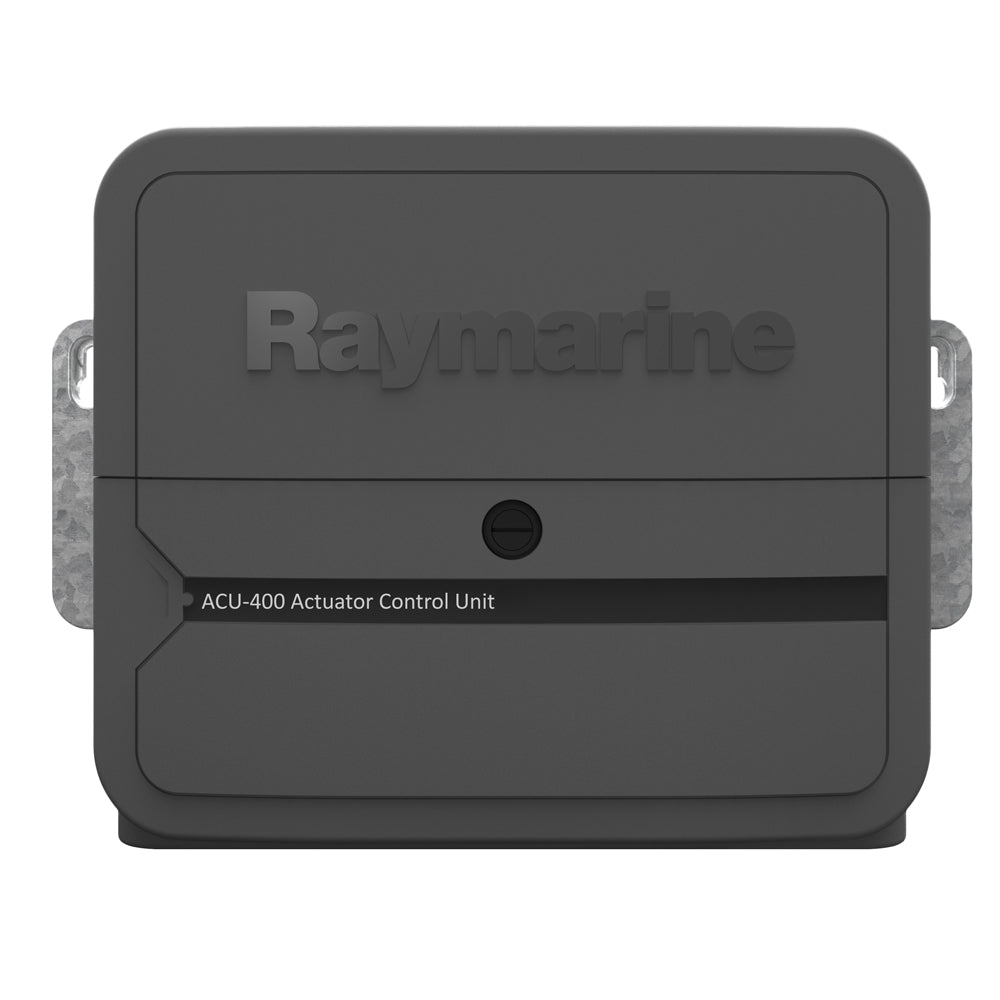

Raymarine ACU-400 Autopilot Control Unit, for Type 2/3 Drives

Ensure reliable autopilot performance and seamless system integration with the rugged Raymarine ACU-400 Actuator Control Unit. Designed to deliver robust drive power and essential connectivity for your marine system, this unit is engineered for durability in challenging maritime environments. Upgrade your vessel's navigation capabilities with Raymarine's trusted technology.

In the Box:

• ACU-400 Unit
• Rudder Reference Sensor
• Cable Ties (10x)
• Mounting Screws (2x)
• Document Pack

Key Benefits:

• Robust Drive Power: Delivers a maximum continuous output of 30 Amps to reliably power your autopilot drive, ensuring consistent performance even under load.
• Precise Clutch Control: Provides up to 4 Amp continuous drive clutch output for accurate engagement and disengagement of the steering system.
• Versatile Power Compatibility: Operates on nominal 12V or 24V DC supply voltages, with a wide operating range of 10.8V to 31.2V DC for flexibility across different vessel electrical systems.
• Efficient Power Management: Features low standby power consumption of 300 mA (main) and 20 mA (SeaTalkng) to minimize drain on your vessel's battery.
• SeaTalkng Network Integration: Supplies 3 Amp at 12V (fuse protected) to the SeaTalkng bus, powering essential data communication for your marine electronics.
• Durable Construction: Built with a drip-resistant waterproof rating and capable of operating in temperatures from -20°C to +55°C (-4°F to +131°F), ensuring longevity in harsh marine conditions.
• Certified Performance: Conforms to Europe's 2004/108/EC and Australia/New Zealand C-Tick Level 2 standards, meeting international requirements for electromagnetic compatibility and safety.

Compatibility & Pairings:

• Specifically designed for use with Type 2 and Type 3 Raymarine hydraulic, linear, and rotary mechanical drives.
• Seamlessly integrates with Raymarine's EV-1 sensor and autopilot control heads via the SeaTalkng network.
