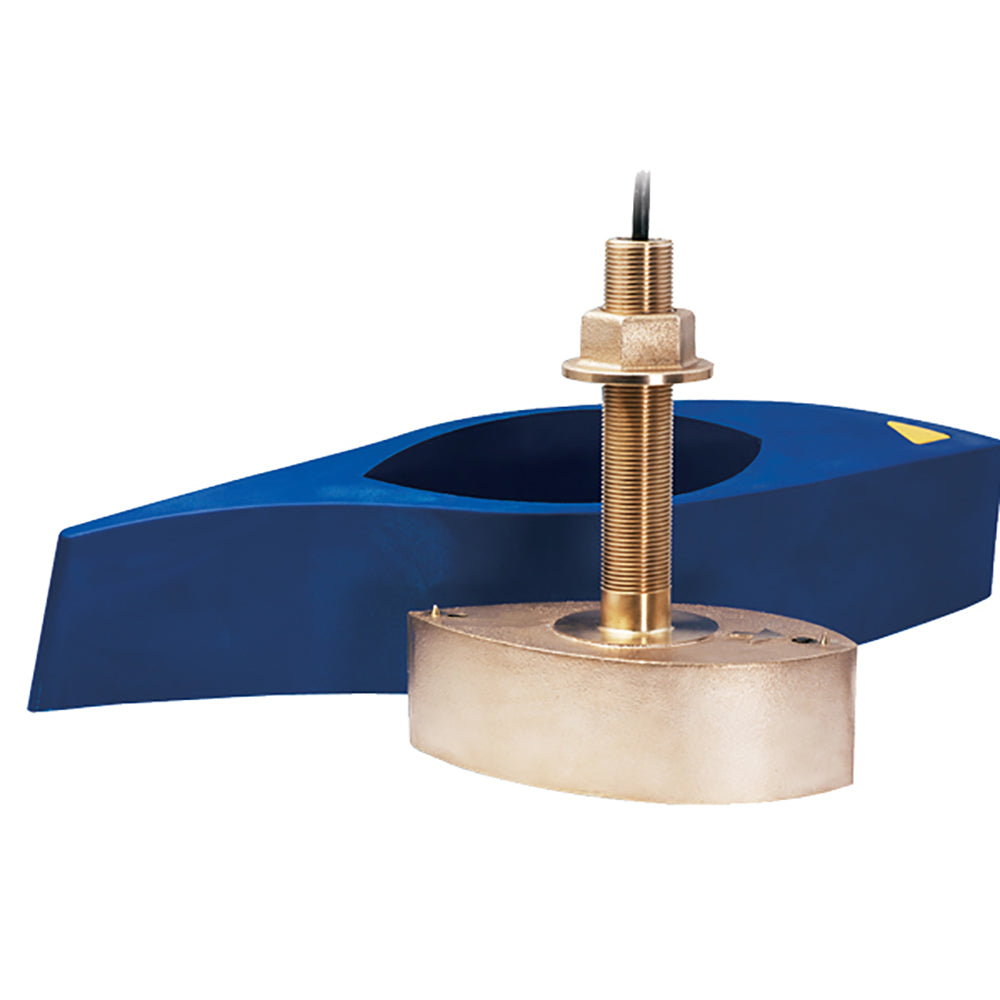

Raymarine B265LM Bronze CHIRP Thru-Hull Transducer, Depth & Temp, 1kW

Unlock unparalleled underwater visibility with the Raymarine B265LM Bronze CHIRP Thru-Hull Transducer. Engineered for serious anglers and navigators, this 1kW powerhouse delivers crystal-clear fishfinding capabilities and precise bottom detail from shallow reefs to deep-drop canyons. Crafted from robust bronze for exceptional saltwater resilience, the A80011 model seamlessly integrates with compatible Raymarine sonar modules, transforming your vessel into an advanced fishing machine. Upgrade your sonar system today and experience superior target separation and depth penetration.

• Durable Bronze Construction: Ensures long-term reliability and resistance to marine environments.
• High-Performance Thru-Hull Design: Provides a streamlined profile and optimal broadband sonar performance, even at speeds over 30 knots, with the included high-performance fairing block.
• Powerful 1kW Output: Delivers exceptional deep-water penetration, reaching up to 3,000 feet (914 meters) on low frequency and 1,500 feet (457 meters) on medium frequency.
• Dual CHIRP Frequencies: Supports Low CHIRP (42-65 kHz) for wide-area scanning and deep-water detection, and Medium CHIRP (85-135 kHz) for excellent target identification in mid-depths and near structure.
• Optimized Beamwidths: Features a 25°-16° beamwidth on Low CHIRP and a 16°-11° beamwidth on Medium CHIRP for superior target separation and accurate readings.
• Versatile Hull Compatibility: Ideal for fiberglass or wood hulls with deadrise angles from 0° to 20°.
• Integrated Depth & Temperature: Provides accurate real-time water depth and temperature readings for enhanced navigation and fishing strategies.
• Dedicated Connectivity: Equipped with a CP450C plug on a 33-foot (10-meter) cable and an 11-pin CHIRP transducer connector for direct integration with compatible Raymarine Axiom Pro RVX, Axiom 2 Pro RVM, RVX-1000, RVM-1600, CP470, and CP570 sonar modules.

In the Box:

• Raymarine B265LM Bronze CHIRP Thru-Hull Transducer (A80011)
• High-Performance Fairing Block
• 33 ft (10 m) Cable with CP450C Plug / 11-pin CHIRP Connector

Recommended Pairings: Maximize your system's potential by pairing with a Raymarine Axiom Pro or Axiom 2 Pro multifunction display for advanced sonar interpretation and navigation.
