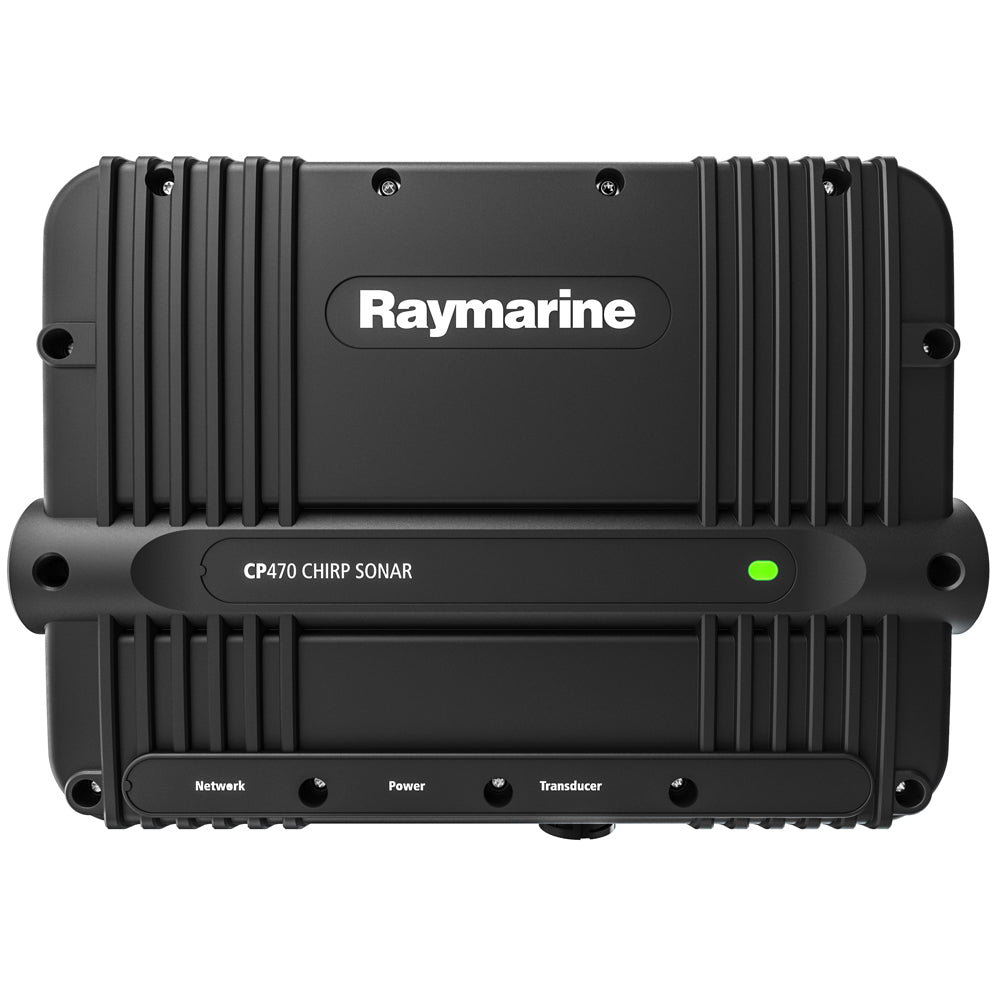

Raymarine CP470 CHIRP Sonar Module, Wide Spectrum, 10,000 ft Depth Range

Discover unparalleled underwater detail with the Raymarine CP470 CHIRP Sonar Module. Engineered for serious anglers, this high-performance module delivers best-in-class target separation and high-resolution CHIRP sonar imagery directly to your Raymarine multifunction display. Its advanced transceiver penetrates dense schools of baitfish, identifies thermoclines, and tracks game fish and seabed down to an impressive 10,000 feet. Built for offshore use, it intelligently filters out noise, ensuring clear, reliable fish targets and bottom tracking even in rough conditions. Upgrade your fishing vessel today.

Key Benefits:

• Superior Target Separation: Experience best-in-class clarity, revealing precise fish targets and underwater structures with Raymarine's exclusive wide spectrum CHIRP sonar technology.
• Deep Water Capability: Accurately track the seafloor and locate marine life down to 10,000 feet (3,000 meters) using dual independent CHIRP channels.
• Enhanced Detail and Clarity: Offers up to 10 times the resolution of ordinary sonars, presenting sharper, more defined imagery and utilizing TruZoom™ magnification for extra detail without loss of quality.
• All-Weather Performance: Rated IPX6 waterproof and housed in a rugged aluminum enclosure, it's designed to withstand harsh offshore conditions and intelligently filters out unwanted noise.
• Optimized Performance: Automatically recognizes and configures connected transducers, ensuring optimized sonar parameters for your setup.
• Seamless Integration: Fully compatible with Raymarine a, c, e, and gS Series multifunction displays.

Specifications:

• Sonar Type: Wide Spectrum CHIRP
• Frequency & Channels: Dual independent CHIRP channels from 25 to 250kHz
• Depth Range: 10,000 ft (3,000 m)
• Power: 1kW / 2kW (depending on transducer)
• Waterproofing: IPX6
• Nominal Supply Voltage: 12/24 VDC
• Power Consumption: 30.6 W (maximum)
• Weight: 3.39 lbs (1.539 kg)
• Connections: Power, RayNet (10/100 Mb/s) Network, Transducer
• Compatibility: Raymarine a, c, e, gS Series multifunction displays
