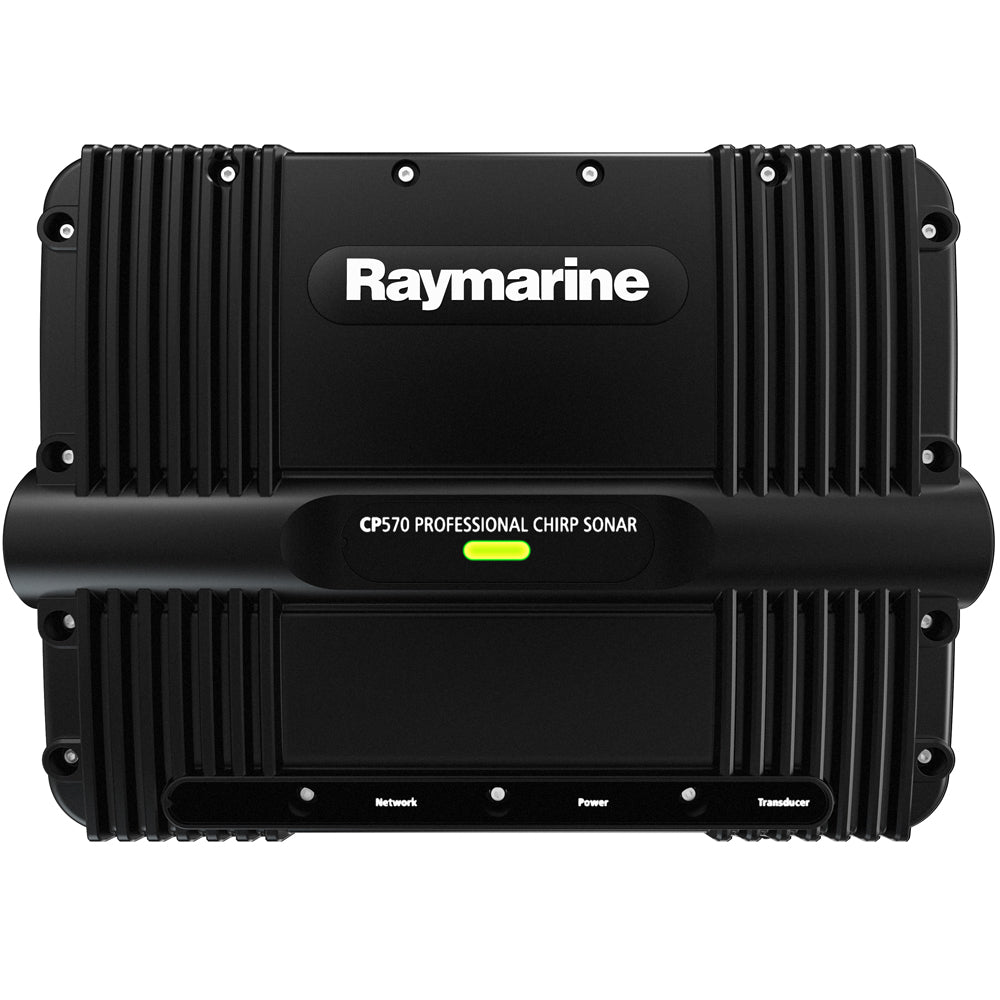

Raymarine CP570 Professional CHIRP Sonar Module – 4kW, 10,000ft Depth

Unlock unparalleled underwater vision with the Raymarine CP570 Professional CHIRP Sonar Module. Engineered for serious anglers and tournament fishing, this high-performance module delivers best-in-class target separation and high-resolution CHIRP sonar imagery to your Raymarine multifunction display. Its advanced CHIRP transceiver utilizes a wide spectrum of frequencies and superior sensitivity to cut through dense baitfish schools, identify thermoclines, and pinpoint desired game fish simultaneously. Rated for offshore use and rough conditions, the CP570 intelligently filters unwanted noise, ensuring reliable bottom tracking and crystal-clear fish targets. Upgrade your fishing vessel today and gain a decisive edge on the water.

Key Benefits:

• Superior Target Definition: Utilizes exclusive Wide Spectrum CHIRP sonar technology for enhanced sensitivity and up to 10 times the resolution of ordinary sonars.
• Powerful Dual Channel Output: Features two fully independent CHIRP channels with up to 4kW of combined output power, allowing precise targeting in different water column depths.
• Extreme Depth Capability: Tracks the seafloor down to 10,000 feet (3,000 meters) for deep-water exploration and reliable bottom tracking.
• TruZoom™ Magnification: Magnifies fish targets, bottom structure, and baitfish without any loss of resolution, providing exceptional detail.
• Offshore Durability: Housed in a rugged, IPX6 waterproof aluminum enclosure, built to withstand harsh marine environments.
• Intelligent Transducer Management: Automatically recognizes connected Airmar Xducer ID transducers and adjusts sonar parameters for optimized performance.
• Noise Filtering: Intelligently filters out unwanted noise to produce sharper, more defined fish targets.

Specifications:

• Sonar Type: Wide Spectrum CHIRP.
• Frequency & Channels: Dual independent CHIRP channels from 25 to 250kHz.
• Nominal Supply Voltage: 12/24 V DC.
• Power Consumption: 30.6W (Maximum).
• Connections: Power connection, Network connection (RayNet connector) 10/100 Mb/s, Transducer connection.

Compatibility & Pairings:

The CP570 is compatible with Raymarine aSeries, cSeries, eSeries, and gS Series multifunction displays running LightHouse II (or later compatible) software. Transducer sold separately; choose optional low, medium, or high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences.
