Raymarine CPT-S Bronze Thru-Hull Transducer, High CHIRP, 12° Angled Element

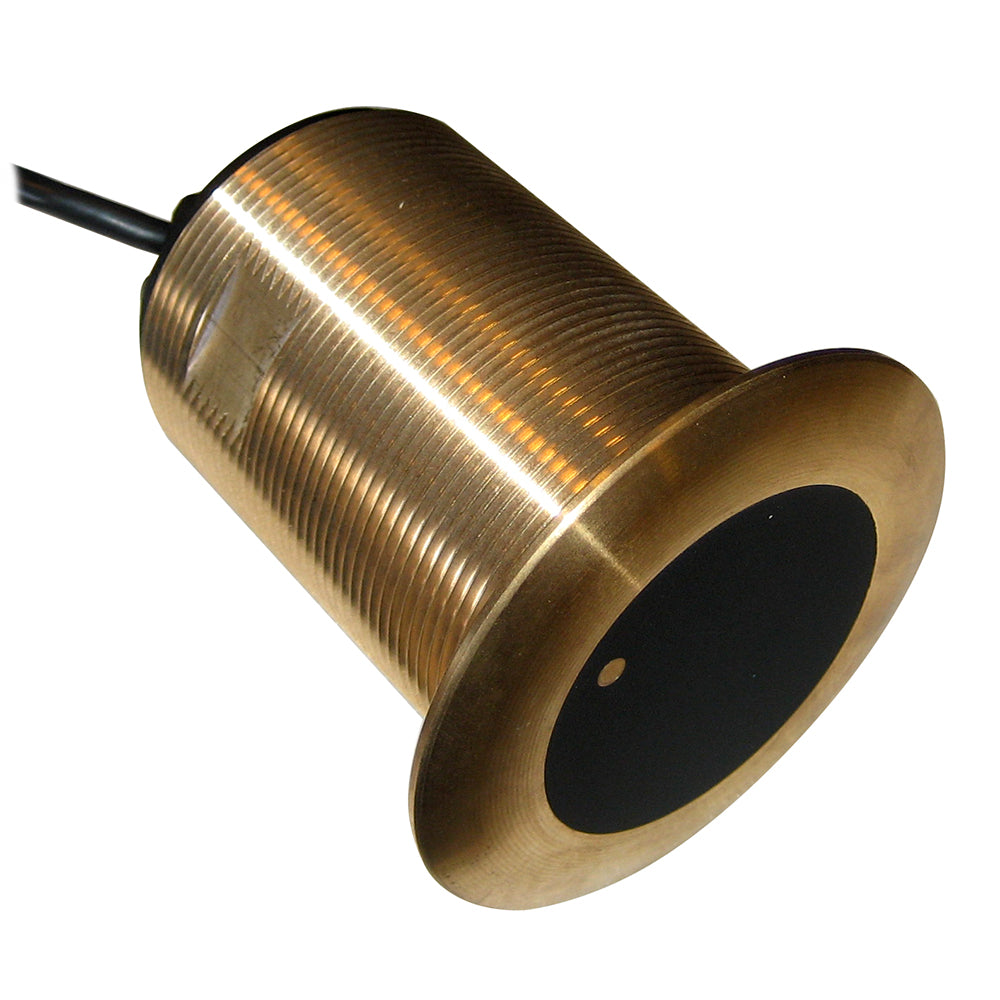

Unlock exceptional underwater clarity with the Raymarine CPT-S Bronze Thru-Hull Transducer (E70340). Engineered for dedicated High CHIRP sonar, this transducer delivers high-resolution imagery of baitfish and bottom structure, ensuring you don't miss a thing beneath your vessel. Its low-profile design minimizes drag, while the robust bronze construction offers long-term durability in harsh marine conditions. Upgrade your fishing and navigation capabilities with this precision instrument today.

Key Features & Benefits:

• High CHIRP Sonar: Operates in the 170-230 kHz range, sweeping frequencies for superior target separation and detailed imaging of fish and bottom contours.
• Deepwater Performance: Provides reliable depth readings up to 900 feet (274 meters), ideal for diverse fishing and cruising environments.
• Optimized Deadrise Compensation: Features a 12° angled element to accommodate hull deadrise angles between 7° and 17°, ensuring the 25° conical sonar beam points straight down for maximum accuracy.
• Integrated Temperature Sensor: Delivers precise seawater temperature data for comprehensive environmental awareness.
• Durable Bronze Housing: Designed for permanent thru-hull installations on fiberglass or wooden hulls, offering exceptional resistance to marine elements.
• Plug-and-Play Connectivity: Includes a 10-meter (33 ft) cable with a 9-pin connector for direct connection to compatible Raymarine systems.

Compatibility:

• Direct Connect: Raymarine Element S and CP100 sonar modules.
• Adapter Required (A80490 or A80559): Compatible with Raymarine Axiom RV, Axiom Pro, Axiom Pro S, Axiom 2 Pro S, Element HV, Axiom DV, and MFD Series displays (e.g., eS78, eS98, eS128).
• Software Requirement: MFD must have version 16 software or later for optimal performance.
• Hull Material: Suitable for fiberglass and wooden hulls. Not recommended for metal (aluminum or steel) hulls due to galvanic corrosion risk.
