Product details

Review the details before ordering.

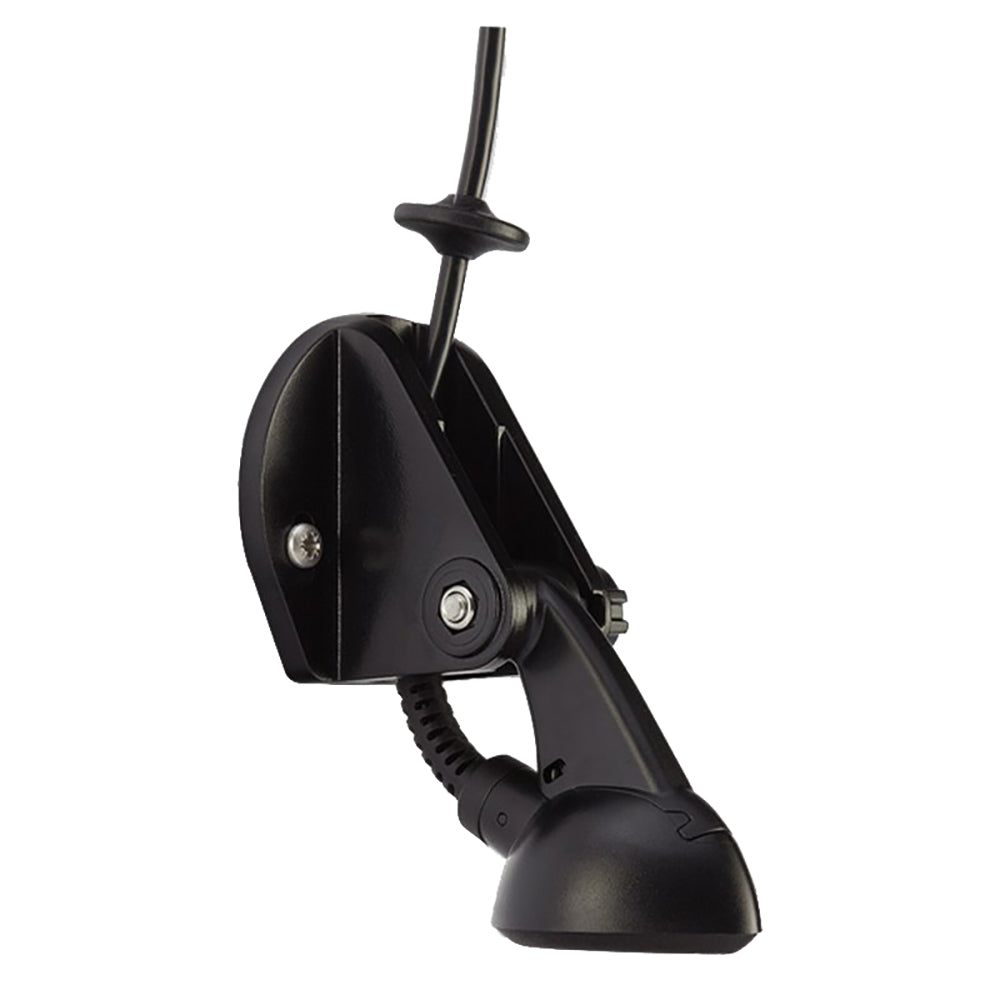

Unlock superior underwater visibility and enhance your fishing success with the Raymarine CPT-S Transom Mount Transducer. This high-performance transducer delivers precise High CHIRP sonar with a 25° conical beam, offering crystal-clear fish arches and bottom detail to an impressive 900-foot depth. Integrated temperature sensing provides crucial water data, giving you a complete picture of your marine environment. Designed for easy transom mounting and built with durable urethane, it ensures reliable operation even at speed. Upgrade your Raymarine system today for unparalleled clarity and confidence on the water.

In the Box:
  • CPT-S Transom Mount CHIRP Sonar Transducer
  • Transom Bracket
  • Washer M5
  • Hanger Bracket
  • CPT-S Assembly
  • M5 Hex Nylok Nut
  • 50.8X50.8 Thermal Transfer
  • M5 x 35 Full Thread Hex Head-Stainless Steel
  • (3) Tapping screws
  • Compression Washer
  • Ratchet Plate
  • Warranty leaflet
  • CPT-S TM Supplementary Sheet
  • CPT-DV_CPT-DVS Transom Mount Template
  • CPT-S TM Installation Instructions
  • 10-meter (32.8 ft) Cable
Key Benefits & Specifications:
  • High CHIRP Sonar: Utilizes a 25° conical beam for exceptional target separation and detailed fish identification.
  • Integrated Temperature Sensor: Provides accurate seawater temperature readings for optimized fish-finding strategies.
  • Deepwater Capability: Achieves a maximum depth of 900 ft (274 m), ideal for various fishing conditions and depths.
  • Rugged Construction: Made from durable urethane for long-lasting performance in harsh marine environments.
  • Versatile Mounting: Designed for transom installation, suitable for boats with outboard engines and supporting 0-90° transom angles.
  • Enhanced Durability: Features an IPX6, IPX7, and IPX8 waterproof rating for maximum protection against water ingress.
Compatibility & Pairings:
  • Directly connects to Raymarine Element S and Axiom DV chartplotters.
  • Recommended for Axiom Pro S and Axiom 2 Pro S chartplotters with the optional A80490 adapter cable.
  • Connects to Element HV models via the A80559 adapter cable (Note: CPT-S only supports High CHIRP, not HyperVision).
  • Compatible with CP100 sonar modules and MFD series ending in axx8 or esxx8.
  • Requires MFD software version 16 or later for optimal performance.
  • Not compatible with Raymarine Dragonfly models.
