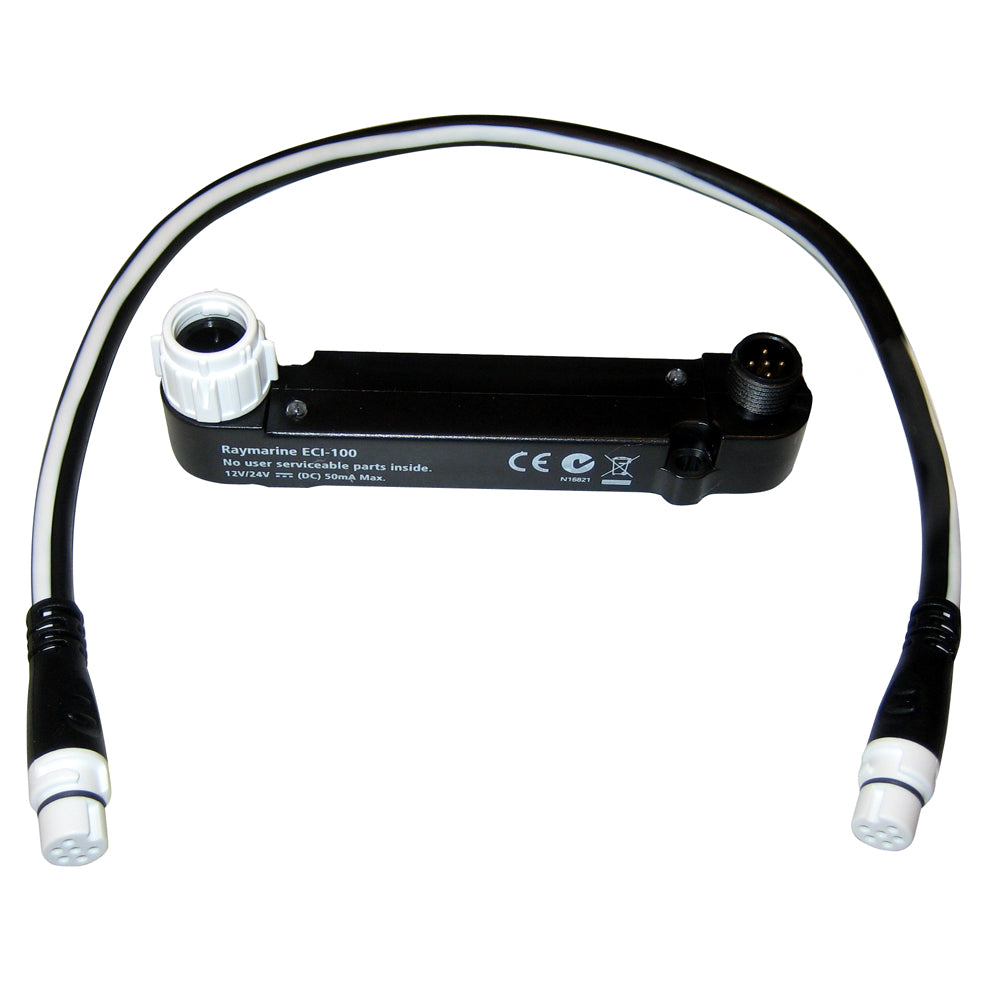

Raymarine ECI-100 Universal Engine and Control Interface

The Raymarine ECI-100 Universal Engine and Control Interface serves as a bridge for engine instrumentation and drive-by-wire steering systems, connecting them with Raymarine autopilot and navigation networks. This unit utilizes an isolated CAN bus to integrate engine data and steering control, allowing users to view performance metrics and manage autopilot functions directly on Raymarine multifunction displays running LightHouse v8 or later.

Key Features:

• Provides a single connection point for engine data and drive-by-wire autopilot control.
• Supports Raymarine Evolution EV-2 drive-by-wire autopilot systems.
• Compatible with NMEA2000 and SAE J1939 engine data buses.
• Connects to Raymarine SeaTalk ng networks via an industry-standard DeviceNet port.
• Displays include engine speed, oil pressure and temperature, coolant pressure, fuel rate, battery potential, transmission data, and engine load.
• Independent power for isolated ports ensures system reliability.
• Supported engine manufacturers include Volvo Penta, Yamaha Marine (Command Link Plus), Caterpillar, and Yanmar Marine.

The ECI-100 makes it possible to view engine and navigation data simultaneously on multifunction displays or via Raymarine mobile apps on smartphones and tablets. Please refer to the official Raymarine website for the most current engine compatibility details. Manufacturer part number: E70227.
