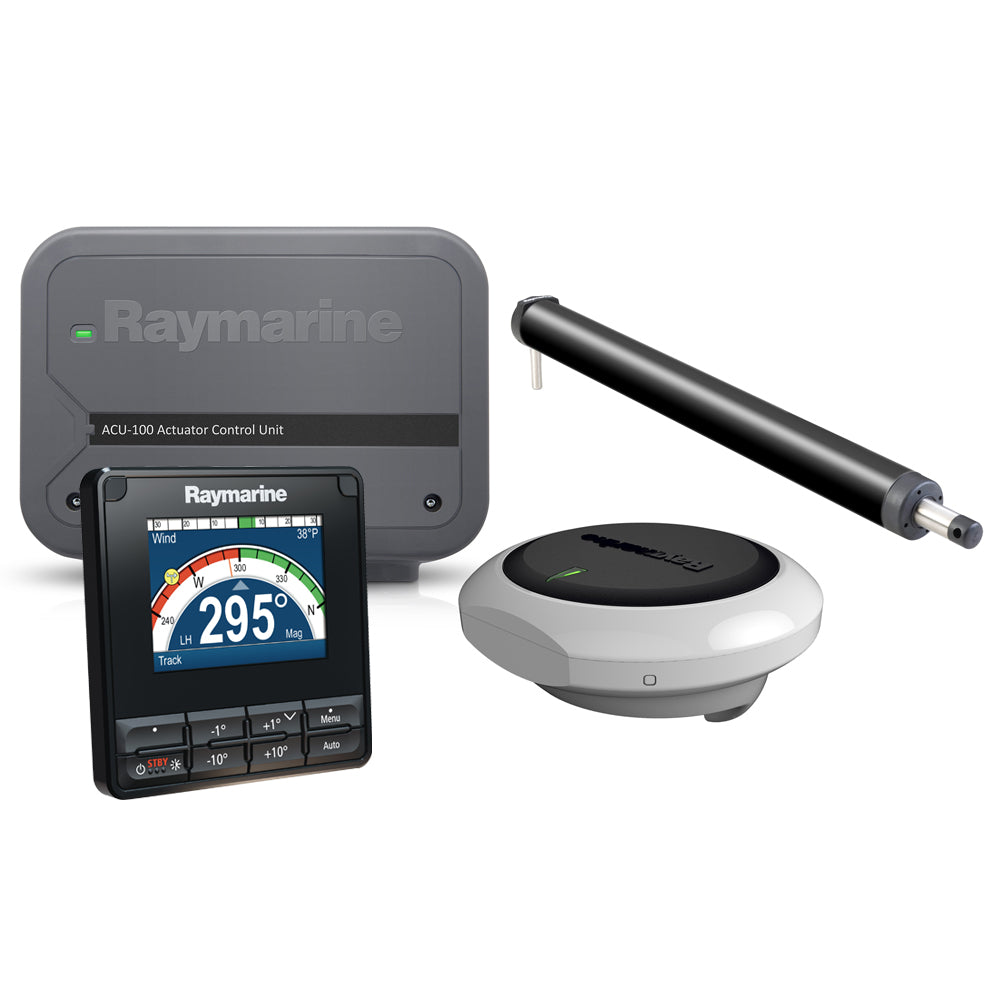

Raymarine EV-100 Evolution Tiller Autopilot System, 12V DC

Experience superior steering control and effortless navigation with the Raymarine EV-100 Evolution Tiller Autopilot System. This intelligent, complete-in-a-box solution is engineered for tiller-steered sailboats, utilizing advanced Evolution AI™ to deliver precise course-keeping without complicated setup or calibration. Renowned for its performance and reliability, it's the autopilot of choice for many top single-handed sailors. Enhance your sailing experience and command the seas with confidence.

• EV-1 Sensor Core
• p70s Autopilot Control Head
• ACU-100 Actuator Control Unit
• Tiller Drive
• Tiller Pin (sold in packages of 5)
• Mounting Socket (sold in packages of 5)
• Evolution Cabling Kit:
• 1 x SeaTalkng Power Cable (0.4m)
• 1 x SeaTalkng Backbone Cable (5m)
• 1 x SeaTalkng Spur Cable (0.4m)
• 1 x SeaTalkng 5-way Connector Block
• 2 x SeaTalkng T-piece Connector
• 2 x SeaTalkng Terminator
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket

• Intelligent Autopilot Control: Features the advanced EV Sensor Core with Evolution AI™ that continuously monitors vessel motion (heading, pitch, roll, and yaw) to adapt and optimize steering for precise course-keeping in all sea conditions.
• Effortless Setup: Engineered for simplicity, this system requires no complicated setup or autopilot calibration, allowing for quick and easy installation.
• Robust Tiller Drive: Equipped with a powerful yet compact and unobtrusive tiller drive unit, easily removable for storage, providing reliable steering for boats up to 13,200 lbs (6,000 kg) displacement.
• Versatile Power: Designed to operate seamlessly on standard 12V DC marine power systems.
• Durable Sensor Core: The 9-axis EV Sensor Core is fully sealed and built to IPX6 and IPX7 waterproofing standards, allowing flexible installation above or below decks.
• High-Accuracy Data: Solid-state sensor technology delivers dynamic accuracy within 2 degrees and provides fast, reliable heading data for MARPA, radar overlay, and heading modes on compatible Raymarine multifunction displays.
• Intuitive Control Head: Includes the p70s Autopilot Control Head, featuring a push-button operation, the user-friendly LightHouse interface, and a start-up wizard for quick configuration.
• Optimized Display: The p70s control head offers wide 160° viewing angles and an anti-reflective coating for improved visibility, even in bright sunlight, with low power consumption for extended battery life.
• Comprehensive Autopilot Modes: Supports a full range of autopilot modes including Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer.
• Seamless Integration: Features SeaTalkng® and NMEA2000® connectivity for straightforward power and data networking with other marine instruments and chartplotters.

Integrates directly with Raymarine SeaTalkng and NMEA2000 networks. Can be controlled by the included p70s control head or a compatible Raymarine Axiom chartplotter for complete autopilot control.
