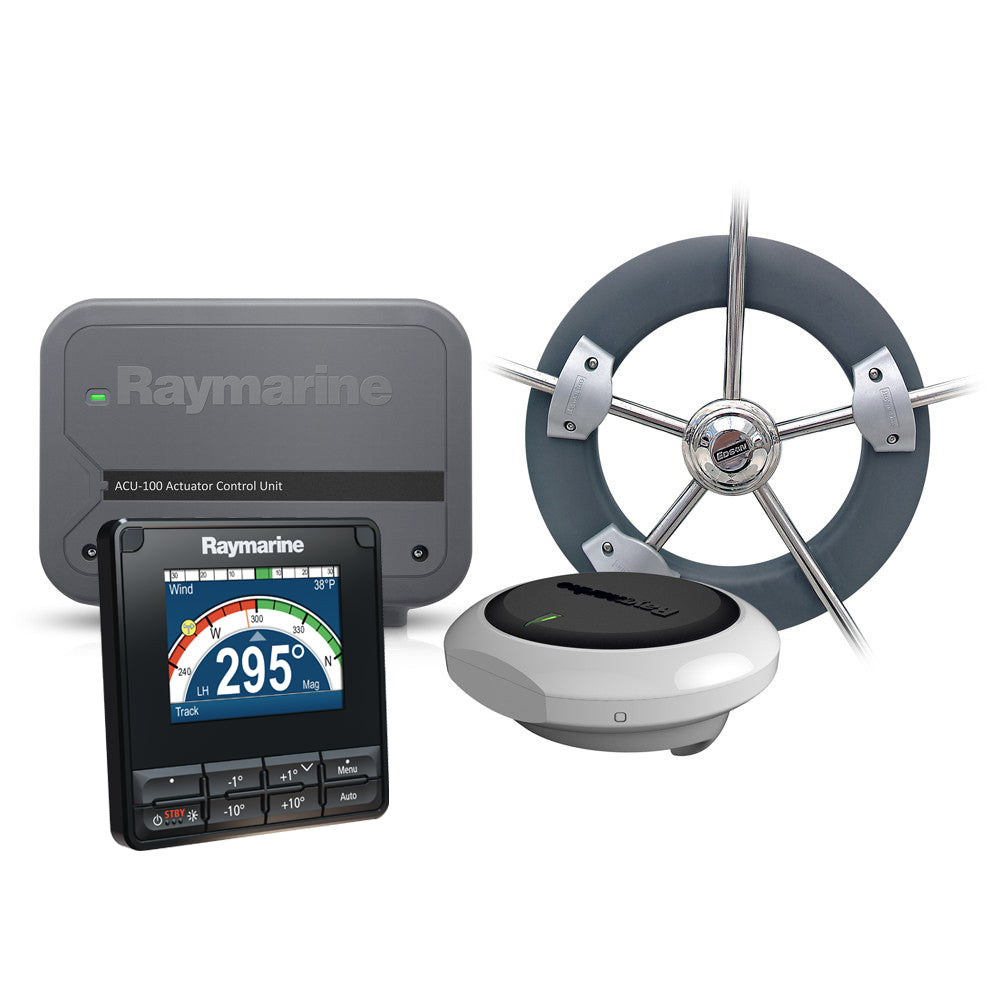

Raymarine EV-100 Wheel Evolution Autopilot System (T70152)

The Raymarine EV-100 Wheel Evolution Autopilot is a comprehensive steering solution designed for sailboats up to 16,500 lbs (7,500 kg). This 12V DC system utilizes intelligent Evolution AI technology for precise vessel motion monitoring without the need for manual calibration.

System Components

• EV-1 Sensor Core (9-axis, IPX6 and IPX7 rated)
• p70s Autopilot Control Head with push-button interface
• ACU-100 Actuator Control Unit
• Wheel Drive unit
• Evolution Cabling Kit
• EV Unit O-Ring pack (set of 2)
• Wall mounting bracket

Key Features

• 9-axis sensor technology tracks heading, pitch, roll, and yaw for dynamic accuracy within 2°
• SeaTalkng and NMEA2000 networking for power and data connectivity
• p70s controller features a high-visibility, anti-reflective display with 160° viewing angles
• Supports multiple autopilot modes including Auto, Track, Wind Vane, and Power Steer
• Flexible installation with the EV sensor core mountable above or below deck
• Cabling kit includes 5m backbone cable, power cable, spur cable, 5-way connector block, T-piece connectors, and terminators
