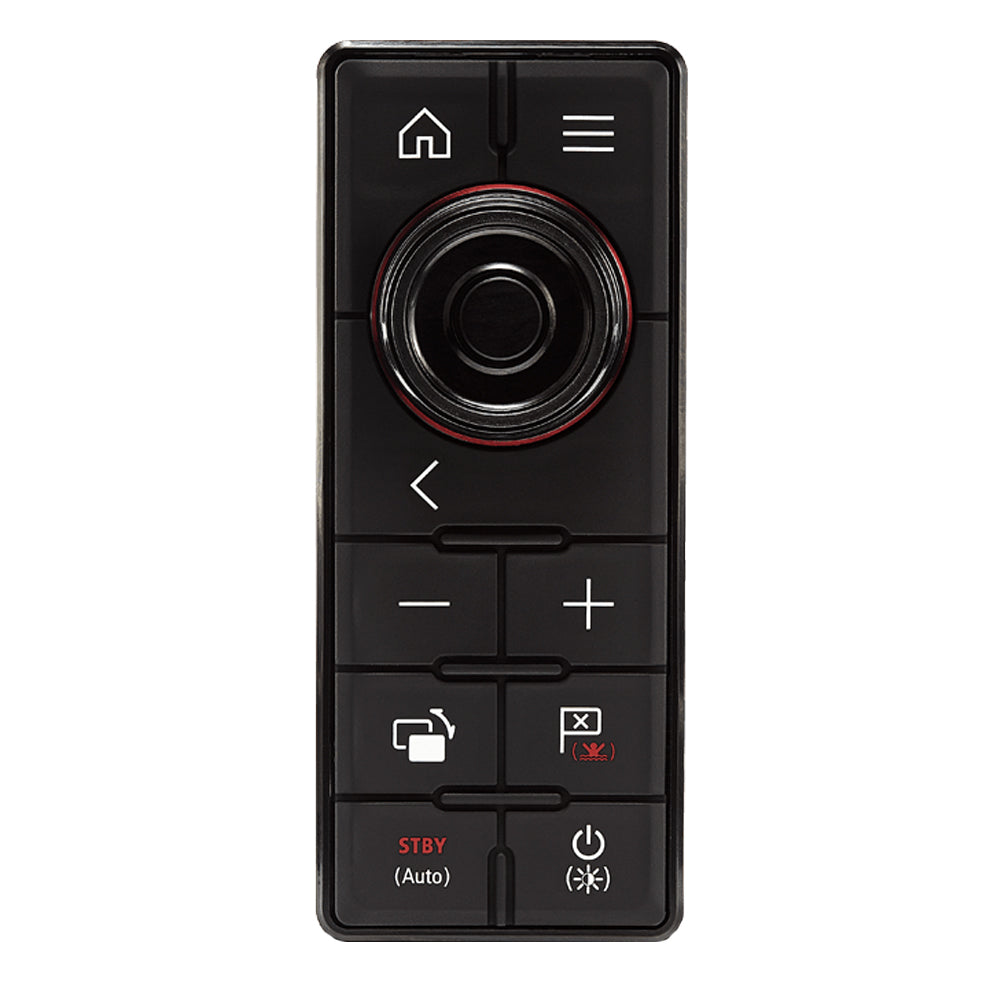

Raymarine RMK-10 System Remote Control Keypad, Portrait

Take command of your Raymarine multifunction display (MFD) from any location aboard your vessel with the Raymarine RMK-10 Portrait Wired Remote Keypad. Designed for seamless integration and intuitive operation, this ultra-compact and fully backlit keypad brings essential system controls to your fingertips, enhancing your navigation experience. Install it with confidence and upgrade your control setup today.

In the Box:

• RMK-10 Keypad
• Portrait keypad mat (vertical)
• Mounting gasket
• 4x Mounting fixings
• Documentation pack
• Right-angled power cable (2m / 6.6 ft)
• RayNet network cable (2m / 6.6 ft)

Key Features & Benefits:

• Comprehensive MFD Control: Provides full command of Raymarine aSeries, cSeries, eSeries, eS Series, gS Series, and Axiom Multifunction Displays, ensuring broad compatibility and control.
• Intuitive Interface: Features a fully backlit design with dedicated keys for home, menu, zoom in/out, window control, waypoint management, power/brightness, and Evolution autopilot control for easy operation.
• HybridTouch™ Capability: Brings full HybridTouch™ control to aSeries and gS Series Multitouch displays, allowing flexible operation via touch, keypad, or a combination.
• Flexible Installation: Supports both surface and flush mounting, offering versatile placement options to suit your helm or desired remote location. The A80438 model includes a portrait keypad mat for vertical orientation.
• High-Speed Networking: Utilizes RayNet high-speed networking to control a single MFD or multiple displays seamlessly from the same helm, ensuring responsive performance.
• Marine-Grade Durability: Boasts an IPX6 waterproof rating, protecting the unit against powerful water jets and ensuring long-term reliability in harsh marine environments.

Specifications:

• Nominal Supply Voltage: 12 / 24 V DC
• Operating Voltage Range: 10.8V DC to 31.2V DC
• Power Consumption: 3.84W
• Operating Temperature: -25°C to +55°C (-13°F to 131°F)
• Waterproof Rating: IPX6
• Network Connection: 1 x RayNet connector (gS Series - 1000 Mb/s plus PoE; aSeries, cSeries, eSeries - 100 Mb/s)

Compatibility & Pairings:

The Raymarine RMK-10 (A80438) is compatible with aSeries, cSeries, eSeries, eS Series, gS Series, and Axiom series MFDs. It integrates seamlessly with the LightHouse II user interface for enhanced navigation control. Perfect for installation at secondary stations, helm chairs, or overhead electronics boxes, allowing convenient control when your primary MFD is out of reach or connected to a larger onboard monitor.
