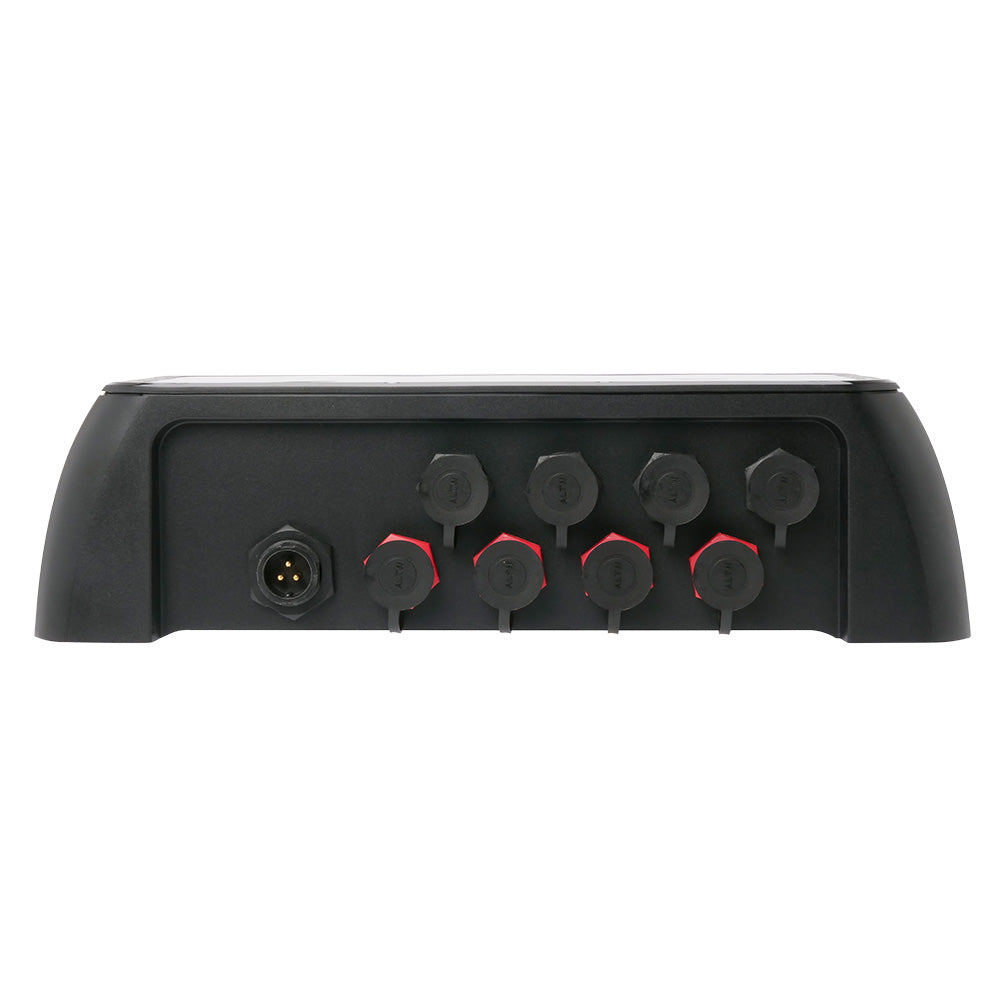

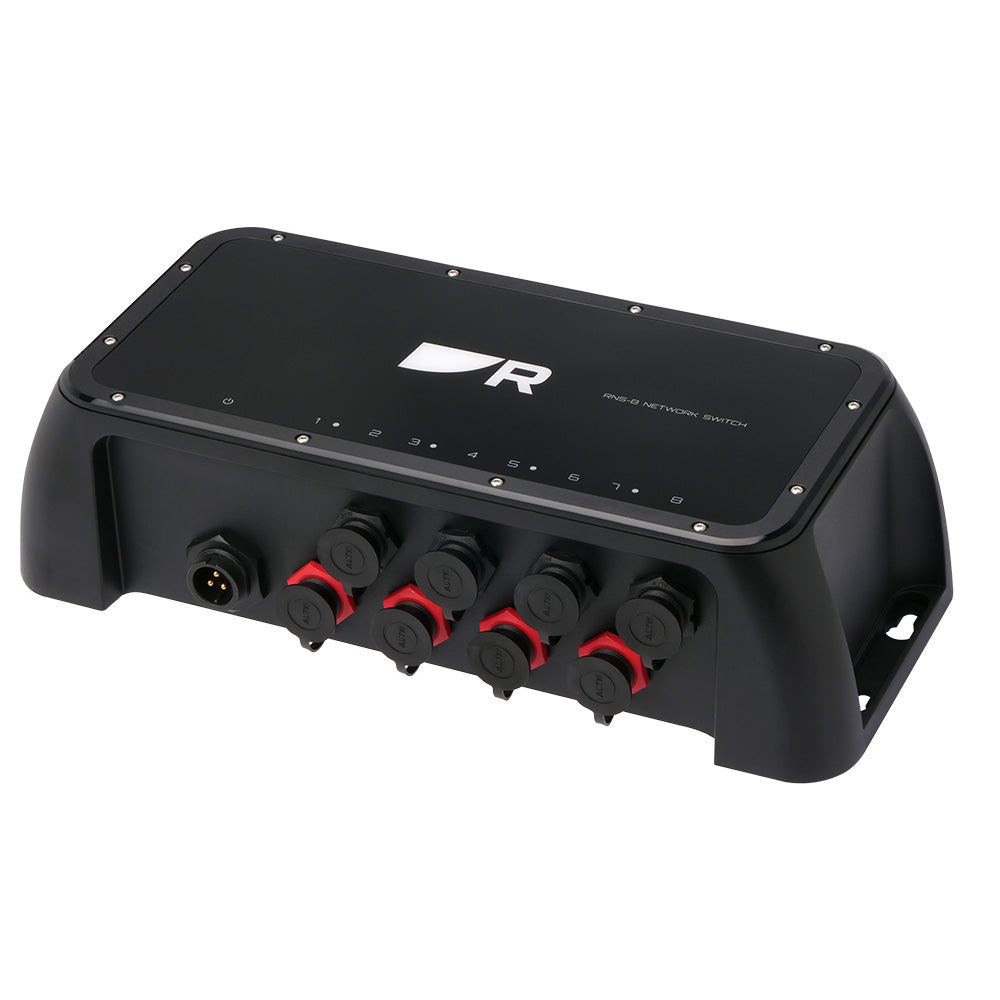

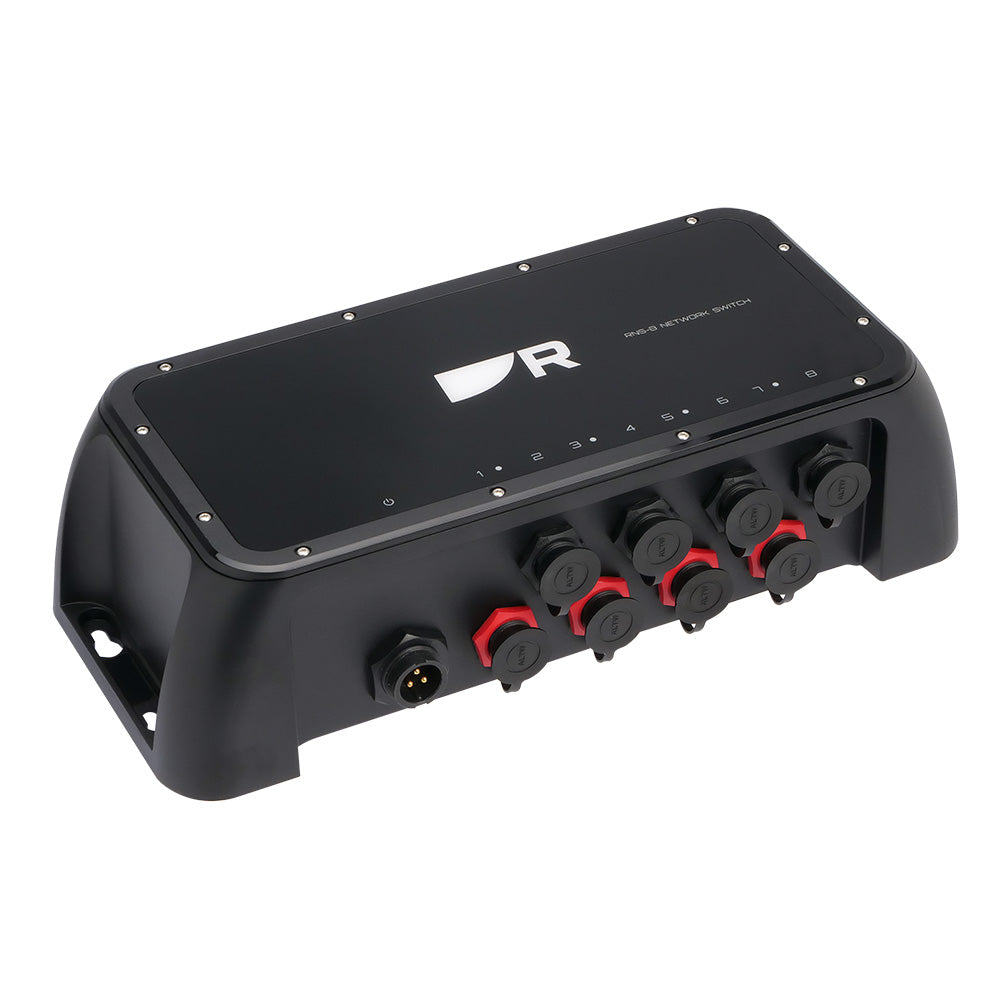

Raymarine RNS-8 Network Switch, 8-Port Gigabit with 4 PoE

Seamlessly integrate and power your Raymarine marine electronics with the Raymarine RNS-8 Network Switch. This premium, unmanaged network switch is engineered for robust connectivity and simple installation, forming the backbone of your integrated Raymarine chartplotter system. It effortlessly connects Axiom displays with radars, sonar modules, and FLIR thermal cameras, providing real-time data at your fingertips. Four dedicated Power-Over-Ethernet (PoE) ports eliminate extra wiring by powering compatible devices like CAM300 marine IP cameras and RMK-10 remote keypads. Invest in reliable marine networking with the RNS-8 to enhance your vessel's capabilities today.

In the Box:

• Raymarine RNS-8 Network Switch
• Documentation Pack
• Fixing Screws (x4)
• Power Cable (1.5m)

Key Features & Benefits:

• 8 RayNet Ethernet Gigabit Ports: Ensures fast and reliable high-bandwidth data transfer across your entire marine network.
• 4 Dedicated Power-Over-Ethernet (PoE) Ports: Simplifies installation by powering compatible cameras and remotes directly through the network cable, reducing wiring clutter.
• Rugged IPX6/IPX7 Construction: Provides exceptional durability and protection against heavy spray and temporary submersion, ideal for harsh marine environments.
• Waterproof RayNet Connectors: Delivers secure, reliable, and high-speed Ethernet links that withstand saltwater challenges.
• Simple Bulkhead Mounting: Designed for straightforward installation on marine bulkheads.
• LED Status Indicators: Offers at-a-glance monitoring of power and individual network port status.
• Unmanaged Plug-and-Play Operation: Guarantees simple setup without complex configuration for all your Raymarine devices.
• Remote Diagnostics: Allows for performance monitoring and troubleshooting via any web browser.
• Expandable Network Capacity: Supports daisy-chaining of up to eight RNS-8 switches for larger, more extensive marine networks.
• Wide Operating Voltage Range: Functions reliably from 9V to 31.2V DC (or 9V to 32V DC), offering flexible power integration.
• Extreme Temperature Resilience: Operates efficiently in temperatures ranging from -25°C (-13°F) to +55°C (131°F), ensuring consistent performance in diverse climates.

Compatibility & Pairings:

• Seamlessly integrates with Raymarine Axiom displays, radars, sonar modules, and FLIR thermal cameras.
• Powers devices such as Raymarine CAM300 marine IP cameras and RMK-10 remote keypads.
• Supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router.
• Compatible with legacy SeaTalkHS networks using an appropriate adapter cable.
