Brand: Raymarine

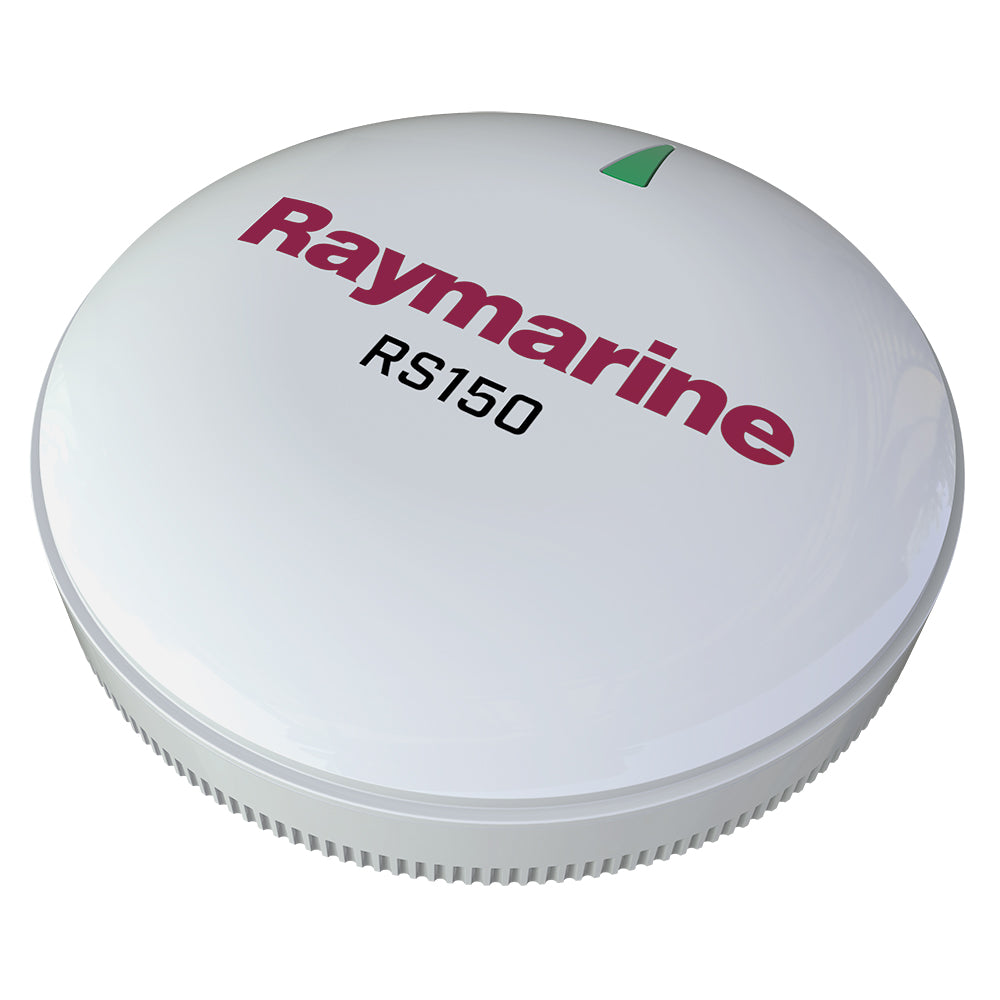

Raymarine RS150 GPS Sensor, 72-Channel GNSS Receiver, E70310
Raymarine RS150 GPS Sensor, 72-Channel GNSS Receiver, E70310
Sold out
About this product
The Raymarine RS150 is a remotely mounted 72-channel GPS and GNSS sensor for Raymarine navigation systems, with 10 Hz position updates and support for GPS, GLONASS, and satellite-based augmentation systems.
- 72-channel receiver with GPS and GLONASS positioning
- 10 Hz position updates
- SBAS support for WAAS in the United States, EGNOS in Europe, MSAS in Japan, and GAGAN in India
- SeaTalkng and NMEA 2000 compatible via a DeviceNet adapter cable
- 30 mA maximum power consumption; NMEA LEN = 1
- 9–16 V DC operating range, protected up to 32 V DC
- Operating temperature: -13 deg F to 131 deg F (-25 deg C to +55 deg C)
- Maximum relative humidity: 93%
- IPx6 waterproof rating
- Sensitivity: -163 dBm tracking; -147 dBm acquisition
- Position accuracy at 95%: less than 15 m; with SDGPS, less than 5 m
- Speed accuracy at 95%: less than 0.3 kt
- Cold-start time to first fix: less than 2 minutes, typically less than 45 seconds
- Hot-start time to first fix: less than 8 seconds; 72-hour hold-up battery supports hot starts
- WGS84 geodetic datum
- Designed for low-profile surface mounting or optional pole mounting
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-105250
- Model / MPN
- E70310
- UPC / GTIN
- 723193796917
- Package dimensions (H × W × L)
- 3" X 6" X 9"
- Package weight
- 1.8 lb
- Country of origin
- HUNGARY
Specifications
- Type
- Antennas
- Operating Voltage Range
- 9–16 V DC, protected up to 32 V DC
- Sensitivity
- -163 dBm tracking; -147 dBm acquisition
- Waterproof Rating
- IPx6
